Zebra 110XiIIIPlus – Barcode Label Printer – 609 dpi

Part Number: 116-851-00001
Model: 110XiIIIPlus
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Printer Type
Industrial
Print Resolution
609 dpi
Max Print Width
4.5 inch

Product Description:

  110XiIIIPlus RFID-Ready Printer (600 dpi, Applicator Interface Port 5V, 120VAC Cord - NA, 16MB SDRAM, ZPL II, XML, Clear Media Side Door and 3-Inch Media Supply Spindle)
Explore all Zebra 110XiIIIPlus Barcode Label Printers
Add to Quote
Zebra 116-851-00001 Barcode Label Printer
Zebra 116-851-00001 Barcode Label Printer
Zebra 116-851-00001 Barcode Label Printer
Zebra 116-851-00001 Barcode Label Printer
Zebra 116-851-00001 Barcode Label Printer Zebra 116-851-00001 Barcode Label Printer Zebra 116-851-00001 Barcode Label Printer

Full specifications (PDF)

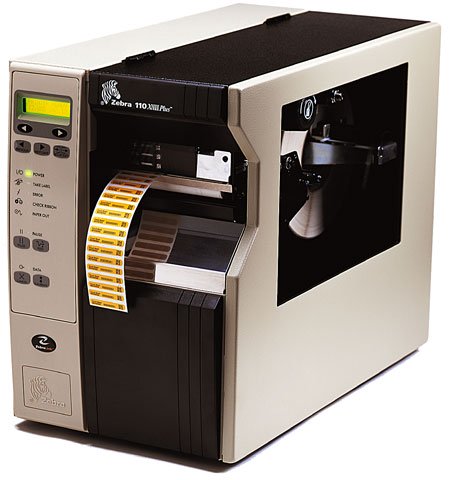

Zebra 110XiIIIPlus Barcode Label Printer Model Overview

With the new 110XiIIIPlus, you can step up to the renowned, non-stop reliability of Zebra's Xi printer family without a big leap in price. This new model with full four-inch print width to fit your printing application, be it 4"x 6" compliance shipping labels, or tiny, sharply detailed labels for small components or products.

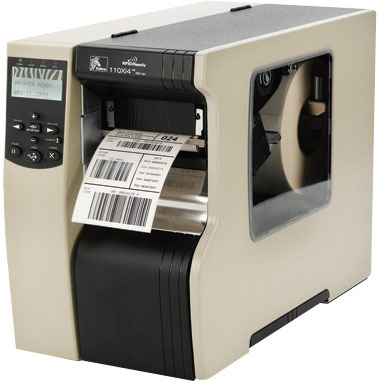

Zebra 116-851-00001 Barcode Label Printer Overview

The workhorse of the Xi product line, the 110Xi4 was built on the legacy of the Xi series of products. The 110Xi4 was developed to improve overall operational productivity and efficiency in a variety of environments.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
14 in/s
Maximum Print Resolution (dpi):
600
Maximum Print Width:
4"
Barcode Symbology Supported:
  • Code 11
  • Code 39
  • Code 93
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • UCC Case Codes
  • UPC-A
  • UPC-E
  • EAN-8
  • EAN-13
  • UPC 2 and 5 Digit Extension
  • EAN With 2 and 5 Digit Extension
  • Plessey
  • POSTNET
  • Standard 2 of 5
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Planet Code
  • Codabar
  • Codablock
  • PDF-417
  • Code 49
  • Data Matrix
  • Maxi Code
  • QR Code
  • TLC 39
  • Micro PDF
  • Aztec Code
  • RSS
  • GS1 DataBar
Application/Usage:
Desktop
Features:
  • Clear Media Side Door
  • Media Supply Spindle
  • Mirror Printing
Memory
Standard Memory:
16 MB
Memory Technology:
SDRAM
Flash Memory:
8 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Media Types & Handling
Media Type:
  • Black Mark
  • Continuous Label
  • Roll Fed
  • Die-cut Label
  • Fanfold
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Media Thickness:
12 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
4.50"
Maximum Label Length:
12.50 ft
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
  • ZPL II
  • XML
Power Description
Power Source:
AC Supply
Input Voltage:
110 V AC
Physical Characteristics
Height:
15.5"
Width:
10.3"
Depth:
20.4"
Weight (Approximate):
50.04 lb
Miscellaneous
Package Contents:
  • 110Xi4 Label Printer
  • North American Edition 120 VAC Power Cord
Cables Included:
AC
Platform Supported:
PC
Certifications & Standards:
  • BSMI
  • cTUVus
  • CCC
  • CE
  • C-Tick
  • EN55022 Class B
  • EN55024
  • EN61000-3-2,3
  • FCC Class B
  • GOST-R
  • ICES-003 Class B
  • IEC 60950-1 / EN60950
  • KCC
  • NOM
  • S Mark
  • STB
  • UkrSEPRO
  • VCCI
  • ZIK
  • EC 60950-1
  • EN 55022 Class B
  • EN 55024
  • EN 61000-3-2
  • EN 61000-3-3
Environmentally Friendly:
Yes
Environmental Certification:
China RoHS
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
