Zebra 116-804-00001 Barcode Label Printer

The Zebra 116-804-00001 Barcode Label Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Zebra 110Xi4 - Thermal Transfer Industrial Printer (600 dpi, Ethernet, USB, Serial (RS-232), and Parallel interfaces, 4" max print width, 16MB SDRAM, Clear Media Side Door & 3" Media Spindle, UK/European Power). Includes power supply. Cables sold separately. See accessories.
Print Resolution
609 dpi
  • Direct Thermal/Thermal Transfer Printer for maximum label/receipt printing usability and feasibility
  • 600 maximum print resolution (dpi) for better reliance and added usability
  • Monochrome print color capability for rich in detail, sharp, and clear printing results
  • Enjoy the optimal performance in today's on-demand labeling applications
  • Save time and money for your business by using one printer for all your employees
  • 4.50" maximum label width to easily accommodate your needs with added productivity
  • 12.50 ft maximum label length for dependable, desired results
  • Supports black mark media type for dependable, efficient results with maximum productivity
  • Direct Thermal/Thermal Transfer Printer with desktop application/usage provides reliable, feasible printing solution
  • Comes with 16 MB standard memory for timely printing with added reliability
Read More
Discontinued Need Assistance?
Add to Quote

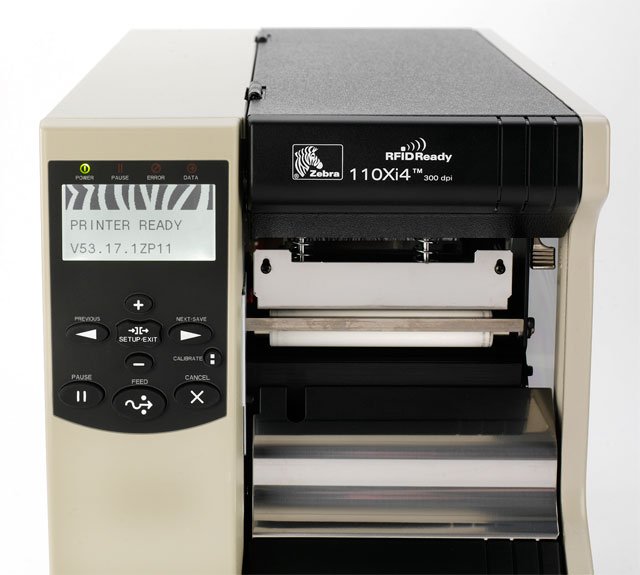

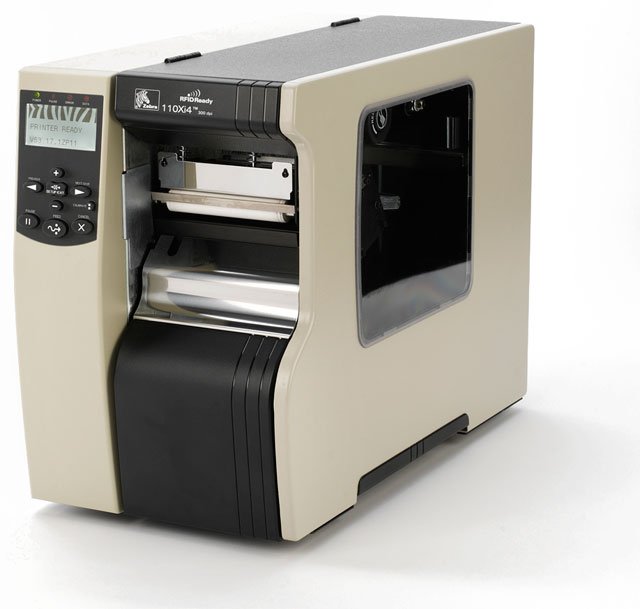

Zebra 110Xi4 Barcode Label Printer Model Overview
The Zebra 110Xi4 is the go to workhorse printer and is built on the legacy of the Xi series of products. With a 4.0" print width, the Zebra 110Xi4 was developed to improve overall operational productivity and efficiency in a variety of environments. These improvements include an increased print speeds up to 14"/356 mm per second for increased batch and print/apply productivity, a large, easy to use, multilingual LCD screen with content that is customizable to user needs, flexible connectivity options including simultaneous parallel/Ethernet with internal Ethernet included as standard, with intelegent low ribbon- and media-low alerts, you will know exaclty when printing supplies need to be replaced with LCD/e-mail alerts. The Zebra 110Xi4 is the printer you can rely on to print the you labels you need!
Zebra 116-804-00001 Barcode Label Printer Overview

Zebra's built-to-last Xi series printers are legendary for their rugged durability, consistently outstanding print quality, fast print speed, long life, and unparalleled reliability in demanding applications. These qualities translate into low total cost of ownership-making them a smart investment for organizations with high-volume, mission-critical or specialty labeling applications.

Xi4 printers build on this legacy to boost your operational productivity with up to 40 percent faster print speeds on select models, faster 10/100 Ethernet connection speeds, and enhanced early warning systems for reduced downtime. Other advanced and fexible features include a large, easy-to-read front panel for simple setup with optional customizable menu and support for a wider assortment of languages. Integration is easier with a variety of network connectivity options, while ZebraLink Solutions provide remote printer management capabilities.

Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
14 in/s
Maximum Print Resolution (dpi):
600
Maximum Print Width:
4"
Barcode Symbology Supported:
  • Code 11
  • Code 39
  • Code 93
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • UCC Case Codes
  • UPC-A
  • UPC-E
  • EAN-8
  • EAN-13
  • UPC 2 or 5 Digit Extension
  • EAN With 2 or 5 Digit Extension
  • Plessey
  • POSTNET
  • Standard 2 of 5
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Planet Code
  • Codabar
  • Codablock
  • PDF-417
  • Code 49
  • Data Matrix
  • Maxi Code
  • QR Code
  • TLC 39
  • Micro PDF-417
  • Aztec Code
  • RSS
  • GS1 DataBar
Real Time Clock:
Yes
Application/Usage:
Desktop
Features:
  • Clear Media Side Door
  • Media Supply Spindle
  • Mirror Printing
Memory
Standard Memory:
16 MB
Memory Technology:
SDRAM
Flash Memory:
8 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Media Types & Handling
Media Type:
  • Black Mark
  • Continuous Label
  • Roll Fed
  • Fanfold
  • Die-cut Label
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Media Thickness:
12 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
4.50"
Maximum Label Length:
12.50 ft
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
  • XML
  • ZPL II
Power Description
Power Source:
AC Supply
Physical Characteristics
Height:
15.5"
Width:
10.3"
Depth:
20.4"
Weight (Approximate):
50 lb
Miscellaneous
Platform Supported:
PC
Item Numbers
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra 116-804-00001 Barcode Label Printer is also known as ZEB-11680400001 or 116-804-00001.
