Zebra 116-801-00204 Barcode Label Printer

The Zebra 116-801-00204 Barcode Label Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Zebra 110Xi4 - Thermal Transfer Industrial Printer (600 dpi, Ethernet, USB, Serial (RS-232), and Parallel interfaces, 4" max print width, 16MB SDRAM, Rewinder and Peeler, Clear Bi-fold Media Side Door & 3" Media Spindle). Includes power supply. Cables sold separately. See accessories.
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Ethernet, Parallel, Serial (RS-232), USB
Print Resolution
609 dpi
Max Print Width
4.5 inch
  • Print methods: Thermal transfer or direct thermal
  • Full-function front panel and large, multilingual, back-lit LCD display with user-programmable password protection
  • Clear media side door allows easy monitoring of supplies usage without opening the printer systems
  • 32 bit 133 Mhz RISC processor
  • 64 MB on-board linear Flash memory
  • 16 MB SDRAM Flash memory
  • Internal real-time clock
  • Advanced label/media counters
  • Dual media sensors - transmissive and reflective, selectable through software or front panel
  • Auto calibration when printer is turned on or when printhead is closed using approximately two labels
Read More
Discontinued Need Assistance?
Add to Quote

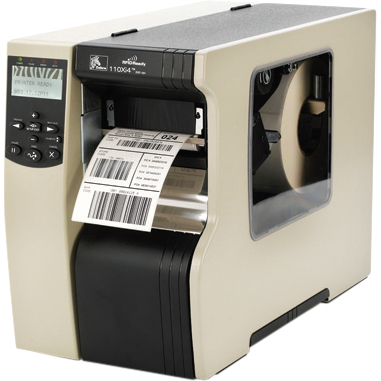

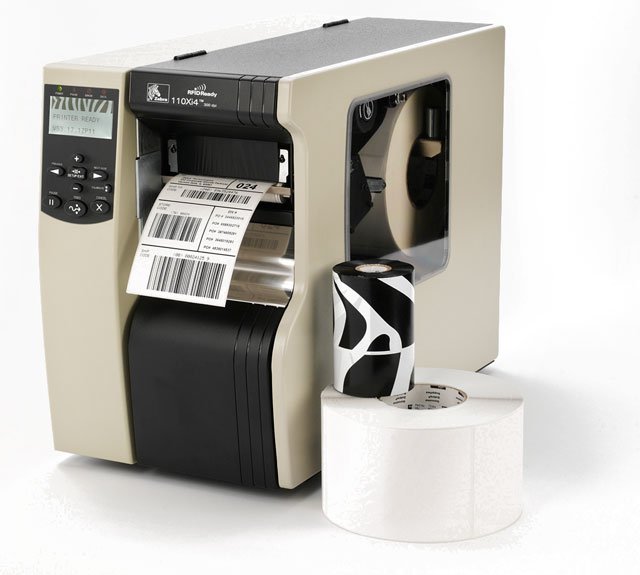

Zebra 110Xi4 Barcode Label Printer Model Overview
The Zebra 110Xi4 is the go to workhorse printer and is built on the legacy of the Xi series of products. With a 4.0" print width, the Zebra 110Xi4 was developed to improve overall operational productivity and efficiency in a variety of environments. These improvements include an increased print speeds up to 14"/356 mm per second for increased batch and print/apply productivity, a large, easy to use, multilingual LCD screen with content that is customizable to user needs, flexible connectivity options including simultaneous parallel/Ethernet with internal Ethernet included as standard, with intelegent low ribbon- and media-low alerts, you will know exaclty when printing supplies need to be replaced with LCD/e-mail alerts. The Zebra 110Xi4 is the printer you can rely on to print the you labels you need!
Zebra 116-801-00204 Barcode Label Printer Overview

The workhorse of the Xi product line, the 110Xi4 was built on the legacy of the Xi series of products. The 110Xi4 was developed to improve overall operational productivity and efficiency in a variety of environments. These improvements include:

  • Increased print speeds up to 14"/356 mm per second for increased batch and print/apply productivity
  • LCD content customizable to user needs
  • Large, easy to use, multilingual LCD screen
  • Flexible connectivity including simultaneous parallel/Ethernet with internal Ethernet included as standard in the product
  • Advanced ribbon- and media-low LCD/e-mail alerts
  • Intelligent printhead system
  • RFID Ready

The 110Xi4 printer provides a 4.0" (102 mm) print width and with 203-, 300-, or 600-dpi (8, 12, or 23.5 dots per mm) print resolution.

The 110Xi4 printer is ideal for a variety of applications, including top-side and bottom-side circuit board labeling, product identification labels, serial plate labels, product labels, surgical tools and equipment, diagnostic kits, vials and slides, and others.

Built RFID Ready (upgrade kit for UHF EPC Gen 2, Class 1 compliant RFID enablement coming soon), the 110Xi4 allows you to upgrade to RFID technology in the future, providing solid investment protection.

Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
14 in/s
Maximum Print Resolution (dpi):
600
Maximum Print Width:
4"
Barcode Symbology Supported:
  • Code 11
  • Code 39
  • Code 93
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • UCC Case Codes
  • EAN-13
  • EAN-8
  • UPC-A
  • UPC-E
  • EAN With 2 or 5 Digit Extension
  • UPC 2 or 5 Digit Extension
  • Standard 2 of 5
  • Plessey
  • POSTNET
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Planet Code
  • Codabar
  • Codablock
  • PDF-417
  • Code 49
  • Data Matrix
  • Maxi Code
  • QR Code
  • TLC 39
  • Micro PDF
  • Micro PDF-417
  • Aztec Code
  • RSS
  • GS1 DataBar
Peel Facility:
Yes
Real Time Clock:
Yes
Rewinder:
Yes
Application/Usage:
Desktop
Features:
  • Clear Bi-fold Media Side Door
  • Media Supply Spindle
  • Auto-calibration
  • Element Energy Equalizer
  • Mirror Printing
Memory
Standard Memory:
16 MB
Memory Technology:
SDRAM
Flash Memory:
8 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Media Types & Handling
Media Type:
  • Black Mark
  • Continuous Label
  • Die-cut Label
  • Fanfold
  • Roll Fed
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Media Thickness:
12 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
4.50"
Maximum Label Length:
12.50 ft
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
  • XML
  • ZPL II
Power Description
Power Source:
AC Supply
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
15.5"
Width:
10.3"
Depth:
20.4"
Weight (Approximate):
50 lb
Miscellaneous
Package Contents:
  • 110Xi4 Label Printer
  • User's Guide
  • Software & Driver CD
  • North American Edition, 120 VAC Power Cord
Cables Included:
AC
Platform Supported:
PC
Certifications & Standards:
  • Unicode
  • BSMI
  • cTUVus
  • CCC
  • CE
  • C-Tick
  • EN55022 Class B
  • EN55024
  • EN61000-3-2,3
  • FCC Class B
  • GOST-R
  • ICES-003 Class B
  • IEC 60950-1
  • EN60950
  • KCC
  • NOM
  • STB
  • UkrSEPRO
  • VCCI
  • ZIK
  • S Mark
Environmentally Friendly:
Yes
Environmental Certification:
China RoHS
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0783555113035
UPC: 783555113035
EAN: 0783555113035
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra 116-801-00204 Barcode Label Printer is also known as ZEB-11680100204 or 116-801-00204.
