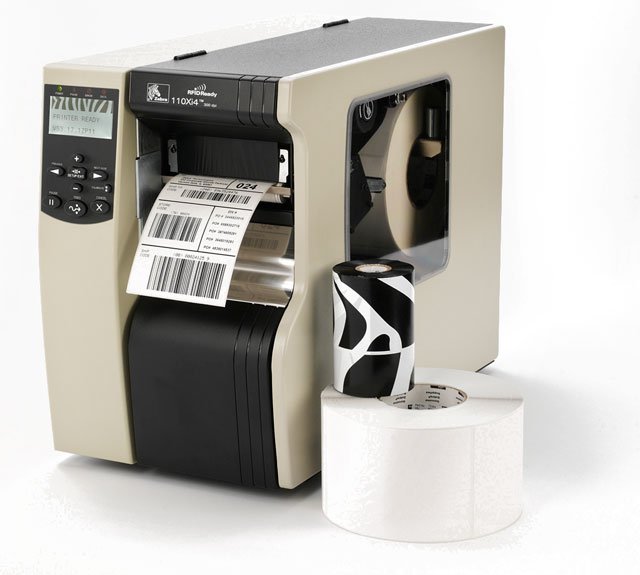

Zebra 116-801-00101 Barcode Label Printer

The Zebra 116-801-00101 Barcode Label Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Zebra 110Xi4 - Thermal Transfer Industrial Printer (600 dpi, Ethernet, USB, Serial (RS-232), and Parallel interfaces, 4" max print width, 16MB SDRAM, Cutter, Clear Media Side Door & 3" Media Spindle). Includes power supply. Cables sold separately. See accessories.

Printer Type

Industrial

Printing Technology

Thermal Transfer

Interface Options

Ethernet, Parallel, Serial (RS-232), USB

Print Resolution

609 dpi

Max Print Width

4.5 inch

Print methods: Thermal transfer or direct thermal
Full-function front panel and large, multilingual, back-lit LCD display with user-programmable password protection
Clear media side door allows easy monitoring of supplies usage without opening the printer systems
32 bit 133 Mhz RISC processor
64 MB on-board linear Flash memory
16 MB SDRAM Flash memory
Internal real-time clock
Advanced label/media counters
Dual media sensors - transmissive and reflective, selectable through software or front panel
Auto calibration when printer is turned on or when printhead is closed using approximately two labels

Need a different version? See all Zebra 110Xi4 Barcode Label Printers

Discontinued Need Assistance?

Add to Quote

Zebra 116-801-00101 Barcode Label Printer

Overview

Full specifications (PDF)

Zebra 110Xi4 Barcode Label Printer Model Overview

The Zebra 110Xi4 is the go to workhorse printer and is built on the legacy of the Xi series of products. With a 4.0" print width, the Zebra 110Xi4 was developed to improve overall operational productivity and efficiency in a variety of environments. These improvements include an increased print speeds up to 14"/356 mm per second for increased batch and print/apply productivity, a large, easy to use, multilingual LCD screen with content that is customizable to user needs, flexible connectivity options including simultaneous parallel/Ethernet with internal Ethernet included as standard, with intelegent low ribbon- and media-low alerts, you will know exaclty when printing supplies need to be replaced with LCD/e-mail alerts. The Zebra 110Xi4 is the printer you can rely on to print the you labels you need!

Zebra 116-801-00101 Barcode Label Printer Overview

The workhorse of the Xi product line, the 110Xi4 was built on the legacy of the Xi series of products. The 110Xi4 was developed to improve overall operational productivity and efficiency in a variety of environments.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

14 in/s

Maximum Print Resolution (dpi):

600

Maximum Print Width:

4.02"

Barcode Symbology Supported:

Code 11
Code 39
Code 93
Code 128-A
Code 128-B
Code 128-C
UCC Case Codes
UPC-A
UPC-E
EAN-8
EAN-13
UPC 2 and 5 Digit Extension
EAN With 2 and 5 Digit Extension
Plessey
POSTNET
Standard 2 of 5
Industrial 2 of 5
Interleaved 2 of 5
LOGMARS
MSI
Planet Code
Codabar
Codablock
PDF-417
Code 49
Data Matrix
Maxi Code
QR Code
TLC 39
Micro PDF
Aztec Code
RSS
GS1 DataBar

Application/Usage:

Desktop

Features:

RFID Ready
Clear Media Side Door
Media Supply Spindle

Memory

Standard Memory:

16 MB

Memory Technology:

SDRAM

Flash Memory:

8 MB

Interfaces/Ports

Serial Port:

Yes

USB:

Yes

Network & Communication

Ethernet:

Yes

Ethernet Technology:

Fast Ethernet

RFID:

Yes

Display & Graphics

Display Screen:

Yes

Display Screen Type:

LCD

Cutter

Cutter:

Yes

Media Types & Handling

Media Type:

Black Mark
Continuous Label
Die-cut Label
Fanfold
Roll Fed

Media Sensor:

Reflective Media Sensor
Transmissive Media Sensor

Media Thickness:

12 mil

Maximum Roll Diameter:

Maximum Label Width:

4.50"

Maximum Label Length:

12.50 ft

Label Core Size:

Ribbon Core Size:

Fonts & Emulation

Language Emulation:

XML
ZPL II

Power Description

Power Source:

AC Supply

Input Voltage:

110 V AC

Physical Characteristics

Height:

15.5"

Width:

10.3"

Depth:

20.4"

Weight (Approximate):

50 lb

Miscellaneous

Package Contents:

110Xi4 Label Printer
North American Edition 120 VAC Power Cord

Cables Included:

Platform Supported:

Certifications & Standards:

BSMI
cTUVus
CCC
CE
C-Tick
EN55022 Class B
EN55024
EN61000-3-2,3
FCC Class B
GOST-R
ICES-003 Class B
IEC 60950-1 / EN60950
KCC
NOM
S Mark
STB
UkrSEPRO
VCCI
ZIK
EN 55022 Class B
EN 55024
EN 61000-3-2
EN 61000-3-3Media

Warranty

Limited Warranty:

1 Year

Item Numbers

GTIN: 0602111967168

UPC: 602111967168

EAN: 0602111967168

UNSPSC: 43212108

Q&A

Questions? Get help from a
Printer Expert!

The Zebra 116-801-00101 Barcode Label Printer is also known as ZEB-11680100101 or 116-801-00101.
