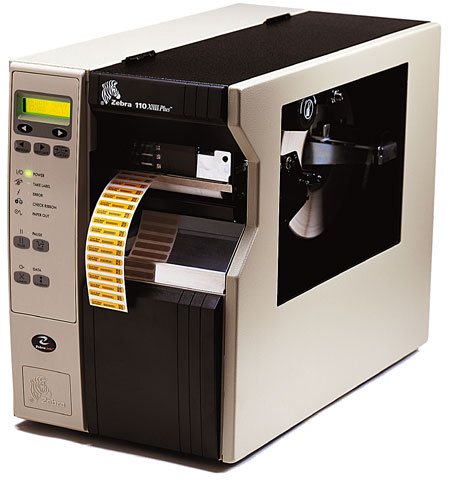

Zebra 110XiIIIPlus – Barcode Label Printer – 609 dpi – Thermal Transfer

Part Number: 116-7A1-00001
Model: 110XiIIIPlus
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Ethernet, Serial (RS-232), USB
Print Resolution
609 dpi

Product Description:

  Thermal transfer & direct thermal, 600 dpi, 3.2 inch Print Width, 4 ips, Serial, USB, ZebraNet 10/100 PrintServer interfaces, 16MB SDRAM, 120VAC US Power cord, Clear Media Side Door and Media Supply Spindle. Includes US power cord. Order cables separately, see accessories.
Explore all Zebra 110XiIIIPlus Barcode Label Printers
Add to Quote
Zebra 116-7A1-00001 Barcode Label Printer
Zebra 116-7A1-00001 Barcode Label Printer
Zebra 116-7A1-00001 Barcode Label Printer
Zebra 116-7A1-00001 Barcode Label Printer Zebra 116-7A1-00001 Barcode Label Printer

Full specifications (PDF)

Zebra 110XiIIIPlus Barcode Label Printer Model Overview

With the new 110XiIIIPlus, you can step up to the renowned, non-stop reliability of Zebra's Xi printer family without a big leap in price. This new model with full four-inch print width to fit your printing application, be it 4"x 6" compliance shipping labels, or tiny, sharply detailed labels for small components or products.
Zebra 116-7A1-00001 Barcode Label Printer Overview

The entry-level printer in the High Performance line, 110XiIIIPlus. This hardworking printer is the one to call on for heavy-duty, industrial operations 110XiIIIPlus. The 110XiIIIPlus printer is ideal for a variety of applications, including top-side and bottom-side circuit board labeling, product identification labels, serial plate labels, product labels, surgical tools and equipment, diagnostic kits, and vials and slides.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Maximum Mono Print Speed:
4 in/s
Maximum Print Resolution (dpi):
600
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Codabar
  • Code 11
  • Code 39
  • Code 93
  • EAN-13
  • EAN-8
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Planet Code
  • Plessey
  • POSTNET
  • Standard 2 of 5
  • UPC 2 or 5 Digit Extension
  • EAN With 2 or 5 Digit Extension
  • UPC-A
  • UPC-E
  • ISBT-128
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • UCC Case Codes
  • Codablock
  • Code 49
  • Data Matrix
  • Maxi Code
  • PDF-417
  • QR Code
  • RSS
  • TLC 39
  • Micro PDF
  • Aztec Code
Memory
Standard Memory:
16 MB
Memory Technology:
SDRAM
Flash Memory:
4 MB
Interfaces/Ports
Parallel Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Media Types & Handling
Media Type:
  • Continuous Form
  • Die-cut Label
  • Black Mark
Maximum Roll Diameter:
8"
Maximum Label Width:
4.50"
Label Core Size:
3"
Ribbon Core Size:
1"
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
15.5"
Width:
10.4"
Depth:
19.5"
Miscellaneous
Package Contents:
  • 110XiIII Plus Label Printer
  • Power Cord North America
  • User's Guide
Cables Included:
AC
Additional Information:
  • Unicode -Compliant
  • 300 unique darkness settings
  • Advanced media/ribbon counter
  • North American Edition, 120 VAC Cord
  • Transmissive and reflective media sensors
  • Clear Media Side Door & 3-inch Media Supply Spindle
  • Enhanced Alert notification -monitors printhead condition
  • Multi-level Element Energy Equalizer (E3) for superior print quality
Platform Supported:
PC
Certifications & Standards:
  • BSMI
  • CCC
  • C-Tick
  • cUL
  • EN55022 Class B
  • EN55024
  • EN61000-3-2,3
  • FCC Class B
  • GOST-R
  • ICES-003 Class B
  • IEC 60950-1 / EN60950
  • MIC
  • NOM
  • S Mark
  • VCCI
  • ZIK
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
