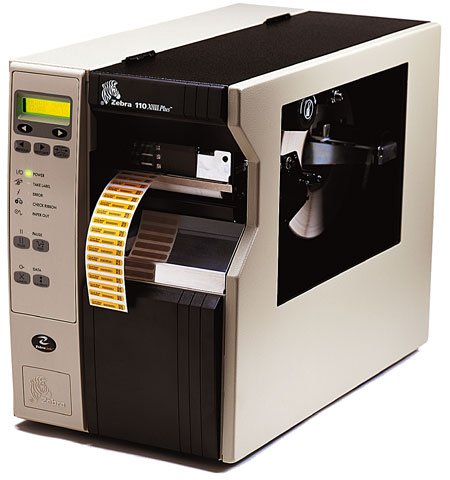

Zebra 110XiIIIPlus – Barcode Label Printer – 609 dpi – Thermal Transfer

Part Number: 116-701-00201
Model: 110XiIIIPlus
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Parallel, Serial (RS-232), USB
Print Resolution
609 dpi

Product Description:

  Thermal transfer & direct thermal, 600 dpi, 4 ips, 3.2" print width, Serial, Parallel & USB 2.0 interfaces, Rewind, 16MB SDRAM, & 4MB Flash. Includes US power cord, Clear Media Door and Media Supply Spindle. Order cables separately, see accessories.
Explore all Zebra 110XiIIIPlus Barcode Label Printers
Add to Quote
Zebra 116-701-00201 Barcode Label Printer
Zebra 116-701-00201 Barcode Label Printer
Zebra 116-701-00201 Barcode Label Printer
Zebra 116-701-00201 Barcode Label Printer Zebra 116-701-00201 Barcode Label Printer

Full specifications (PDF)

Zebra 110XiIIIPlus Barcode Label Printer Model Overview

With the new 110XiIIIPlus, you can step up to the renowned, non-stop reliability of Zebra's Xi printer family without a big leap in price. This new model with full four-inch print width to fit your printing application, be it 4"x 6" compliance shipping labels, or tiny, sharply detailed labels for small components or products.
Zebra 116-701-00201 Barcode Label Printer Overview

The entry-level printer in the high performance line, Zebra's 110XiIIIPlus is a true performance printer. This hardworking printer is the one to call on for heavy-duty, industrial operations. The 110XiIIIPlus printer is ideal for a variety of applications, including top-side and bottom-side circuit board labeling, product identification labels, serial plate labels, product labels, surgical tools and equipment, diagnostic kits, and vials and slides.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
4 in/s
Maximum Print Resolution (dpi):
600
Maximum Print Width:
3.20"
Barcode Symbology Supported:
  • Codabar
  • Code 11
  • Code 39
  • Code 93
  • EAN-13
  • EAN-8
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Planet Code
  • Plessey
  • POSTNET
  • Standard 2 of 5
  • EAN With 2 or 5 Digit Extension
  • UPC-A
  • UPC-E
  • ISBT-128
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • UPC 2 or 5 Digit Extension
  • Codablock
  • Code 49
  • Data Matrix
  • Maxi Code
  • PDF-417
  • QR Code
  • RSS
  • TLC 39
  • Micro PDF
  • Aztec Code
Rewinder:
Yes
Print Technology:
Direct Thermal /Thermal Transfer
Memory
Standard Memory:
16 MB
Memory Technology:
SDRAM
Flash Memory:
4 MB
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Media Types & Handling
Media Type:
  • Continuous Form
  • Die-cut Label
  • Black Mark
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Media Thickness:
120 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
4.50"
Maximum Label Length:
39"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
ZPL II
Software
Software Included:
  • Ztools Utilities
  • BAR-ONE Lite/Platinum demo
  • JefForm Central ERP Solution
  • Windows3.1/95/98/2000/NT Drivers
  • ZebraNet WebView and Alert Utilities
  • Adobe Acrobat
  • Direct Zebra Web Access
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
15.5"
Width:
10.4"
Depth:
19.5"
Miscellaneous
Package Contents:
  • 110XiIIIPlus Label Printer
  • Xi IIIPlus User's Guide
  • Utility & Driver CD
  • ZebraNet Connectivity CD
  • North American Edition Power Cord
Cables Included:
AC
Additional Information:
  • Clear Media Side Door & Media Supply Spindle
  • IBM Code Page 850 International Characters
  • Transmissive and reflective media sensors
  • Support user-defined fonts and graphics including custom logos
  • ZPL II drawing commands including boxes, circles, and diagonal lines
  • Advanced media/ribbon counter
  • Enhanced Alert notification monitors printhead condition
  • 300 unique darkness settings
  • PCMCIA socket
  • Smooth scalable font (CG Triumvirate Bold Condensed) is expandable dot-by-dot, height and width independent.
Platform Supported:
PC
Certifications & Standards:
  • BSMI
  • CCC
  • MIC
  • C-Tick
  • cUL
  • EN55022 Class B
  • EN55024
  • EN61000-3-2,3
  • FCC Class B
  • GOST-R
  • ICES-003 Class B
  • IEC 60950-1 / EN60950
  • NOM
  • S Mark
  • VCCI
  • ZIK
  • R.O.C. CNS 13438
  • Australia AS/NZS 3548
  • Argentina 92/98 Phase 3
  • Bi-National UL 60950 Third Edition/CSA /CAN/CSA-C22.2 No. 60950-00 Third Edition
Warranty
Limited Warranty:
1 Year
