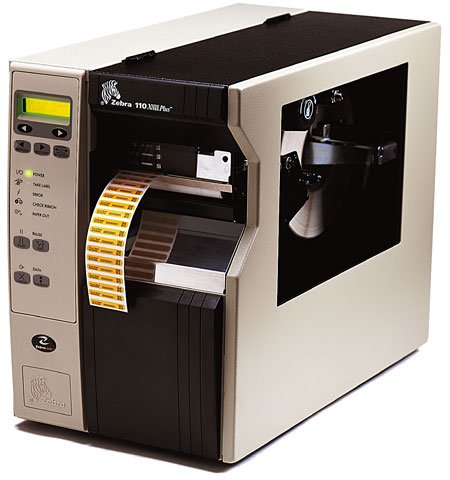

Zebra 116-701-00001 Barcode Label Printer

The Zebra 116-701-00001 Barcode Label Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Zebra 110XiIIIPlus - Thermal transfer & direct thermal, 600 dpi, 4 ips, 3.2" print width, parallel, serial & USB interfaces, 16MB SDRAM, & 4MB Flash. Includes ZebraLink & US power cord. Order cables separately, see accessories.
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Parallel, Serial (RS-232), USB
Print Resolution
609 dpi
Max Print Width
4.5 inch
Ribbon Core Size
1 inch
  • Direct Thermal/Thermal Transfer Printer provides high-quality label/receipt printing with maximum dependability
  • 600 maximum print resolution (dpi) offers great dependability with added efficiency
  • The printer is capable of printing sharp and detailed monochrome documents quickly
  • Delivers high-speed, hassle-free labeling solution for your business needs
  • Share the printer easily and efficiently with various other systems with the help of built-in Ethernet port
  • 4.50" maximum label width to easily accommodate your needs with added productivity
  • 39" maximum label length to easily accommodate your needs with added productivity
  • Supports continuous form media type for better reliance and maximum usability
  • Comes with 16 MB standard memory to ensure maximum efficiency with great quality printing results
  • LCD display is power-efficient with minimal heat production to ensure a prolonged, convenient usage
Read More

Need a different version? See all Zebra 110XiIIIPlus Barcode Label Printers

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Zebra 116-701-00001 Barcode Label Printer
Zebra 116-701-00001 Barcode Label Printer Zebra 116-701-00001 Barcode Label Printer Zebra 116-701-00001 Barcode Label Printer
Zebra 116-701-00001 Barcode Label Printer
Zebra 116-701-00001 Barcode Label Printer

Full specifications (PDF)
Zebra 110XiIIIPlus Barcode Label Printer Model Overview
With the new 110XiIIIPlus, you can step up to the renowned, non-stop reliability of Zebra's Xi printer family without a big leap in price. This new model with full four-inch print width to fit your printing application, be it 4"x 6" compliance shipping labels, or tiny, sharply detailed labels for small components or products.
Zebra 116-701-00001 Barcode Label Printer Overview

Providing superior performance, longevity, and solid value, the 110XiIIIPlus offers rugged durability, dependability, and unparalleled reliability in high-volume, mission-critical and specialty labeling solutions. Insuring investment protection are more standard features and total options than competitive printers, superquick processors for fast throughput and processing; and plenty of memory for more label formats, graphics, fonts, and data. It s easy to see why the 110XiIIIPlus printer takes high performance to an all-new level.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
4 in/s
Maximum Print Resolution (dpi):
600
Maximum Print Width:
3.20"
Barcode Symbology Supported:
  • Codabar
  • Code 11
  • Code 39
  • Code 93
  • EAN-13
  • EAN-8
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Planet Code
  • Plessey
  • POSTNET
  • Standard 2 of 5
  • EAN With 2 or 5 Digit Extension
  • UPC-A
  • UPC-E
  • ISBT-128
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • UPC 2 or 5 Digit Extension
  • Codablock
  • Code 49
  • Data Matrix
  • Maxi Code
  • PDF-417
  • QR Code
  • RSS
  • TLC 39
  • Micro PDF
Memory
Standard Memory:
16 MB
Memory Technology:
SDRAM
Flash Memory:
4 MB
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Media Types & Handling
Media Type:
  • Continuous Form
  • Die-cut Label
  • Black Mark
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Media Thickness:
120 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
4.50"
Maximum Label Length:
39"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
ZPL II
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Frequency:
62 Hz
Physical Characteristics
Height:
15.5"
Width:
10.4"
Depth:
19.5"
Miscellaneous
Package Contents:
  • 110XiIIIPlus Label Printer
  • Xi IIIPlus User's Guide
  • Utility & Driver CD
  • ZebraNet Connectivity CD
  • North American Edition Power Cord
Cables Included:
AC
Additional Information:
  • Clear Media Door and Spindle
  • IBM Code Page 850 International Characters
  • Transmissive and reflective media sensors
  • Support user-defined fonts and graphics including custom logos
  • ZPL II drawing commands including boxes, circles, and diagonal lines
  • Advanced media/ribbon counter
  • Enhanced Alert notification monitors printhead condition
  • 300 unique darkness settings
  • PCMCIA socket
  • Smooth scalable font (CG Triumvirate Bold Condensed) is expandable dot-by-dot, height and width independent.
Platform Supported:
PC
Certifications & Standards:
  • FCC Class B
  • EN55024: 1998
  • EN55022: 1998 Class B
  • Argentina 92/98 Phase 3
  • Canadian ICES-003, Class B
  • EN61000-3-2,3 W/amendment A12
  • Australia AS/NZS 3548; R.O.C. CNS 13438
  • IEC 950/EN60950: 1992 W/amendments 1 thru 4 (CB Scheme)
  • Bi-National UL 60950 3rd edition/CSA CAN/CSA-C22.2 No. 60950-00 Third Edition
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra 116-701-00001 Barcode Label Printer is also known as ZEB-11670100001 or 116-701-00001.
