Zebra 113-8K1-00000 Barcode Label Printer

A newer version of this item is available.
It is replaced by the Zebra ZT61043-T01A100Z Barcode Label Printer.

Zebra 110Xi4 - 300DPI, Wireless+, 10/100,ZEBRANET B/G

Printer Type

Industrial

Print Resolution

300 dpi

Print methods: Thermal transfer or direct thermal

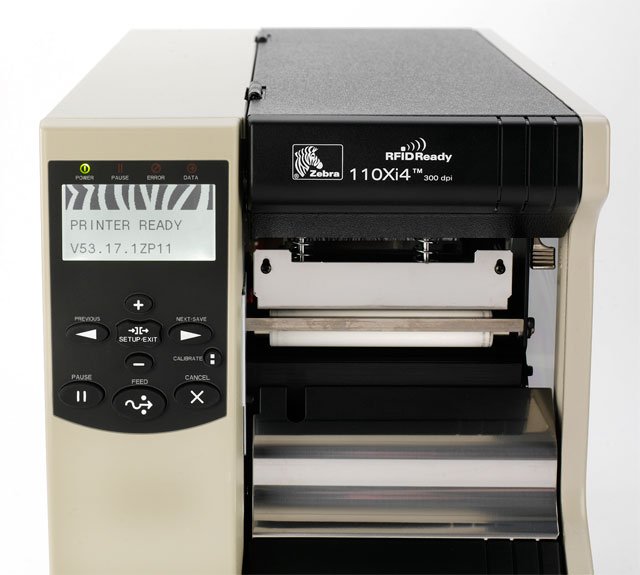

Full-function front panel and large, multilingual, back-lit LCD display with user-programmable password protection
Clear media side door allows easy monitoring of supplies usage without opening the printer systems
32 bit 133 Mhz RISC processor
64 MB on-board linear Flash memory
16 MB SDRAM Flash memory
Internal real-time clock
Advanced label/media counters
Dual media sensors - transmissive and reflective, selectable through software or front panel
Auto calibration when printer is turned on or when printhead is closed using approximately two labels

Need a different version? See all Zebra 110Xi4 Barcode Label Printers

Discontinued See Replacement

Add to Quote

Zebra 113-8K1-00000 Barcode Label Printer

Overview

Full specifications (PDF)

Zebra 110Xi4 Barcode Label Printer Model Overview

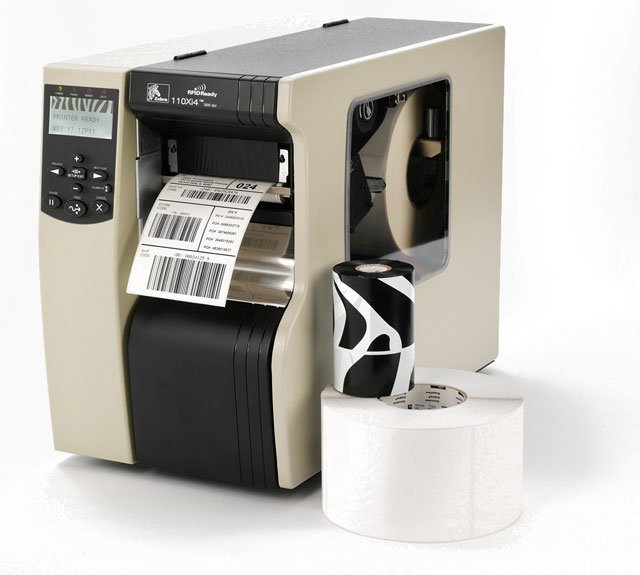

The Zebra 110Xi4 is the go to workhorse printer and is built on the legacy of the Xi series of products. With a 4.0" print width, the Zebra 110Xi4 was developed to improve overall operational productivity and efficiency in a variety of environments. These improvements include an increased print speeds up to 14"/356 mm per second for increased batch and print/apply productivity, a large, easy to use, multilingual LCD screen with content that is customizable to user needs, flexible connectivity options including simultaneous parallel/Ethernet with internal Ethernet included as standard, with intelegent low ribbon- and media-low alerts, you will know exaclty when printing supplies need to be replaced with LCD/e-mail alerts. The Zebra 110Xi4 is the printer you can rely on to print the you labels you need!

Zebra 113-8K1-00000 Barcode Label Printer Overview

The workhorse of the Xi product line, the 110Xi4 was built on the legacy of the Xi series of products. The 110Xi4 was developed to improve overall operational productivity and efficiency in a variety of environments.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

14 in/s

Maximum Print Resolution (dpi):

300

Maximum Print Width:

Barcode Symbology Supported:

Code 11
Code 39
Code 93
Code 128-C
Code 128-A
Code 128-B
Code 2 of 5
UCC Case Codes
UPC-A
UPC-E
EAN-8
EAN-13
UPC 2 or 5 Digit Extension
EAN With 2 or 5 Digit Extension
Plessey
POSTNET
Standard 2 of 5
Industrial 2 of 5
Interleaved 2 of 5
LOGMARS
MSI
Planet Code
Codablock
PDF-417
Code 49
Data Matrix
Maxi Code
QR Code
TLC 39
Micro PDF
Aztec Code
RSS
GS1 DataBar

Real Time Clock:

Yes

Application/Usage:

Desktop

Features:

Clear Media Side Door
Mirror Printing

Memory

Standard Memory:

16 MB

Memory Technology:

SDRAM

Flash Memory:

8 MB

Interfaces/Ports

Parallel Port:

Yes

Serial Port:

Yes

USB:

Yes

Network & Communication

Ethernet:

Yes

Ethernet Technology:

Fast Ethernet

Wireless LAN:

Yes

Wireless LAN Standard:

IEEE 802.11g

Display & Graphics

Display Screen:

Yes

Display Screen Type:

LCD

Media Types & Handling

Media Type:

Black Mark
Continuous Label
Roll Fed
Die-cut Label
Fanfold

Media Sensor:

Transmissive Media Sensor
Reflective Media Sensor

Media Thickness:

12 mil

Maximum Roll Diameter:

Maximum Label Width:

4.50"

Maximum Label Length:

12.50 ft

Label Core Size:

Ribbon Core Size:

Fonts & Emulation

Language Emulation:

ZPL II
XML

Power Description

Power Source:

AC Supply

Input Voltage:

110 V AC

Physical Characteristics

Height:

15.5"

Width:

10.3"

Depth:

20.4"

Weight (Approximate):

50 lb

Miscellaneous

Package Contents:

110Xi4 Label Printer
User Guide
North American Edition 120 VAC Power Cord
Radio Card
Software and Driver CD

Cables Included:

Platform Supported:

Certifications & Standards:

Unicode
BSMI
cTUVus
CCC
CE
C-Tick
EN55022 Class B
EN55024
EN61000-3-2,3
FCC Class B
GOST-R
ICES-003 Class B
IEC 60950-1 / EN60950
KCC
NOM
S Mark
STB
UkrSEPRO
VCCI
ZIK
IEC 60950-1
EN 55022 Class B
EN 55024
EN 61000-3-2
EN 61000-3-3

Environmentally Friendly:

Yes

Environmental Certification:

China RoHS

Warranty

Limited Warranty:

1 Year

Item Numbers

GTIN: 0783555142677, 0868014969511

UPC: 783555142677, 868014969511

EAN: 0783555142677, 0868014969511

UNSPSC: 43212108

Q&A

Questions? Get help from a
Printer Expert!

The Zebra 113-8K1-00000 Barcode Label Printer is also known as ZEB-1138K100000 or 113-8K1-00000.
