Zebra 110Xi4 – Barcode Label Printer – 203 dpi – Thermal Transfer

Part Number: 112-801-00100
Model: 110Xi4
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Ethernet, Parallel, Serial (RS-232), USB
Print Resolution
203 dpi

Product Description:

  Direct Thermal/Thermal Transfer printing, RFID ready, 203 dpi, 4" print width, Ethernet/USB/RS-232/Parallel interfaces, Cutter, Catch Tray. Includes US power cord. Interface cables sold separately.
Explore all Zebra 110Xi4 Barcode Label Printers
Add to Quote
Zebra 112-801-00100 Barcode Label Printer
Zebra 112-801-00100 Barcode Label Printer
Zebra 112-801-00100 Barcode Label Printer
Zebra 112-801-00100 Barcode Label Printer
Zebra 112-801-00100 Barcode Label Printer
Zebra 112-801-00100 Barcode Label Printer
Zebra 112-801-00100 Barcode Label Printer Zebra 112-801-00100 Barcode Label Printer Zebra 112-801-00100 Barcode Label Printer Zebra 112-801-00100 Barcode Label Printer Zebra 112-801-00100 Barcode Label Printer

Full specifications (PDF)

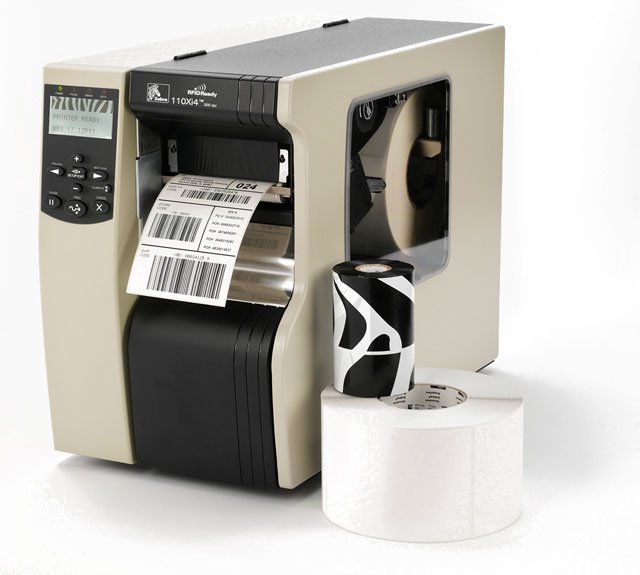

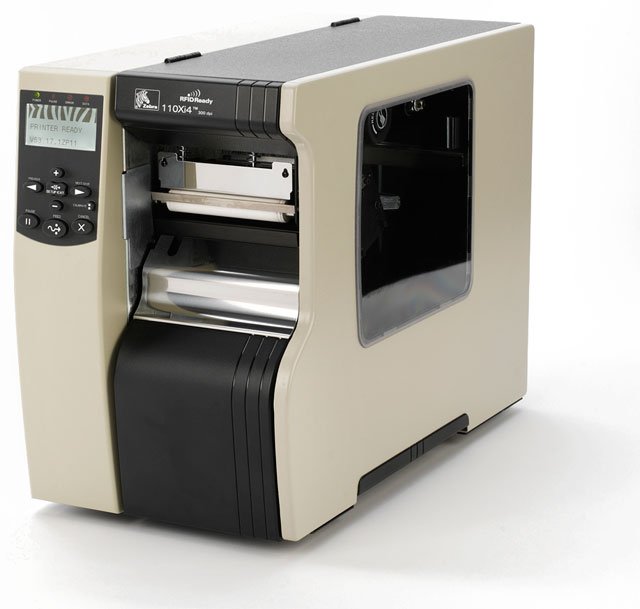

Zebra 110Xi4 Barcode Label Printer Model Overview

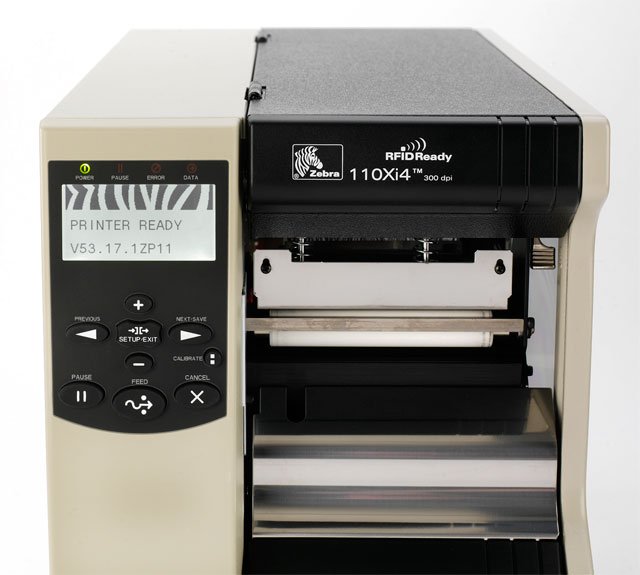

The Zebra 110Xi4 is the go to workhorse printer and is built on the legacy of the Xi series of products. With a 4.0" print width, the Zebra 110Xi4 was developed to improve overall operational productivity and efficiency in a variety of environments. These improvements include an increased print speeds up to 14"/356 mm per second for increased batch and print/apply productivity, a large, easy to use, multilingual LCD screen with content that is customizable to user needs, flexible connectivity options including simultaneous parallel/Ethernet with internal Ethernet included as standard, with intelegent low ribbon- and media-low alerts, you will know exaclty when printing supplies need to be replaced with LCD/e-mail alerts. The Zebra 110Xi4 is the printer you can rely on to print the you labels you need!
Zebra 112-801-00100 Barcode Label Printer Overview

The workhorse of the Xi product line, the 110Xi4 was built on the legacy of the Xi series of products. The 110Xi4 was developed to improve overall operational productivity and efficiency in a variety of environments. The 110Xi4 printer is ideal for a variety of applications, including top side and bottom side circuit board labeling, product identification labels, serial plate labels, product labels, surgical tools and equipment, diagnostic kits, vials and slides and others.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
14 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4"
Barcode Symbology Supported:
  • Code 11
  • Code 39
  • Code 93
  • Code 128
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • Code 128 UCC
  • UPC-A
  • UPC-E
  • EAN-8
  • EAN-13
  • UPC 2 or 5 Digit Extension
  • EAN With 2 or 5 Digit Extension
  • Plessey
  • POSTNET
  • Standard 2 of 5
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Planet Code
  • Codabar
  • Codablock
  • PDF-417
  • Code 49
  • Data Matrix
  • Maxi Code
  • QR Code
  • TLC 39
  • Micro PDF
  • Aztec Code
  • RSS
  • GS1 DataBar
Features:
  • RFID Ready
  • LCD Display
Memory
Standard Memory:
16 MB
Memory Technology:
SDRAM
Flash Memory:
8 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
RFID:
Yes
Cutter
Cutter:
Yes
Cutting Method:
Automatic
Media Types & Handling
Media Type:
  • Black Mark
  • Continuous Form
  • Roll Fed
  • Die-cut Label
  • Fanfold
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Media Thickness:
12 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
4.50"
Maximum Label Length:
12.50 ft
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
  • ZPL II
  • XML
  • ZPL
Power Description
Input Voltage:
110 V AC
Physical Characteristics
Height:
15.5"
Width:
10.3"
Depth:
20.4"
Miscellaneous
Package Contents:
  • 110Xi4 RFID Thermal Label Printer
  • Power Cord
  • Xi4 User's Guide
  • CD (Includes: Ztools Utilities, ZPL II Programming Guide, Zebra Designer Software and Universal Windows Printer Driver)
Cables Included:
AC
Additional Information:
  • Unicode Compliant
  • Intelligent printhead
  • Auto calibration
  • Cutter with Catch Tray
  • Clear Media Side Door
  • Construction: 12-gauge steel frame
  • Single 32 bit 133 Mhz RISC processor
  • North American Edition, 120 VAC Cord
  • Automatic media/ribbon sensing capability
  • Multi-level Element Energy Equalizer (E3) for superior print quality
Platform Supported:
PC
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0682017486024, 0783555019603, 0853585495088, 4054828569924
UPC: 682017486024, 783555019603, 853585495088
EAN: 0682017486024, 0783555019603, 0853585495088, 4054828569924
UNSPSC: 43212108
