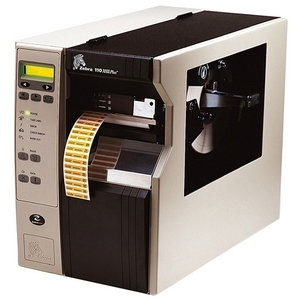

Zebra 112-7A1-00000 Barcode Printer


0.0

(No reviews)

Be the first to

Write a Review
Zebra 110XiIIIPlus - Thermal transfer, 203 dpi, 10 ips, 4.09" print width, ZebraNet PrintServer II (10BASE-T), serial, & USB interfaces, 16MB SDRAM, & 4MB Flash. Includes US power cord. Order cables separately, see accessories.
High-Performance Barcode printer

With the new 110XiIIIPlus, you can step up to the renowned, non-stop reliability of Zebra's Xi printer family without a big leap in price. This new model with full four-inch print width to fit your printing application, be it 4"x 6" compliance shipping labels, or tiny, sharply detailed labels for small components or products.

Technical Information

  • Print Method:
    • Thermal Transfer (TT)
    • Direct Thermal
    • Direct Thermal (DT)
  • Print Resolution: 203 dpi
  • Print Speed: 10 ips
  • Interfaces:
    • 1 x 10 Base-T Ethernet
    • 1 x Serial
    • 1 x USB
    • 1 x Fast Ethernet
  • Maximum Print Width: 4.09"
  • Maximum Label Width: 4.5"
  • Maximum Label Length: 39"
  • Media Sensor:
    • Reflective
    • Transmissive
  • Printer Language:
    • ZPL
    • ZPL II
  • Input Voltage Range: 90 to 264 V AC
  • RAM Memory: 16MB
  • Flash Memory: 4MB
  • Input Voltage: 120 V AC
  • Mobile Printer: No

General Information

Physical Characteristics

  • Dimensions:
    • 15.5" (393.7mm) x 10.37" (263.4mm) x 19.5" (495mm)
    • 15.5" (393.7mm) x 10.37" (263.4mm) x x 19.5" (495mm)
  • Weight: 50 lb (22.68 kg)

Included Features

  • Included Features:
    • Clear Media Side Door & Media Hanger
    • Internal ZebraNet 10/100 Print Server

Agency Approvals

  • Agency Approvals:
    • BSMI
    • CCC
    • MIC
    • C-Tick
    • cUL
    • EN55022 Class B
    • EN55024
    • EN61000-3-2,3
    • FCC Class B
    • GOST-R
    • ICES-003 Class B
    • IEC 60950-1 / EN60950
    • NOM
    • S Mark
    • VCCI
    • ZIK
    • R.O.C. CNS 13438
    • Australia AS/NZS 3548
    • Argentina 92/98 Phase 3
    • Bi-National UL 60950 Third Edition/CSA /CAN/CSA-C22.2 No. 60950-00 Third Edition

Other

  • Package Contents:
    • 110XiIIIPlus Label Printer
    • User Guide
    • Accessories CD
    • ZebraNet Connectivity CD for 10/100 PrintServer
    • North American Edition 120 VAC Power Cord
    • Xi IIIPlus User's Guide
    • Utility & Driver CD
    • ZebraNet Connectivity CD
    • North American Edition Power Cord

Environmental Conditions

  • Temperature:
    • 41°F (5°C) to 104°F (40°C) Operating - Thermal Transfer
    • 32°F (0°C) to 104°F (40°C) Operating - Direct Thermal
    • -40°F (-40°C) to 140°F (60°C) Storage
  • Humidity:
    • 20 to 85% Operating Non-condensing
    • 5 to 85% Storage Non-condensing

Media Characteristics

  • Maximum Label Roll Diameter: 8"
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Ribbon Setup: Wound Out

Warranty

  • Manufacturer Warranty: 1 Year(s) Limited

Full specifications (PDF)

Full specifications (PDF)

Brand Zebra
Model 110XiIIIPlus
Maximum Print Width 4.09
Max Label Width 4.50
Interface Options Ethernet, Serial, USB
Max Roll Outer Diameter 8
Print Resolution 203 dpi
Print Method Thermal Transfer
Printer Type Industrial
Print Speed 10
Label Core 3 inches
Printer Mobility Not Mobile
Ribbon Core 1
