Zebra 10500-3001-3070 Barcode Label Printer

Zebra ZT411 Barcode Label Printer A newer version of this item is available.
It is replaced by the Zebra ZT411 Barcode Label Printer.
Zebra 105SL - Thermal Transfer Industrial Printer (300 dpi, Ethernet and Serial (RS-232) interfaces, 4" max print width, 6MB DRAM, 4MB Flash, Peeler). Includes power supply. Cables sold separately. See accessories.
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Serial (RS-232)
Print Resolution
300 dpi, 305 dpi
Max Print Width
4.5 inch
Ribbon Core Size
1 inch
  • Direct Thermal/Thermal Transfer Printer offers reliable performance with outstanding printing quality
  • 300 maximum print resolution (dpi) for your convenience and easy usage
  • Label Print gives dependable results with maximum productivity
  • Share the printer easily and efficiently with various other systems with the help of built-in Ethernet port
  • 4.52" maximum label width to easily accommodate your needs with added productivity
  • 39" maximum label length for dependable, desired results
  • Supports continuous form media type for better reliance and maximum usability
  • Comes with 6 MB standard memory to ensure maximum efficiency with great quality printing results
Read More

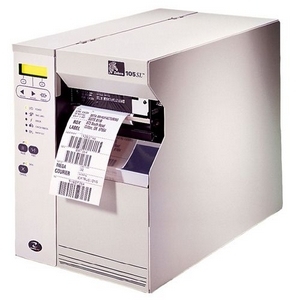

Zebra 105SL Barcode Label Printer Model Overview
The 105SL printer offers the ruggedness and reliability of the popular Zebra 105 Se with significantly enhanced capabilities. Based on a proven platform, the 105SL incorporates enhanced memory and processing capacity combined with cutting-edge connectivity that make it the choice of experienced users. The 105SL is available with either a 203 or 300 dpi printhead, offering exceptional quality at a great price. All units ship with one user's manual.
Zebra 10500-3001-3070 Barcode Label Printer Overview

The 105SL combines enhanced memory, processing capacity, and features with rugged and reliable all-metal construction. Proven platform longevity plus fast processing and print speed make it the choice of experienced users who value reliability, productivity, consistent print quality, network compatibility, and superior service and support.

Technical Information
Recommended Use:
Label Print
Maximum Mono Print Speed:
8 in/s
Maximum Print Resolution (dpi):
300
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Codabar
  • Code 11
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • UCC Case Codes
  • ISBT-128
  • Code 39
  • Code 93
  • EAN-13
  • EAN-8
  • Interleaved 2 of 5
  • Industrial 2 of 5
  • LOGMARS
  • MSI
  • Planet Code
  • Plessey
  • POSTNET
  • Standard 2 of 5
  • UPC-A
  • UPC-E
  • EAN With 2 or 5 Digit Extension
  • UPC 2 or 5 Digit Extension
  • Codablock
  • Code 49
  • Data Matrix
  • Maxi Code
  • PDF-417
  • QR Code
  • Micro PDF-417
  • RSS
  • TLC 39
  • Aztec Code
Peel Facility:
Yes
Memory
Standard Memory:
6 MB
Memory Technology:
SDRAM
Flash Memory:
4 MB
Interfaces/Ports
Serial Port:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Media Types & Handling
Media Type:
  • Continuous Form
  • Die-cut Label
  • Fanfold
Media Sensor:
Transmissive Media Sensor
Maximum Roll Diameter:
8"
Maximum Label Width:
4.52"
Maximum Label Length:
39"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
ZPL
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
15.5"
Width:
11.2"
Depth:
19.5"
Miscellaneous
Package Contents:
  • 105SL Label Printer
  • Power Cord with US plug
  • SL User's Guide
  • ZebraNet Connectivity CD
Cables Included:
AC
Additional Information:
  • Power Cord with US plug
  • Fast 32-bit processing
  • Zebra's E3 Printhead Energy Control
Platform Supported:
PC
Certifications & Standards:
  • UL 1950
  • CISPR 22 Class B
  • CSA 950
  • IEC950
  • 801-2, -3 and -4 standards
  • Canadian Doc Class A
  • FCC Class A
  • CE
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra 10500-3001-3070 Barcode Label Printer is also known as ZEB-1050030013070 or 1050030013070.
