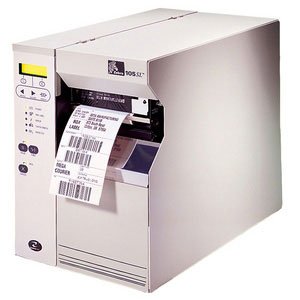

Zebra 10500-3001-2030 Barcode Label Printer

The Zebra 10500-3001-2030 Barcode Label Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Zebra 105SL - Thermal Transfer Industrial Printer (300 dpi, Ethernet and Serial (RS-232) interfaces, 4" max print width, 6MB DRAM, 4MB Flash, Rewinder and Peeler). Includes power supply. Cables sold separately. See accessories.
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Ethernet, Serial (RS-232)
Print Resolution
300 dpi, 305 dpi
Max Print Width
4.5 inch
Ribbon Core Size
1 inch
  • A smart choice for carrying out high volume label printing in multiple areas with reduced cost of ownership
  • 300 maximum print resolution (dpi) offers great dependability with added efficiency
  • Enjoy the optimal performance in today's on-demand labeling applications
  • 4.52" maximum label width for dependable, desired results
  • 39" maximum label length for dependable, desired results
  • Supports die-cut label media type for maximum feasibility and better accommodation of your requirements
  • Comes with 6 MB standard memory to make you productive with the direct thermal/thermal transfer printer smooth performance
  • 8" x Roll Paper media size for better reliance and maximum usability
Read More

Need a different version? See all Zebra 105SL Barcode Label Printers

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Zebra 10500-3001-2030 Barcode Label Printer
Zebra 10500-3001-2030 Barcode Label Printer Zebra 10500-3001-2030 Barcode Label Printer Zebra 10500-3001-2030 Barcode Label Printer
Zebra 10500-3001-2030 Barcode Label Printer
Zebra 10500-3001-2030 Barcode Label Printer

Full specifications (PDF)
Zebra 105SL Barcode Label Printer Model Overview
The 105SL printer offers the ruggedness and reliability of the popular Zebra 105 Se with significantly enhanced capabilities. Based on a proven platform, the 105SL incorporates enhanced memory and processing capacity combined with cutting-edge connectivity that make it the choice of experienced users. The 105SL is available with either a 203 or 300 dpi printhead, offering exceptional quality at a great price. All units ship with one user's manual.
Zebra 10500-3001-2030 Barcode Label Printer Overview

The 105SL combines enhanced memory, processing capacity, and features with rugged and reliable all-metal construction. Proven platform longevity plus fast processing and print speed make it the choice of experienced users who value reliability, productivity, consistent print quality, network compatibility, and superior service and support.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Maximum Mono Print Speed:
8 in/s
Maximum Print Resolution (dpi):
300
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Code 11
  • Code 39
  • Code 49
  • Code 93
  • Codabar
  • Codablock
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • UCC
  • RSS
  • UPC-A
  • UPC-E
  • EAN-8
  • EAN-13
  • Plessey
  • POSTNET
  • PDF-417
  • Interleaved 2 of 5
  • Standard 2 of 5
  • LOGMARS
  • MSI
  • EAN With 2 or 5 Digit Extension
  • UPC 2 or 5 Digit Extension
  • ISBT-128
  • Maxi Code
  • Micro PDF-417
  • Data Matrix
  • QR Code
Peel Facility:
Yes
Memory
Standard Memory:
6 MB
Memory Technology:
SDRAM
Flash Memory:
4 MB
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Ethernet
Media Types & Handling
Media Type:
  • Die-cut Label
  • Continuous Tape
  • Ticket
  • Tag
  • Fanfold
  • Roll Fed
Media Size:
  • 8" x Roll Paper
  • 3.20" x 984 ft
  • 3.20" x 1476 ft
Media Sensor:
Transmissive Media Sensor
Media Thickness:
12.01 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
4.52"
Maximum Label Length:
39"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
  • ZPL II
  • ZPL
Software
Software Included:
  • Adobe Acrobat
  • Ztools Utilities
  • ZebraNet Connectivity CD
  • Direct Zebra Web Access
  • BAR-ONE Lite/Platinum demo
  • JefForm Central ERP Solution
  • BAR-ONE for mySAP Business Suite
  • ZebraNet WebView and Alert Utilities
  • Zebra's Universal Windows Print Driver
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
15.5"
Width:
11.2"
Depth:
19.5"
Miscellaneous
Package Contents:
  • 105SL Label Printer
  • Utilities & Driver CD
  • SL User's Guide
  • Power cord with US plug
  • ZebraNet Connectivity CD for Print Server II
Cables Included:
AC
Additional Information:
  • All-metal reinforced box section enclosure
  • Transmissive media sensor
  • Fast 32-bit processing
  • Selectable print speeds up to 8ips
  • Zebra's E3 Printhead Energy Control
  • Ribbon width: 20mm to 114mm
  • Maximum Print Area:
  • Length: 106" (with standard memory)
Certifications & Standards:
  • UL 1950
  • CISPR 22 Class B
  • CSA 950
  • IEC 950
  • 801-2, -3 and -4
  • Canadian Doc Class A
  • FCC Class A
  • CE Compliance
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra 10500-3001-2030 Barcode Label Printer is also known as ZEB-10500-3001-2030 or 1050030012030.
