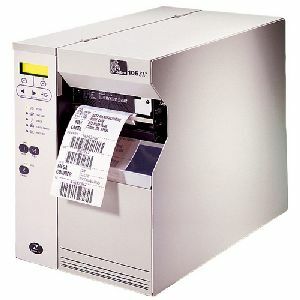

Zebra 10500-3001-1000 Barcode Label Printer

Zebra ZT411 Barcode Label Printer A newer version of this item is available.
It is replaced by the Zebra ZT411 Barcode Label Printer.
Zebra 105SL - Thermal Transfer Industrial Printer (300 dpi, Serial (RS-232) and Parallel interfaces, 4" max print width, 6MB DRAM, 4MB Flash, Cutter). Includes power supply. Cables sold separately. See accessories.
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Parallel, Serial (RS-232)
Print Resolution
300 dpi, 305 dpi
Printer Options
Cutter
Max Print Width
4.5 inch
Ribbon Core Size
1 inch
  • Direct Thermal/Thermal Transfer Printer offers reliable performance with outstanding printing quality
  • 300 maximum print resolution (dpi) offers great dependability with added efficiency
  • Delivers high-speed, hassle-free labeling solution for your business needs
  • 4.52" maximum label width to easily accommodate your needs with added productivity
  • 39" maximum label length for dependable, desired results
  • Supports die-cut label media type for maximum feasibility and better accommodation of your requirements
  • Cutter helps you determine the whereabouts of your design you want the shape to be cut to ensure maximum efficiency
  • Comes with 6 MB standard memory to ensure maximum efficiency with great quality printing results
  • LCD display is brighter with added efficiency, thinner, and feature better refresh rates
Read More

Need a different version? See all Zebra 105SL Barcode Label Printers

Discontinued See Replacement
Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Zebra 10500-3001-1000 Barcode Label Printer
Zebra 10500-3001-1000 Barcode Label Printer
Zebra 10500-3001-1000 Barcode Label Printer
Zebra 10500-3001-1000 Barcode Label Printer Zebra 10500-3001-1000 Barcode Label Printer

Full specifications (PDF)
Zebra 105SL Barcode Label Printer Model Overview
The 105SL printer offers the ruggedness and reliability of the popular Zebra 105 Se with significantly enhanced capabilities. Based on a proven platform, the 105SL incorporates enhanced memory and processing capacity combined with cutting-edge connectivity that make it the choice of experienced users. The 105SL is available with either a 203 or 300 dpi printhead, offering exceptional quality at a great price. All units ship with one user's manual.
Zebra 10500-3001-1000 Barcode Label Printer Overview

The 105SL offers the ruggedness and reliability of the popular 105Se with significantly enhanced capabilities. Based on a proven platform, the 105SL incorporates enhanced memory and processing capacity combined with cutting-edge connectivity that make it the choice of experienced users.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Maximum Mono Print Speed:
8 in/s
Maximum Print Resolution (dpi):
300
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Codabar
  • Code 11
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • UCC Case Codes
  • Interleaved 2 of 5
  • Code 39
  • Code 93
  • EAN-13
  • EAN-8
  • Industrial 2 of 5
  • LOGMARS
  • MSI
  • Planet Code
  • Plessey
  • POSTNET
  • Standard 2 of 5
  • UPC 2 or 5 Digit Extension
  • EAN With 2 or 5 Digit Extension
  • UPC-A
  • UPC-E
  • Codablock
  • Code 49
  • Data Matrix
  • Maxi Code
  • PDF-417
  • QR Code
  • Micro PDF-417
  • RSS
  • TLC 39
  • Aztec Code
Memory
Standard Memory:
6 MB
Memory Technology:
SDRAM
Flash Memory:
4 MB
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Cutter
Cutter:
Yes
Cutting Method:
Automatic
Media Types & Handling
Media Type:
  • Die-cut Label
  • Continuous Form
  • Fanfold
  • Roll Fed
  • Tag
  • Ticket
Media Sensor:
Transmissive Media Sensor
Media Thickness:
120 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
4.52"
Maximum Label Length:
39"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
  • ZPL II
  • ZPL
Software
Software Included:
  • SL User's Guide
  • Ztools Utilities
  • ZPL II Programming Guide
  • Zebra Designer
  • Zebra Designer Pro
  • BAR-ONE for R/3(mySAP.com)
  • Zebra's Universal Windows Printer Driver
  • ZebraNet WebView and Alert Utilities
  • Adobe Acrobat
  • Direct Zebra Web Access
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
15.5"
Width:
11.2"
Depth:
19.5"
Miscellaneous
Package Contents:
  • Zebra 105SL Label Printer
  • Utilities & Driver CD
  • SL User's Guide
  • Power cord with US plug
  • ZebraNet Connectivity CD
Cables Included:
AC
Additional Information:
  • Transmissive media sensor
  • Fast 32-bit processing
  • Power Cord with US plug
  • Zebra Printer Management
  • Zebra's E3 Printhead Energy Control
  • Internal Real-Time Clock
Platform Supported:
PC
Certifications & Standards:
  • UL 1950
  • CISPR 22 Class B
  • CSA 950
  • IEC 950
  • 801-2,-3 and -4
  • Canadian Doc Class A
  • FCC Class A
  • CE compliance
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra 10500-3001-1000 Barcode Label Printer is also known as ZEB-10500-3001-1000 or 1050030011000.
