Zebra 105SL – Barcode Label Printer – 300 dpi, 305 dpi – Thermal Transfer

Part Number: 10500-3001-0770
Model: 105SL
Add to My Shopping List Add to Compare
Discontinued See Replacement
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Ethernet, Wi-Fi
Print Resolution
300 dpi, 305 dpi

Product Description:

  Thermal Transfer Industrial Printer (300 dpi, Wi-Fi Ready (Radio Card Not Included), Ethernet, Serial (RS-232), and Parallel interfaces, 4" max print width, 6MB DRAM, 4MB Flash). Includes power supply. Cables sold separately. See accessories.
Explore all Zebra 105SL Barcode Label Printers
Add to Quote
Zebra 10500-3001-0770 Barcode Label Printer
Zebra 10500-3001-0770 Barcode Label Printer
Zebra 10500-3001-0770 Barcode Label Printer
Zebra 10500-3001-0770 Barcode Label Printer Zebra 10500-3001-0770 Barcode Label Printer

Full specifications (PDF)

Zebra 105SL Barcode Label Printer Model Overview

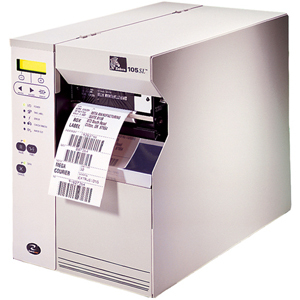

The 105SL printer offers the ruggedness and reliability of the popular Zebra 105 Se with significantly enhanced capabilities. Based on a proven platform, the 105SL incorporates enhanced memory and processing capacity combined with cutting-edge connectivity that make it the choice of experienced users. The 105SL is available with either a 203 or 300 dpi printhead, offering exceptional quality at a great price. All units ship with one user's manual.
Zebra 10500-3001-0770 Barcode Label Printer Overview

The 105SL combines enhanced memory, processing capacity and features with rugged and reliable all metal construction. Proven platform longevity plus fast processing and print speed make it the choice of experienced users who value reliability, productivity, consistent print quality, network compatibility and superior service and support.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
8 in/s
Maximum Print Resolution (dpi):
300
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Codabar
  • Code 11
  • Code 128
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • Code 128 UCC
  • ISBT-128
  • Code 39
  • Code 93
  • EAN-13
  • EAN-8
  • Interleaved 2 of 5
  • Industrial 2 of 5
  • LOGMARS
  • MSI
  • Planet Code
  • Plessey
  • POSTNET
  • Standard 2 of 5
  • UPC 2 or 5 Digit Extension
  • EAN With 2 or 5 Digit Extension
  • UPC-A
  • UPC-E
  • Codablock
  • Code 49
  • Data Matrix
  • Maxi Code
  • PDF-417
  • QR Code
  • Micro PDF-417
  • RSS
  • GS1 DataBar
  • TLC 39
  • Aztec Code
Real Time Clock:
Yes
Print Technology:
Direct Thermal /Thermal Transfer
Memory
Standard Memory:
6 MB
Memory Technology:
SDRAM
Flash Memory:
4 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Wireless LAN:
Yes
Media Types & Handling
Media Type:
  • Continuous Form
  • Die-cut Label
  • Fanfold
  • Roll Fed
  • Tag
  • Ticket
Media Sensor:
Transmissive Media Sensor
Media Thickness:
12 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
4.52"
Maximum Label Length:
39"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
  • ZPL II
  • XML
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
15.5"
Width:
11.2"
Depth:
19.5"
Miscellaneous
Package Contents:
  • 105SL Network Thermal Label Printer
  • Power Cord
  • User's Guide
  • Software Media (Includes: Ztools Utilities, Programming Guide and Zebra Designer Software)
Cables Included:
AC
Additional Information:
  • LCD control panel
  • Zebra Printer Management
  • Fast 32 bit processing
  • Zebra's E3 Printhead Energy Control
  • North American Edition, 120 VAC Cord
  • Construction: Reinforced metal exterior and all metal components
Platform Supported:
PC
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
