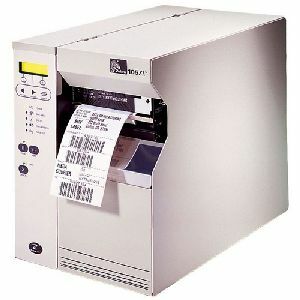

Zebra 105SL – Barcode Label Printer – 203 dpi – Thermal Transfer

Part Number: 10500-2004-0000
Model: 105SL
Discontinued See Replacement
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Parallel, Serial (RS-232)
Print Resolution
203 dpi

Product Description:

  Thermal Transfer Industrial Printer (203 dpi, Serial (RS-232) and Parallel interfaces, 4" max print width, 6MB DRAM, 4MB Flash, UK Power). Includes power supply. Cables sold separately. See accessories.

Zebra 105SL Barcode Label Printer Model Overview

The 105SL printer offers the ruggedness and reliability of the popular Zebra 105 Se with significantly enhanced capabilities. Based on a proven platform, the 105SL incorporates enhanced memory and processing capacity combined with cutting-edge connectivity that make it the choice of experienced users. The 105SL is available with either a 203 or 300 dpi printhead, offering exceptional quality at a great price. All units ship with one user's manual.
Zebra 10500-2004-0000 Barcode Label Printer Overview

Based on a proven platform, the 105SL incorporates enhanced memory and processing capacity combined with cutting-edge connectivity that make it the choice of experienced users.

Technical Information
Recommended Use:
Label Print
Maximum Mono Print Speed:
8 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Code 11
  • Code 39
  • Code 49
  • Code 93
  • Codabar
  • Codablock
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • UCC
  • RSS
  • UPC-A
  • UPC-E
  • EAN-8
  • EAN-13
  • Plessey
  • POSTNET
  • PDF-417
  • Interleaved 2 of 5
  • Standard 2 of 5
  • LOGMARS
  • MSI
  • EAN With 2 or 5 Digit Extension
  • UPC 2 or 5 Digit Extension
  • ISBT-128
  • Maxi Code
  • Micro PDF-417
  • Data Matrix
  • QR Code
Features:
Auto Numbering
Print Technology:
Thermal Transfer
Memory
Standard Memory:
6 MB
Memory Technology:
SDRAM
Flash Memory:
4 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
Media Types & Handling
Media Type:
  • Die-cut Label
  • Continuous Tape
  • Ticket
  • Tag
  • Fanfold
  • Roll Fed
Media Size:
  • 8" x Roll Paper
  • 3.20" x 984 ft
  • 3.20" x 1476 ft
Media Thickness:
12.01 mil
Maximum Label Width:
0.79"
Fonts & Emulation
Language Emulation:
ZPL II
Software
Software Included:
  • Adobe Acrobat
  • Ztools Utilities
  • Direct Zebra Web Access
  • BAR-ONE Lite/Platinum demo
  • BAR-ONE for mySAP Business Suite
  • ZebraNet WebView and Alert Utilities
  • Zebra's Universal Windows Print Driver
Power Description
Input Voltage:
220 V AC
Frequency:
63 Hz
Physical Characteristics
Height:
15.5"
Width:
11.2"
Depth:
19.5"
Miscellaneous
Package Contents:
  • 105SL Thermal Label Printer
  • User's CD
Additional Information:
  • All-metal reinforced box section enclosure
  • Fast 32-bit processing
  • Selectable print speeds up to 8ips
  • Zebra's E3 Printhead Energy Control
  • Ribbon width: 20mm to 114mm
  • Maximum Print Area:
  • Length: 106" (with standard memory)
Certifications & Standards:
  • UL 1950
  • CISPR 22 (Class B)
  • CSA 950
  • IEC 950
  • IEC 801-2
  • IEC 801-3
  • IEC 801-4
  • Canadian Doc. (Class A)
  • FCC Class A
  • CE
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
