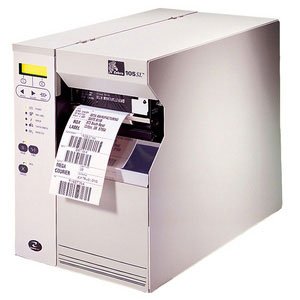

Zebra 10500-2001-2070 Barcode Label Printer
Zebra 10500-2001-2070 Barcode Label Printer
Zebra 105SL -
Thermal transfer printing, 203 dpi, 4" print width, Ethernet 10/100 and Serial (RS-232) interfaces, Rewinder and Peeler, 6MB DRAM, 4MB Flash. Includes US power supply. Cables sold separately.
Rugged all-metal construction for industrial environments.
The 105SL printer offers the ruggedness and reliability of the popular Zebra 105 Se with significantly enhanced capabilities. Based on a proven platform, the 105SL incorporates enhanced memory and processing capacity combined with cutting-edge connectivity that make it the choice of experienced users. The 105SL is available with either a 203 or 300 dpi printhead, offering exceptional quality at a great price. All units ship with one user's manual.
Technical Information
- Maximum Mono Print Speed: 8 in/s
- Maximum Print Resolution: 203 dpi
- Maximum Print Width: 4.09"
- Recommended Use: Label Print
- Features: Peel Facility
- Barcode Symbology Supported:
- Code 11
- Code 39
- Code 49
- Code 93
- Codabar
- Codablock
- Code 128-A
- Code 128-B
- Code 128-C
- UCC
- RSS
- UPC-A
- UPC-E
- EAN-8
- EAN-13
- Plessey
- POSTNET
- PDF-417
- Interleaved 2 of 5
- Standard 2 of 5
- LOGMARS
- MSI
- EAN With 2 or 5 Digit Extension
- UPC 2 or 5 Digit Extension
- ISBT-128
- Maxi Code
- Micro PDF-417
- Data Matrix
- QR Code
General Information
- Product Type: Direct Thermal/Thermal Transfer Printer
- Brand Name: Zebra
- Manufacturer: Zebra Technologies Corporation
- Product Model: 105SL
- Product Name: 105SL Thermal Label printer
Physical Characteristics
- Height: 15.5"
- Width: 11.2"
- Depth: 19.5"
Interfaces/Ports
- Serial Port: Yes
Other
- Package Contents:
- 105SL Label Printer
- Power Cord with US plug
- SL User's Guide
- ZebraNet Connectivity CD
- 105SL Label Printer
- Power Cord with US plug
- SL User's Guide
- ZebraNet Connectivity CD
- Certifications & Standards:
- UL 1950
- CISPR 22 Class B
- CSA 950
- IEC950
- 801-2, -3 and -4 standards
- Canadian Doc Class A
- FCC Class A
- CE
- Additional Information:
- Rewind with Peel feature is standard in this printer
- All-metal reinforced box section enclosure
- Fast 32-bit processing
- Selectable print speeds up to 8ips
- Zebra's E3 Printhead Energy Control
- Ribbon width: 20mm to 114mm
- Maximum Print Area:
- Length: 106" (with standard memory)
Media Types & Handling
- Maximum Label Width: 4.52"
- Maximum Label Length: 39"
- Media Type:
- Die-cut Label
- Continuous Tape
- Ticket
- Tag
- Fanfold
- Roll Fed
- Media Size:
- 8" x Roll Paper
- 3.20" x 984 ft
- 3.20" x 1476 ft
- Media Thickness: 12.01 mil
- Media Sensor: Transmissive Media Sensor
- Label Core Size: 3"
- Ribbon Core Size: 1"
- Maximum Roll Diameter: 8"
Power Description
- Input Voltage:
- 110 V AC
- 220 V AC
Memory
- Standard Memory: 6 MB
- Memory Technology: SDRAM
- Flash Memory: 4 MB
Network & Communication
- Ethernet: Yes
- Ethernet Technology: Fast Ethernet
Warranty
- Limited Warranty: 1 Year
Fonts & Emulation
- Language Emulation: ZPL
Full specifications (PDF)| Brand | Zebra |
| Model | 105SL |
| Maximum Print Width | 4.09 |
| Included Features | Peeler, Internal Rewind |
| Print Resolution | 203 dpi |
| Interface Options | Serial, Ethernet |
| Print Speed | 8 |
| Max Roll Outer Diameter | 8 |
| Print Method | Thermal Transfer |
| Max Label Width | 4.52 |
| Printer Type | Industrial |
| Label Core | 3 inches |
| Printer Mobility | Not Mobile |
| Ribbon Core | 1 |
