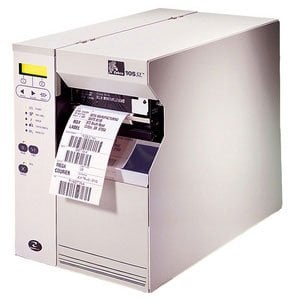

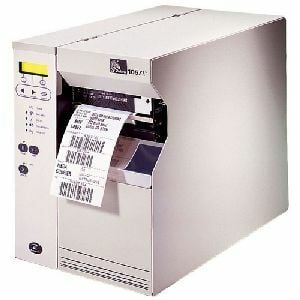

Zebra 105SL – Barcode Label Printer – 203 dpi – Thermal Transfer – Cutter

Part Number: 10500-2001-1000
Model: 105SL
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Parallel, Serial (RS-232)
Print Resolution
203 dpi

Product Description:

  Direct Thermal/Thermal Transfer printing, 203 dpi, 4" print width, Parallel and Serial (RS-232) interfaces, Cutter, 6MB DRAM, 4MB Flash. Includes US power supply. Cables sold separately.
Explore all Zebra 105SL Barcode Label Printers
Add to Quote
Zebra 10500-2001-1000 Barcode Label Printer
Zebra 10500-2001-1000 Barcode Label Printer
Zebra 10500-2001-1000 Barcode Label Printer
Zebra 10500-2001-1000 Barcode Label Printer Zebra 10500-2001-1000 Barcode Label Printer

Full specifications (PDF)

Zebra 105SL Barcode Label Printer Model Overview

The 105SL printer offers the ruggedness and reliability of the popular Zebra 105 Se with significantly enhanced capabilities. Based on a proven platform, the 105SL incorporates enhanced memory and processing capacity combined with cutting-edge connectivity that make it the choice of experienced users. The 105SL is available with either a 203 or 300 dpi printhead, offering exceptional quality at a great price. All units ship with one user's manual.
Zebra 10500-2001-1000 Barcode Label Printer Overview

The 105SL offers the ruggedness and reliability of the popular 105Se with significantly enhanced capabilities. Based on a proven platform, the 105SL incorporates enhanced memory and processing capacity combined with cutting-edge connectivity that make it the choice of experienced users.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Maximum Mono Print Speed:
8 in/s
Maximum Print Resolution (dpi):
203 x 203
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Code 11
  • Code 39
  • Code 49
  • Code 93
  • Codabar
  • Codablock
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • UCC
  • RSS
  • UPC-A
  • UPC-E
  • EAN-8
  • EAN-13
  • Plessey
  • POSTNET
  • PDF-417
  • Interleaved 2 of 5
  • Standard 2 of 5
  • LOGMARS
  • MSI
  • EAN With 2 or 5 Digit Extension
  • UPC 2 or 5 Digit Extension
  • ISBT-128
  • Maxi Code
  • Micro PDF-417
  • Data Matrix
  • QR Code
Memory
Standard Memory:
6 MB
Memory Technology:
SDRAM
Flash Memory:
4 MB
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Cutter
Cutter:
Yes
Media Types & Handling
Media Type:
  • Die-cut Label
  • Continuous Tape
  • Ticket
  • Tag
  • Fanfold
  • Roll Fed
Media Size:
  • 8" x Roll Paper
  • 3.20" x 984 ft
  • 3.20" x 1476 ft
Media Sensor:
Transmissive Media Sensor
Media Thickness:
12.01 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
4.52"
Maximum Label Length:
39"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
  • ZPL II
  • ZPL
Software
Software Included:
  • Adobe Acrobat
  • Ztools Utilities
  • Direct Zebra Web Access
  • BAR-ONE Lite/Platinum demo
  • JefForm Central ERP Solution
  • BAR-ONE for mySAP Business Suite
  • ZebraNet WebView and Alert Utilities
  • Zebra's Universal Windows Print Driver
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Frequency:
63 Hz
Physical Characteristics
Height:
15.5"
Width:
11.2"
Depth:
19.5"
Miscellaneous
Package Contents:
  • Zebra 105SL Label Printer
  • Utilities & Driver CD
  • SL User's Guide
  • Power cord with US plug
  • ZebraNet Connectivity CD
Cables Included:
AC
Additional Information:
  • All-metal reinforced box section enclosure
  • Transmissive media sensor
  • Fast 32-bit processing
  • Selectable print speeds up to 8ips
  • Zebra's E3 Printhead Energy Control
  • Ribbon width: 20mm to 114mm
  • Maximum Print Area:
  • Length: 106" (with standard memory)
Certifications & Standards:
  • UL 1950
  • CISPR 22 Class B
  • CSA 950
  • IEC 950
  • 801-2, -3 and -4
  • Canadian Doc Class A
  • FCC Class A
  • CE Compliance
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0000003127377
UPC: 000003127377
EAN: 0000003127377
UNSPSC: 43212108
