When security counts, count on Zebra for highly secure card solutions. Security is a top priority today more than ever. Improve your organization’s security with Zebra’s advanced security ID card solutions. Combat card counterfeiting and unauthorized alterations and duplications with levels of customizable security features offered through Zebra’s preprinted cards, True Secure™ laminates and Security class card printers. Start with a high-quality Zebra plastic card containing your choice of preprinted security features and built-in security materials. Using Zebra’s Security class on-demand card printers, encode magnetic stripes, radio frequency identification tags for proximity cards, or smart chips for data security in smart cards, plus print variable text and vibrant ID photos. For higher card security and durability, add laminates embedded with additional overt, covert and forensic features.
Overt visual security elements, which are visible to the human eye, are easy to authenticate and very difficult to forge. Covert elements require a device to make them readable by the human eye. Forensic elements are microscopic and the most difficult for a counterfeiter to detect and replicate.
Zebra Card Printers
Choose from a broad range of full color or monochrome card printers. Options range from Ethernet connectivity, Gen 2 UHF RFID and magnetic stripe encoding, to lamination for higher security and card durability. There is a Zebra card printer to meet all your business needs.
Card Security Features
For secure applications, Zebra offers Composite cards that provide a greater average lifespan than most cards available on the market. Order your customized, genuine Zebra™ cards with your choice of overt, covert, or forensic security features.
Opacity Mark Printing (covert)
An image is printed on the inner layers of the card material, making it visible only via the direct application of an intensely focused light source.
Infrared Ink Printing (covert)
Uses special ink that reacts (fluoresces) when subjected to a specific frequency of laser light.
Photo Box (overt)
A portion of the card design specifically allocated for the digital imaging of the card recipient’s photograph.
Micro Text Printing (covert)
Small text that is only visible with an 8x or 10x magnifying loop; typically has a predetermined misspelling or transposed character.
Contact Chip (overt)
An embedded microchip within the card layers that allows for large amounts of data storage and management. Chip is protected by a contact “plate” available in gold or silver.
Clear Window (overt)
Card is constructed with a clear core material to deter any attempt to create a counterfeit card from common card stock.
Optical Variable Ink (OVI®) (overt)
Optical variable ink is a high security feature showing different colors as the angle of view changes. Optical Variable Ink can have a support printing by a dark color shade to get a luscious color effect.
2-D Holographic Foil (overt)
Method of producing a two- dimensional image of an object by recording on a photographic plate or film the pattern of interference formed by a split laser beam, and then illuminating the pattern either with a laser or with ordinary light. 3-D holographic foil also available.
Guilloche Pattern (overt)
Highly complex, multiple-color design pattern generated by a mathematics formula. Virtually impossible to reproduce by copy machine or to re-create digitally.
Black Light-Reactive Ink Printing (covert)
Uses ink that glows under an ultraviolet light. Available in red for added security.
Serialization (overt)
Unique numbering printed on the card specified by the customer.
Contactless Chip (overt)
An embedded microprocessor chip within the card layers that is read via radio signals rather than physical contact.
Magnetic Stripe (overt)
Magnetic band capable of storing data by modifying the magnetism of tiny iron-based particles.
Lamination Security Features
Zebra True Secure advanced security laminates offer a multitude of secure features including unique holographic images, optical variable ink, morphing and more. Applied by Zebra Security class card printers, these protective materials provide increased durability and prolonged card life by preventing image fading and dye migration that can occur with normal card use.
Hidden Imagery/Laser Retrievable Image (covert)
This feature permits the authentication of a holographic image with the use of a laser by illuminating a hidden image that is concealed within the micro-structure of the hologram and not visible to the naked eye until illuminated by a laser.
2-D/3-D Holography (overt)
This is a type of hologram that is made by putting a two-dimensional holographic image in the foreground and putting a two- dimensional holographic background behind it to create the appearance of depth.
Fine Line Printing (overt)
The use of complex fine line designs that are sophisticated in detail, typical to banknotes and often referred to as guilloche printing, these designs can be successfully incorporated into many types of holograms.
Micro-Text (covert)
Small text that is only legible when viewed with an 8x or 10x magnifying glass.
Nano-Text (forensic)
Refers to text that requires magnification beyond a simple eye loop and usually implies that a microscope is needed to decipher the text.
Circular Kinetic (overt)
The method of animating a holographic two-dimensional image so that the image radiates bands of color in a set pattern.
Linear Kinetic Effect (overt)
A holographic image effect where an image is only visible when viewed at a specific angle.
Grayscale Image Effect (overt)
A holographic origination technique whereby the image appears in grayscale versus the traditional rainbow colors.
Pseudo Color (overt)
This technique in making holograms gives a result where the object that is originated appears in its true “natural” coloring. However, the color is only apparent at a single “fixed” viewing angle. While you will see the image at any viewing angle it will only be in its natural coloring at one viewing angle.
Two Channel Image/Flip Image (overt)
A holographic effect whereby an image has an instant change from one image to another as the hologram is rotated from left to right.
Vertical & Horizontal Gradient Holography (overt)
The method of animating a holographic two-dimensional image so that the image radiates bands of color in either the vertical or horizontal.
Morphing (overt)
This holographic technique is demonstrated by a shift between two different images as the angle of viewing is rotated from left to right. The image shift is gradual from one image to a second image.
Optical Variable Ink (OVI) Printing (overt)
The printing of inks that have a noticeable color shift when the document is rotated either up and down or right to left.
Zebra Laminating Card Printers
For high-volume, high-security applications, choose a Zebra card printer with single- or dual- sided lamination. Depending on your application requirements, lamination is available on direct-to-card security printers or retransfer printers. They both provide the maximum amount of flexibility in protecting driver’s licenses and other types of secure ID cards.
Extend Your Security Options with Long-Range RFID
With a Zebra card printer, you can extend the range of contactless ID cards to as much as 30 feet— thanks to secure, long-range RFID ultrahigh-frequency (UHF) technology. Efficiently control and monitor access to high-security organizations and areas, track people’s locations, and relieve congestion by validating or counting people simultaneously, as well as track assets.
Optimize Your Printer Performance with Genuine Zebra™ Supplies

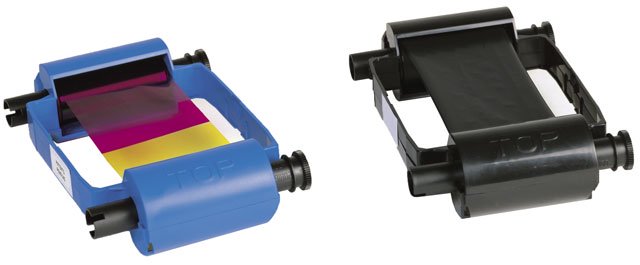

Print Ribbons Zebra’s True Colours® print ribbons deliver consistent, high-quality color reproduction for vibrant color photos, true-to-life flesh tones, and sharp monochrome resin bar codes and text. A patented overlay protects the card against dye-migration and abrasions. Overlay & Laminate Zebra’s True Secure secure varnish overlays and laminates are designed to combat card counterfeiting, alteration and duplication. These protective materials prolong card life by preventing image fading and dye-migration, and create a more durable card. They can also deter card forgery with the use of the security-featured holograms. Zebra’s patented linerless lamination dramatically reduces the cost of laminate material and is waste-free. Plastic Cards Zebra’s premier plastic cards enhance the print quality and image sharpness needed for vivid colors and detailed readable bar codes. For more secure applications, Zebra offers stock and custom security features. Cleaning Supplies Zebra offers a full line of cleaning supplies to properly maintain printer performance, extend card printer life, and yield better quality card images.
Application(s)
• Driver’s Licenses • Government & Military ID Cards • High Security Access Control ID Cards • Law Enforcement and Correctional Facility ID Cards • Airport Personnel ID Cards • Applications requiring secure issuance of long-lasting, tamper-evident IDs
Markets
• Healthcare • Education • Hospitality • Finance • Retail
Government Compliance / Certifications
• FIPS 201 • PIV • SWIFT • UL
Specifications at a Glance
• Single- and dual-sided lamination • Laminates with holograms
Zebra 104523-131 Plastic ID Card Overview

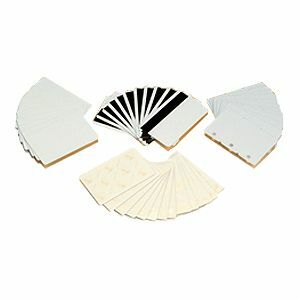

Zebra's line of durable plastic cards enhances the print quality and image sharpness needed to produce vivid colors and detailed readable bar codes. Zebra guarantees its cards to be ISO compliant, dust-free, and have smooth edges.
Full specifications (PDF)
