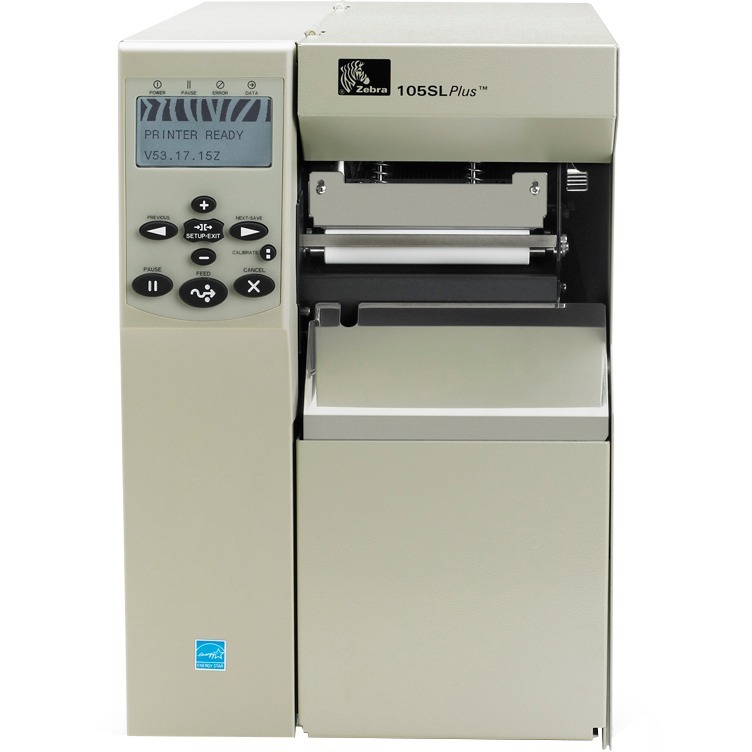

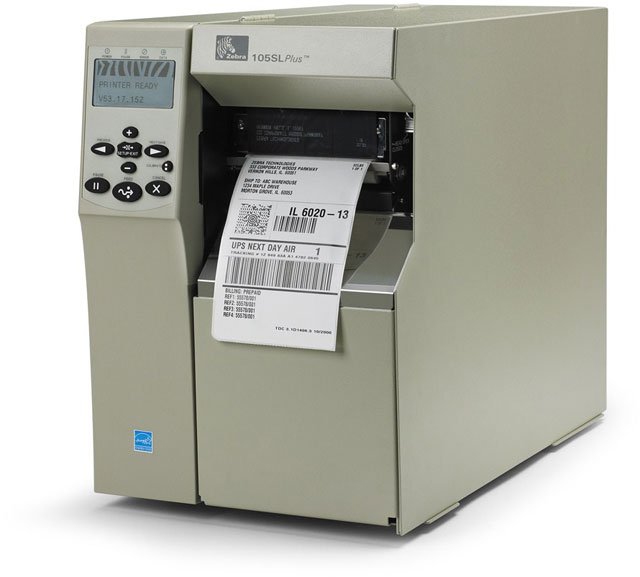

Zebra 105SL Plus – Barcode Label Printer – 300 dpi

Part Number: 103-8K1-00200
Model: 105SL Plus
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Print Resolution
300 dpi

Product Description:

  Thermal transfer printer, 300 DPI, 4" print width, tear bar, rewinder and peeler, RS-232 serial, USB 2.0, Centronics parallel, internal ZebraNet 10/100 print server, 8MB FLASH memory, 16 MB SDRAM, ZPL II, XML, North America power cord
Explore all Zebra 105SL Plus Barcode Label Printers
Add to Quote
Zebra 103-8K1-00200 Barcode Label Printer
Zebra 103-8K1-00200 Barcode Label Printer
Zebra 103-8K1-00200 Barcode Label Printer
Zebra 103-8K1-00200 Barcode Label Printer Zebra 103-8K1-00200 Barcode Label Printer

Full specifications (PDF)

Zebra 105SL Plus Barcode Label Printer Model Overview

The 105SL Plus is the newest member of Zebra's S Series Printers and it's also the fastest combining enhanced memory and processing capacity with rugged and reliable all-metal construction. Based on a proven platform with cutting-edge ZebraLink connectivity the 105SL Plus is the choice of experienced users.
Zebra 103-8K1-00200 Barcode Label Printer Overview

Streamline operations with flexible connectivity, faster throughput and increased reliability with a barcode label printer made for manufacturing, warehousing and distribution. Quickly print high-quality barcode labels ideal for shipping/receiving, compliance and other applications.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
12.01 in/s
Maximum Print Resolution (dpi):
300
Maximum Print Width:
12.01"
Barcode Symbology Supported:
  • Codabar
  • Code 11
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • Code 39
  • Code 93
  • EAN-13
  • EAN-8
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Plessey
  • Planet Code
  • POSTNET
  • Standard 2 of 5
  • UPC 2 or 5 Digit Extension
  • EAN With 2 or 5 Digit Extension
  • UPC-A
  • UPC-E
  • Codablock
  • Code 49
  • Data Matrix
  • Maxi Code
  • PDF-417
  • QR Code
  • Micro PDF-417
  • RSS
  • GS1 DataBar
  • TLC 39
  • Aztec Code
  • ISBT-128
Peel Facility:
Yes
Real Time Clock:
Yes
Rewinder:
Yes
Application/Usage:
Desktop
Features:
Element Energy Equalizer
Memory
Standard Memory:
16 MB
Memory Technology:
SDRAM
Flash Memory:
8 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11g
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Media Types & Handling
Media Type:
  • Continuous Label
  • Die-cut Label
  • Fanfold
  • Roll Fed
  • Tag
  • Ticket
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Media Thickness:
12 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
4.52"
Maximum Label Length:
39"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
  • ZPL 1
  • ZPL II
  • XML
Power Description
Power Source:
AC Supply
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
15.5"
Width:
11.2"
Depth:
19.5"
Weight (Approximate):
55 lb
Miscellaneous
Package Contents:
  • 105SLPlus Label Printer
  • North American Edition 120 VAC Power Cord
Cables Included:
AC
Platform Supported:
PC
Certifications & Standards:
  • IEC 60950-1
  • EN 55022 Class B
  • EN 55024
  • EN 61000-3-2
  • EN 61000-3-3
  • cTUVus
  • CE
  • FCC-B
  • ICES-003
  • VCCI
  • C-Tick
  • NOM
  • S-Mark(Arg)
  • CCC
  • GOST-R
  • BSMI
  • KCC
  • UkrSEPRO
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
