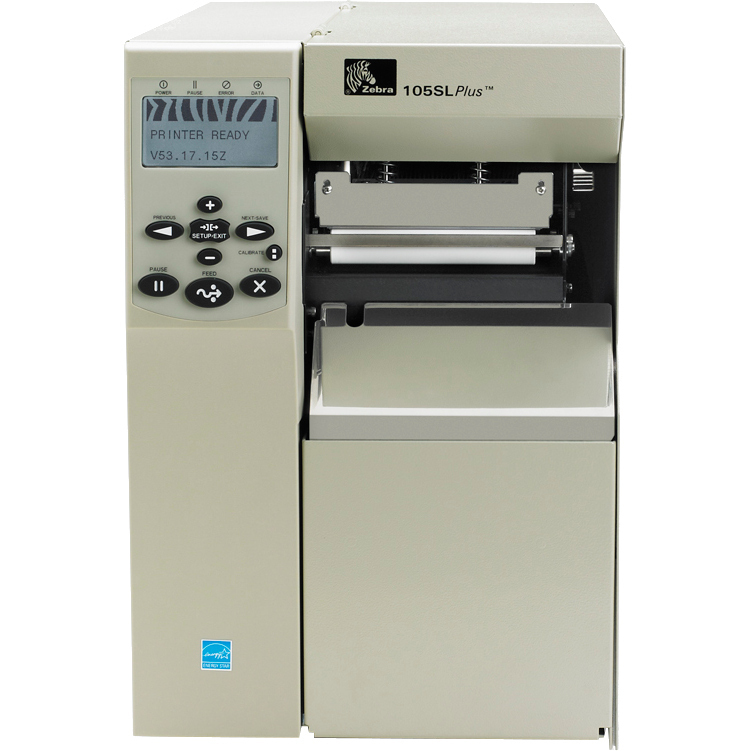

Zebra 103-801-00100 Barcode Label Printer

Zebra ZT51043-T110000Z Barcode Label Printer A newer version of this item is available.
It is replaced by the Zebra ZT51043-T110000Z Barcode Label Printer.
Zebra 105SL Plus - Thermal transfer printing, 300 dpi, 4" print width, Ethernet 10/100, USB, Parallel, Serial (RS-232) Interfaces, Cutter. Includes US power supply. Cables sold separately.
Printer Type
Industrial
Print Resolution
300 dpi
  • Use Thermal Transfer Printer for their versatility and compact design, as well as their high-resolution and durable printing capabilities
  • 300 maximum print resolution (dpi) for better reliance and added usability
  • The printer is capable of printing sharp and detailed monochrome documents quickly
  • Enjoy maximum efficiency with label print printing
  • Optimize your workflows by sharing the resources of the printer via Ethernet connectivity
  • 4.52" maximum label width for dependable, desired results
  • 39" maximum label length for dependable, desired results
  • Supports continuous label media type for maximum feasibility and better accommodation of your requirements
  • Cutter effectively designs a line around your design to help determine what specific shape you're after to ensure maximum dependability
  • Thermal Transfer Printer with desktop application/usage provides dependable printing solution with added productivity
Read More

Need a different version? See all Zebra 105SL Plus Barcode Label Printers

Discontinued See Replacement
Add to Quote
Add to My Shopping List Add to Compare
Zebra 103-801-00100 Barcode Label Printer
Zebra 103-801-00100 Barcode Label Printer Zebra 103-801-00100 Barcode Label Printer Zebra 103-801-00100 Barcode Label Printer
Zebra 103-801-00100 Barcode Label Printer
Zebra 103-801-00100 Barcode Label Printer

Full specifications (PDF)
Zebra 105SL Plus Barcode Label Printer Model Overview
The 105SL Plus is the newest member of Zebra's S Series Printers and it's also the fastest combining enhanced memory and processing capacity with rugged and reliable all-metal construction. Based on a proven platform with cutting-edge ZebraLink connectivity the 105SL Plus is the choice of experienced users.
Zebra 103-801-00100 Barcode Label Printer Overview

Streamline operations with flexible connectivity, faster throughput and increased reliability with a barcode label printer made for manufacturing, warehousing and distribution. Quickly print high-quality barcode labels ideal for shipping/receiving, compliance and other applications.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
12.01 in/s
Maximum Print Resolution (dpi):
300
Maximum Print Width:
12.01"
Barcode Symbology Supported:
  • Codabar
  • Code 11
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • Code 39
  • Code 93
  • EAN-13
  • EAN-8
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Plessey
  • Planet Code
  • POSTNET
  • Standard 2 of 5
  • UPC 2 or 5 Digit Extension
  • EAN With 2 or 5 Digit Extension
  • UPC-A
  • UPC-E
  • Codablock
  • Code 49
  • Data Matrix
  • Maxi Code
  • PDF-417
  • QR Code
  • Micro PDF-417
  • RSS
  • GS1 DataBar
  • TLC 39
  • Aztec Code
  • ISBT-128
Real Time Clock:
Yes
Application/Usage:
Desktop
Features:
Element Energy Equalizer
Memory
Standard Memory:
16 MB
Memory Technology:
SDRAM
Flash Memory:
8 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Cutter
Cutter:
Yes
Media Types & Handling
Media Type:
  • Continuous Label
  • Die-cut Label
  • Fanfold
  • Roll Fed
  • Tag
  • Ticket
Media Handling:
1 x Catch Tray
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Media Thickness:
12 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
4.52"
Maximum Label Length:
39"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
  • ZPL 1
  • ZPL II
  • XML
Power Description
Power Source:
AC Supply
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
15.5"
Width:
11.2"
Depth:
19.5"
Weight (Approximate):
55 lb
Miscellaneous
Package Contents:
  • 105SLPlus Label Printer
  • North American Edition 120 VAC Power Cord
Cables Included:
AC
Platform Supported:
PC
Certifications & Standards:
  • IEC 60950-1
  • EN 55022 Class B
  • EN 55024
  • EN 61000-3-2
  • EN 61000-3-3
  • cTUVus
  • CE
  • FCC-B
  • ICES-003
  • VCCI
  • C-Tick
  • NOM
  • S-Mark(Arg)
  • CCC
  • GOST-R
  • BSMI
  • KCC
  • UkrSEPRO
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0004597437249, 0627326809553, 0783555134870
UPC: 004597437249, 627326809553, 783555134870
EAN: 0004597437249, 0627326809553, 0783555134870
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra 103-801-00100 Barcode Label Printer is also known as ZEB-10380100100 or 103-801-00100.
