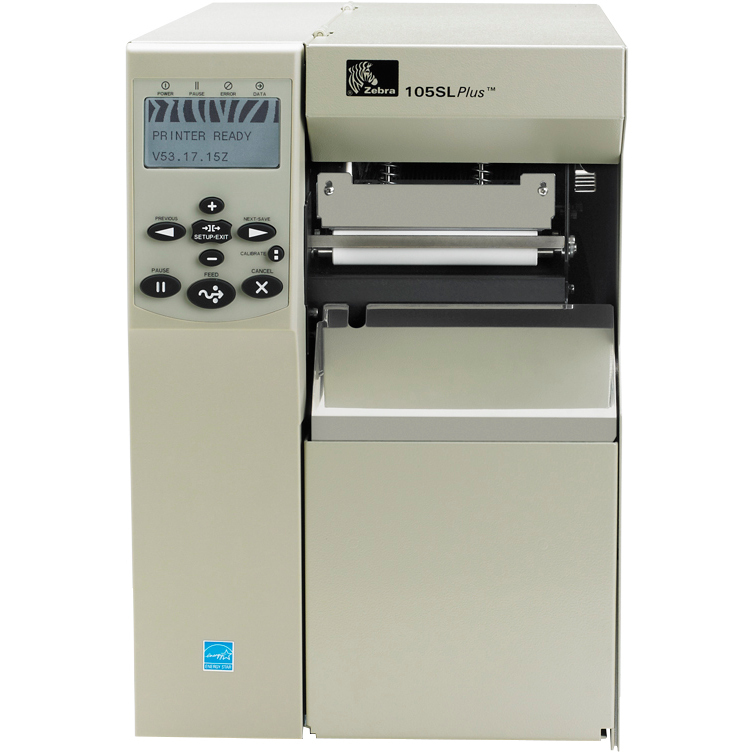

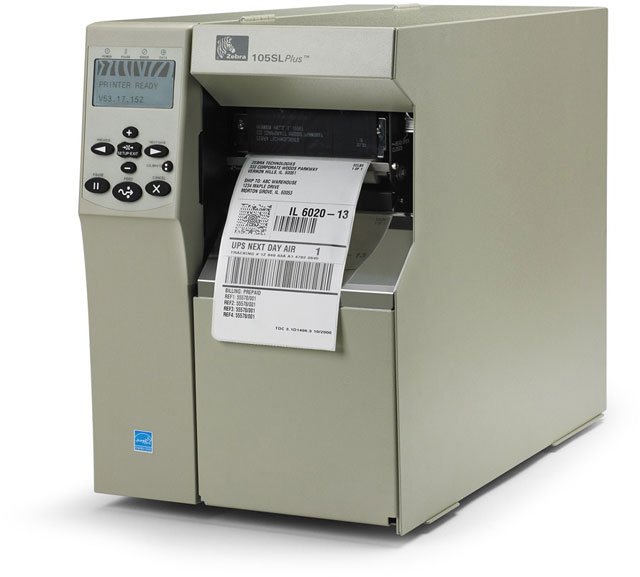

Zebra 102-801-00200 Barcode Printer

0.0

(No reviews)

Be the first to

Write a Review

Zebra 105SL Plus - Thermal transfer printing, 203 dpi, 4" print width, Ethernet 10/100, USB, Parallel, Serial (RS-232) Interfaces, Rewinder with Peeler. Includes US power supply. Cables sold separately.

See Replacement ›

Rugged all-metal construction for industrial environments.

The 105SL Plus printer offers the ruggedness and reliability of the popular Zebra 105 Se with significantly enhanced capabilities. Based on a proven platform, the 105SL Plus incorporates enhanced memory and processing capacity combined with cutting-edge connectivity that make it the choice of experienced users. The 105SL Plus is available with either a 203 or 300 dpi printhead, offering exceptional quality at a great price. All units ship with one user's manual.

Technical Information

Maximum Mono Print Speed: 12.01 in/s
Peel Facility: Yes
Maximum Print Resolution: 203 dpi
Print Color: Monochrome
Maximum Print Width: 4.09"
Recommended Use: Label Print
Features:
- Element Energy Equalizer
- Real Time Clock
- Peel Facility
- Rewind
Barcode Symbology Supported:
- Codabar
- Code 11
- Code 128-A
- Code 128-B
- Code 128-C
- Code 39
- Code 93
- EAN-13
- EAN-8
- Industrial 2 of 5
- Interleaved 2 of 5
- LOGMARS
- MSI
- Plessey
- Planet Code
- POSTNET
- Standard 2 of 5
- UPC 2 or 5 Digit Extension
- EAN With 2 or 5 Digit Extension
- UPC-A
- UPC-E
- Codablock
- Code 49
- Data Matrix
- Maxi Code
- PDF-417
- QR Code
- Micro PDF-417
- RSS
- GS1 DataBar
- TLC 39
- Aztec Code
- ISBT-128

General Information

Product Type: Thermal Transfer Printer
Brand Name: Zebra
Manufacturer: Zebra Technologies Corporation
Product Model: 105SLPlus
Product Name: 105SLPlus Label Printer

Physical Characteristics

Height: 15.5"
Width: 11.2"
Depth: 19.5"
Form Factor: Desktop
Weight (Approximate): 55 lb

Interfaces/Ports

USB: Yes
Serial Port: Yes
Parallel Port: Yes

Other

Platform Supported: PC
Package Contents:
- 105SLPlus Label Printer
- North American Edition 120 VAC Power Cord
- 105SLPlus Label Printer
- North American Edition 120 VAC Power Cord
Certifications & Standards:
- IEC 60950-1
- EN 55022 Class B
- EN 55024
- EN 61000-3-2
- EN 61000-3-3
- cTUVus
- CE
- FCC-B
- ICES-003
- VCCI
- C-Tick
- NOM
- S-Mark(Arg)
- CCC
- GOST-R
- BSMI
- KCC
- UkrSEPRO

Media Types & Handling

Maximum Label Width: 4.52"
Maximum Label Length: 39"
Media Type:
- Continuous Label
- Die-cut Label
- Fanfold
- Roll Fed
- Tag
- Ticket
Media Thickness: 12 mil
Media Sensor:
- Transmissive Media Sensor
- Reflective Media Sensor
Label Core Size: 3"
Ribbon Core Size: 1"
Maximum Roll Diameter: 8"

Power Description

Input Voltage:
- 220 V AC
- 110 V AC
Power Source: AC Supply

Fonts & Emulation

Language Emulation:
- ZPL 1
- XML
- ZPL II

Memory

Standard Memory: 16 MB
Memory Technology: SDRAM
Flash Memory: 8 MB

Network & Communication

Ethernet: Yes
Ethernet Technology: Fast Ethernet

Warranty

Limited Warranty: 1 Year

Display & Graphics

Display Screen Type: LCD

Full specifications (PDF)

See all Zebra 105SL Plus options »

Brand	Zebra
Model	105SL Plus
Included Features	Peeler, Rewinder
Print Method	Thermal Transfer
Brand	Zebra
Max Label Width	4.00
Interface Options	USB, Parallel, SDIO Slot
Printer Type	Industrial
Labels Per Day	more than 10,000
Print Resolution	203 dpi
Maximum Print Width	4.00
Printer Mobility	Not Mobile
