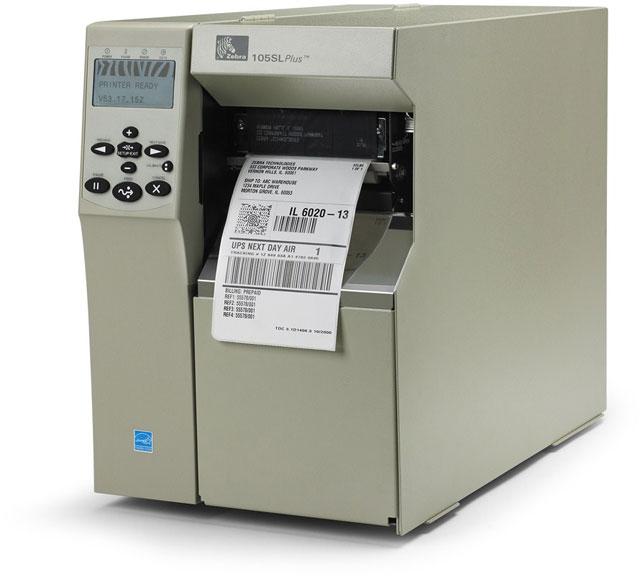

Zebra 102-801-00000 Barcode Label Printer

Zebra ZT51042-T010000Z Barcode Label Printer A newer version of this item is available.
It is replaced by the Zebra ZT51042-T010000Z Barcode Label Printer.
Zebra 105SL Plus - Thermal transfer printing, 203 dpi, 4" print width, Ethernet 10/100, USB, Parallel, Serial (RS-232) Interfaces. Includes US power supply. Cables sold separately.
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Parallel, Serial (RS-232), USB
Print Resolution
203 dpi
Printer Options
Tear Bar
Max Print Width
4 inch
  • Thermal Transfer Printer is a reliable label/receipt printing solution with maximum efficiency
  • 203 maximum print resolution (dpi) for better reliance and added usability
  • Produce high-quality documents with this monochrome printer to increase your productivity
  • Delivers high-speed, hassle-free labeling solution for your business needs
  • Share the printer easily and efficiently with various other systems with the help of built-in Ethernet port
  • 4.52" maximum label width to easily accommodate your needs with added productivity
  • 39" maximum label length for dependable, desired results
  • Supports continuous label media type for maximum feasibility and better accommodation of your requirements
  • Thermal Transfer Printer with desktop application/usage provides dependable printing solution with added productivity
  • Element Energy Equalizer feature for better reliance and usability
Read More

Need a different version? See all Zebra 105SL Plus Barcode Label Printers

Discontinued See Replacement
Add to Quote
Add to My Shopping List Add to Compare
Zebra 102-801-00000 Barcode Label Printer
Zebra 102-801-00000 Barcode Label Printer Zebra 102-801-00000 Barcode Label Printer Zebra 102-801-00000 Barcode Label Printer
Zebra 102-801-00000 Barcode Label Printer
Zebra 102-801-00000 Barcode Label Printer

Full specifications (PDF)
Zebra 105SL Plus Barcode Label Printer Model Overview
The 105SL Plus is the newest member of Zebra's S Series Printers and it's also the fastest combining enhanced memory and processing capacity with rugged and reliable all-metal construction. Based on a proven platform with cutting-edge ZebraLink connectivity the 105SL Plus is the choice of experienced users.
Zebra 102-801-00000 Barcode Label Printer Overview

Streamline operations with flexible connectivity, faster throughput and increased reliability with a barcode label printer made for manufacturing, warehousing and distribution. Quickly print high-quality barcode labels ideal for shipping/receiving, compliance and other applications.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
12.01 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Codabar
  • Code 11
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • Code 39
  • Code 93
  • EAN-13
  • EAN-8
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Plessey
  • Planet Code
  • POSTNET
  • Standard 2 of 5
  • UPC 2 or 5 Digit Extension
  • EAN With 2 or 5 Digit Extension
  • UPC-A
  • UPC-E
  • Codablock
  • Code 49
  • Data Matrix
  • Maxi Code
  • PDF-417
  • QR Code
  • Micro PDF-417
  • RSS
  • GS1 DataBar
  • TLC 39
  • Aztec Code
  • ISBT-128
Real Time Clock:
Yes
Application/Usage:
Desktop
Features:
Element Energy Equalizer
Memory
Standard Memory:
16 MB
Memory Technology:
SDRAM
Flash Memory:
8 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Media Types & Handling
Media Type:
  • Continuous Label
  • Die-cut Label
  • Fanfold
  • Roll Fed
  • Tag
  • Ticket
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Media Thickness:
12 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
4.52"
Maximum Label Length:
39"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
  • ZPL 1
  • XML
  • ZPL II
Software
Operating System Supported:
Compatible with Windows 7 102-801-00000
Power Description
Power Source:
AC Supply
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Product Color:
Beige
Height:
15.5"
Width:
11.2"
Depth:
19.5"
Weight (Approximate):
55 lb
Miscellaneous
Package Contents:
  • 105SLPlus Label Printer
  • North American Edition 120 VAC Power Cord
Cables Included:
AC
Platform Supported:
PC
Certifications & Standards:
  • IEC 60950-1
  • EN 55022 Class B
  • EN 55024
  • EN 61000-3-2
  • EN 61000-3-3
  • cTUVus
  • CE
  • FCC-B
  • ICES-003
  • VCCI
  • C-Tick
  • NOM
  • S-Mark(Arg)
  • CCC
  • GOST-R
  • BSMI
  • KCC
  • UkrSEPRO
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0527167259435, 0682017487007
UPC: 527167259435, 682017487007
EAN: 0527167259435, 0682017487007
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra 102-801-00000 Barcode Label Printer is also known as 102-801-00000
