Zebra Silverline Blade II RFID Inlay Model Overview
Confidex Silverline Blade II is a high performing, on-metal label for the most demanding applications. It offers great size to performance ratio to be used in the tightest spaces. Confidex Silverline Blade II is ideal for asset tracking of small industrial assets, such as metal tools, and IT and handheld devices.
Key Features:
Provides high performance in a compact size
High tack adhesive for challenging surfaces
Optimized for metal surfaces, but works on any surface
Can be printed with standard RFID printers
Ideal for IT and handheld device tracking
Confidex Silverline Blade II is a high performing, and IT and handheld devices.
Application Areas:
Metal tools and components, small IT and handheld devices, industrial assets.
Printability:
Confidex Silverline Blade II can be personalized with a standard RFID label printer that supports the use of the belt. Recommended printers are e.g. Zebra ZT410 Silverline or ZT411 Silverline printers. Confidex Silverline Blade II can be encoded and printed with standard RFID printers using supported RFID printer drivers. The label surface is printable with standard resin ribbon with Zebra 5095 recommended.
Typical Applications:
IT and Handheld Device Tracking, Industrial Asset Management, Small Industrial Assets
Technical Specifications:
Zebra 10039973 RFID Label Overview
The next generation of Silverline RFID on-metal labels build upon the printing and encoding performance many have relied on, with new materials and the latest chip technology, regionally tuned to offer up to 3X longer read ranges on-metal and improved readability on non-metal surfaces. Their durability, versatile all-surface application properties and readable range of up to 15 metres makes them suitable for a wide range of demanding applications. Typical uses include the tagging of IT equipment, medical equipment, firearms, high value tools, industrial equipment and returnable shipping containers.
What is the read range of the Zebra Silverline Blade II RFID tag?
The Zebra Silverline Blade II delivers exceptional read ranges with distances up to 10 meters (33 feet) on metal surfaces and up to 5 meters (16 feet) on plastic surfaces. This represents a 2.2x improvement over its predecessor on metal and 3.3x greater performance on plastic, making it ideal for demanding asset tracking applications in warehouses and industrial environments.
What chip does the Silverline Blade II RFID tag use?
The Silverline Blade II is equipped with the new Impinj M730 chip, which provides consistent and effective read performance. This advanced chip technology, combined with the tag's redesigned foam thickness, ensures reliable operation across the most challenging RFID applications.
What are typical applications for the Zebra Silverline Blade II RFID label?
The Silverline Blade II is perfect for IT and handheld device tracking, industrial asset management, and small industrial assets. Common applications include asset tracking of chemical drums, mobile computers, printers, antennas, wheelchairs, IV pumps, and other high-value equipment in logistics and healthcare environments.
What printer is recommended for the Silverline Blade II RFID labels?
The Zebra ZT410 Silverline RFID Label Printer is specifically designed for Silverline labels, featuring a printhead assembly and adjustable sensor assembly to support the increased thickness of Silverline media. This printer supports thermal transfer printing with standard resin ribbon, such as the Zebra 5095, for optimal encoding and printing results.
Is the Silverline Blade II RFID tag suitable for metal surfaces?
Yes, the Silverline Blade II is specifically engineered for on-metal applications with a read range up to 10 meters (33 feet) on metal surfaces. Its discreet, compact design and advanced Impinj M730 chip make it ideal for tracking metal assets like drums, equipment, and industrial machinery in warehouse and logistics operations.
What are the label specifications for the Zebra Silverline Blade II?

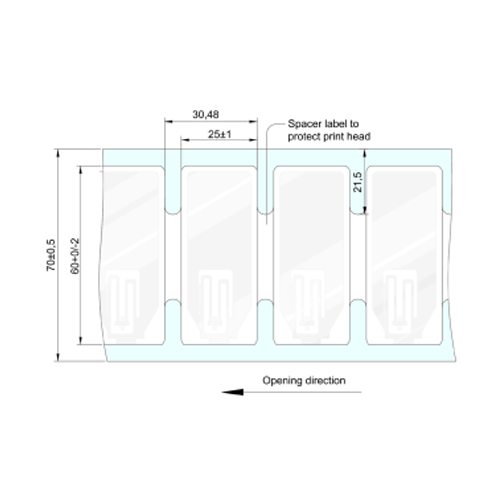

The Silverline Blade II RFID label measures 2.3594x0.9844 inches (60x25mm) and is constructed from synthetic RFID polyester with foam coating and high-performance acrylic adhesive. Each roll contains 400 labels on a 3-inch (76.2mm) core, designed for thermal transfer printing and compatible with UHF EPC Gen 2 V2/ISO 18000-6C standards. Contact us today to order or learn more about availability.
The Zebra 10039973 RFID Label is also known as
ZEB-10039973
or 10039973.
Full specifications (PDF)
