Zebra 10034079 RFID Label

Part Number: 10034079
Model: RFID Labels
Add to My Shopping List Add to Compare
Discontinued See Replacement
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Label Width
4"
Label Length
2"
Number of Labels per Roll
190
Core Diameter
3/4"

Product Description:

  RFID Labels, Zebra PolyPro 4000D, Advanced, 4" x 2" (101.6mm x 50.8mm), Direct Thermal, Permanent Adhesive, Perforated, Zebra ZBR4000 Inlay, 0.75" Core, 2" OD. 190 Labels/Roll, 12 Roll Per Case, Priced Per Case. Compatible With ZQ520R/ZQ630R.
Explore all Zebra ZBR4000 RFID Inlays
Add to Quote
Zebra 10034079 RFID Label
Zebra 10034079 RFID Label
Zebra 10034079 RFID Label
Zebra 10034079 RFID Label
Zebra 10034079 RFID Label Zebra 10034079 RFID Label Zebra 10034079 RFID Label

Full specifications (PDF)

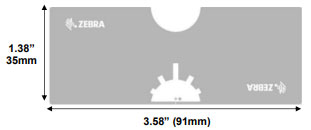

Zebra ZBR4000 RFID Inlay Model Overview

The Zebra ZBR4000 RFID tag is for general use in applications for transportation, logistics, product manufacturing, and healthcare. Its primary use is in boxes and pallets for product identification and asset tracking.

It has a very high sensitivity, offering reading ranges of over 20 meters in open spaces. It incorporates the NXP UCODE 8 chip with a 128-bit EPC memory and 96 bits of factory-locked TID (48 unique bits). The reading sensitivity is -23 dBm, and the writing sensitivity is -18 dBm. Its dimensions are 15 mm x 35 mm.

DETAILS
  • Advanced inlay
  • Optimized to be read from nearly any angle
  • Performs well when placed on or near challenging materials (i.e. pallets, freight)
  • Best in class read accuracy with overhead readers like Zebra ATR7000
  • Applications: Case / Pallet, Freight, Assets
  • Meets Auburn ARC Specs: A,B,C,D,F,G,I,K,L,M,N,Q,U

TECHNICAL INFORMATION
  • Chip: NXP UCODE 8
  • EPC memory: 128 bit
  • User memory: N/A
  • TID: 96 bit factory locked (48 bit unique)
  • Read Sensitivity: -23dBm
  • Write Sensitivity: -18dBm
  • UHF RFID, EPC Gen2v2, ISO 18000-63, RAIN RFID
  • Extreme high sensitivity: read range up to 20m in free space


Zebra 10034079 RFID Label Overview
Thermal transfer RFID labels - pair with Zebra's 6000 wax or 3200 wax/resin ribbon
For use with Zebra's ZD500R, RXi4, ZT400R and ZT600R printers
Full specifications (PDF)
Product Information
Label Width:
4"
Label Length:
2"
Number of Labels per Roll:
190
Core Diameter:
3/4"
Shape:
Rectangle
Print Technology:
Thermal Transfer
Features:
  • Coated Paper
  • Adhesive
Physical Characteristics
Product Material:
Polypropylene
Miscellaneous
Compatibility:
Zebra Printers:
  • ZQ520R
  • ZQ630R
Item Numbers
UNSPSC: 55121600
