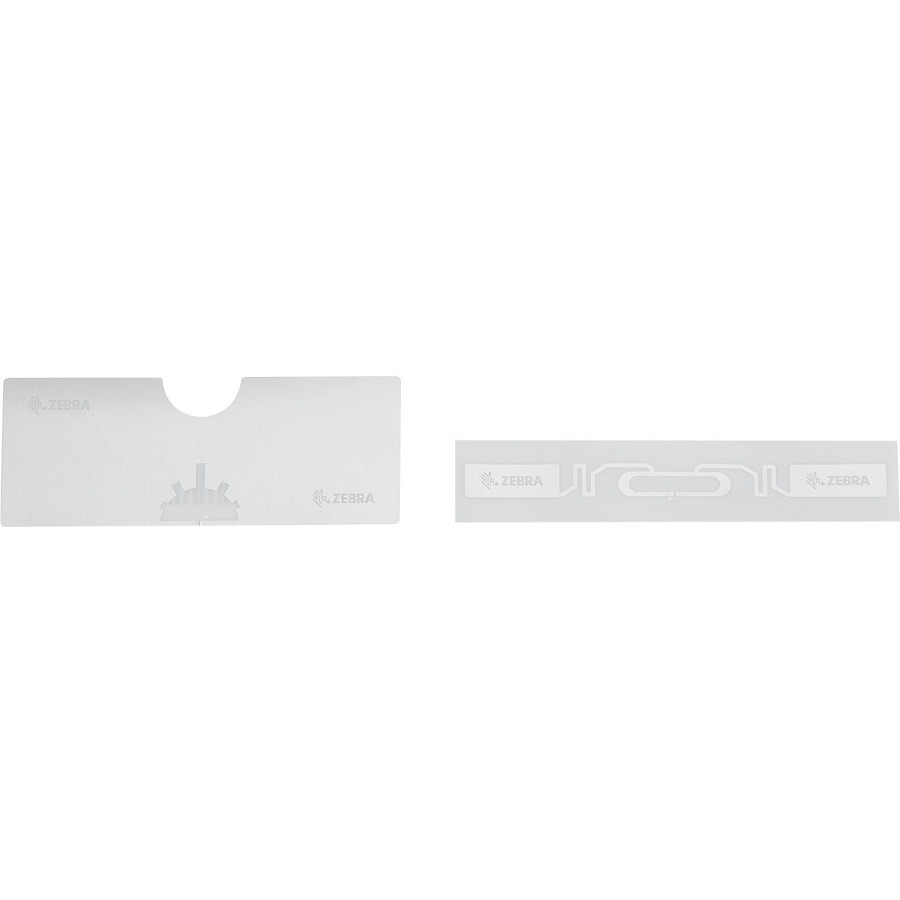

The Zebra ZBR4000 RFID tag is for general use in applications for transportation, logistics, product manufacturing, and healthcare. Its primary use is in boxes and pallets for product identification and asset tracking.
It has a very high sensitivity, offering reading ranges of over 20 meters in open spaces. It incorporates the NXP UCODE 8 chip with a 128-bit EPC memory and 96 bits of factory-locked TID (48 unique bits). The reading sensitivity is -23 dBm, and the writing sensitivity is -18 dBm. Its dimensions are 15 mm x 35 mm.
DETAILS
Advanced inlay
Optimized to be read from nearly any angle
Performs well when placed on or near challenging materials (i.e. pallets, freight)
Best in class read accuracy with overhead readers like Zebra ATR7000
Applications: Case / Pallet, Freight, Assets
Meets Auburn ARC Specs: A,B,C,D,F,G,I,K,L,M,N,Q,U
TECHNICAL INFORMATION
Chip: NXP UCODE 8
EPC memory: 128 bit
User memory: N/A
TID: 96 bit factory locked (48 bit unique)
Read Sensitivity: -23dBm
Write Sensitivity: -18dBm
UHF RFID, EPC Gen2v2, ISO 18000-63, RAIN RFID
Extreme high sensitivity: read range up to 20m in free space
Zebra 10034078 RFID Label Overview
Zebra's Advanced RFID labels provide a higher level of read performance than our General Purpose RFID labels in similar applications. Typical applications include labeling of cases, pallets, products and healthcare specimens where longer read ranges are required. Zebra's RFID labels have been tested and optimized to work with Zebra's RFID printers and readers. Due to the many variables that can affect read range, we recommend testing in your environment to determine which label works best in your situation.
Full specifications (PDF)
