Zebra Silverline Blade II RFID Inlay Model Overview
Confidex Silverline Blade II is a high performing, on-metal label for the most demanding applications. It offers great size to performance ratio to be used in the tightest spaces. Confidex Silverline Blade II is ideal for asset tracking of small industrial assets, such as metal tools, and IT and handheld devices.
Key Features:
Provides high performance in a compact size
High tack adhesive for challenging surfaces
Optimized for metal surfaces, but works on any surface
Can be printed with standard RFID printers
Ideal for IT and handheld device tracking
Confidex Silverline Blade II is a high performing, and IT and handheld devices.
Application Areas:
Metal tools and components, small IT and handheld devices, industrial assets.
Printability:
Confidex Silverline Blade II can be personalized with a standard RFID label printer that supports the use of the belt. Recommended printers are e.g. Zebra ZT410 Silverline or ZT411 Silverline printers. Confidex Silverline Blade II can be encoded and printed with standard RFID printers using supported RFID printer drivers. The label surface is printable with standard resin ribbon with Zebra 5095 recommended.
Typical Applications:
IT and Handheld Device Tracking, Industrial Asset Management, Small Industrial Assets
Technical Specifications:

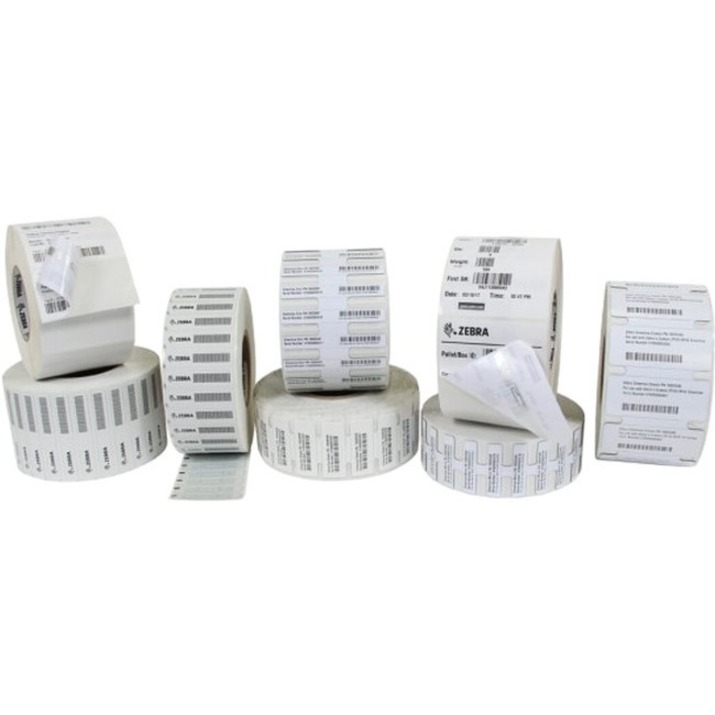

Zebra 10026767 RFID Label Overview
Label, Synthetic, 2.3594x0.9844in (60x25mm); TT, RFID Polyester with Foam, Coated, High Performance Acrylic Adhesive, 3in (76.2mm) core, RFID, 400/roll, 1/box, Plain
What is the read range of the Zebra Silverline Blade II RFID tag on metal surfaces?
The Zebra Silverline Blade II RFID tag delivers a read range of up to 10 meters (33 feet) on metal surfaces, which is 2.2 times greater than its predecessor. This enhanced performance on metal makes it ideal for tracking metal drums, equipment, and other challenging metallic assets in warehouse and industrial environments.
How does the Silverline Blade II compare to the previous generation RFID tag?
The Silverline Blade II offers significant improvements over its predecessor, with 2.2 times greater read range on metal surfaces and 3.3 times greater read range on plastic surfaces. It features the new Impinj M730 chip and has been redesigned with higher foam thickness to deliver consistent performance in demanding RFID applications.
What are the typical applications for the Zebra Silverline Blade II RFID label?
The Silverline Blade II is designed for IT and handheld device tracking, industrial asset management, and small industrial assets. It's particularly well-suited for asset tracking of chemical drums, mobile computers, printers, antennas, wheelchairs, IV pumps, and other high-value equipment in healthcare, manufacturing, and logistics settings.
What chip does the Silverline Blade II use and what are its specifications?
The Silverline Blade II is equipped with the Impinj M730 chip, which provides superior read performance and consistency in demanding RFID applications. The label measures 2.3594 x 0.9844 inches (60 x 25mm), features a synthetic polyester construction with foam backing, and comes with high-performance acrylic adhesive suitable for thermal transfer printing.
Can the Silverline Blade II RFID tag be used on both metal and non-metal surfaces?
Yes, the Silverline Blade II is designed to perform exceptionally well on both metal and non-metal surfaces. It achieves read ranges up to 10 meters on metal and up to 5 meters (16 feet) on plastic surfaces, making it versatile for diverse asset tracking applications across different material types.
What ribbon is recommended for printing Zebra Silverline Blade II RFID labels?
We recommend using Zebra 5095 standard resin ribbon for optimal printing results with the Silverline Blade II labels. For availability and to ensure you have the correct supplies for your RFID labeling setup, contact us today or visit barcodesinc.com to explore our complete ribbon selection.
The Zebra 10026767 RFID Label is also known as
ZEB-10026767
or 10026767.
Full specifications (PDF)
