Zebra 10026646 RFID Label

Part Number: 10026646
Model: RFID Labels
Add to My Shopping List Add to Compare
Discontinued See Replacement
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Label Width
4"
Label Length
6"
Number of Labels per Roll
200
Core Diameter
3"

Product Description:

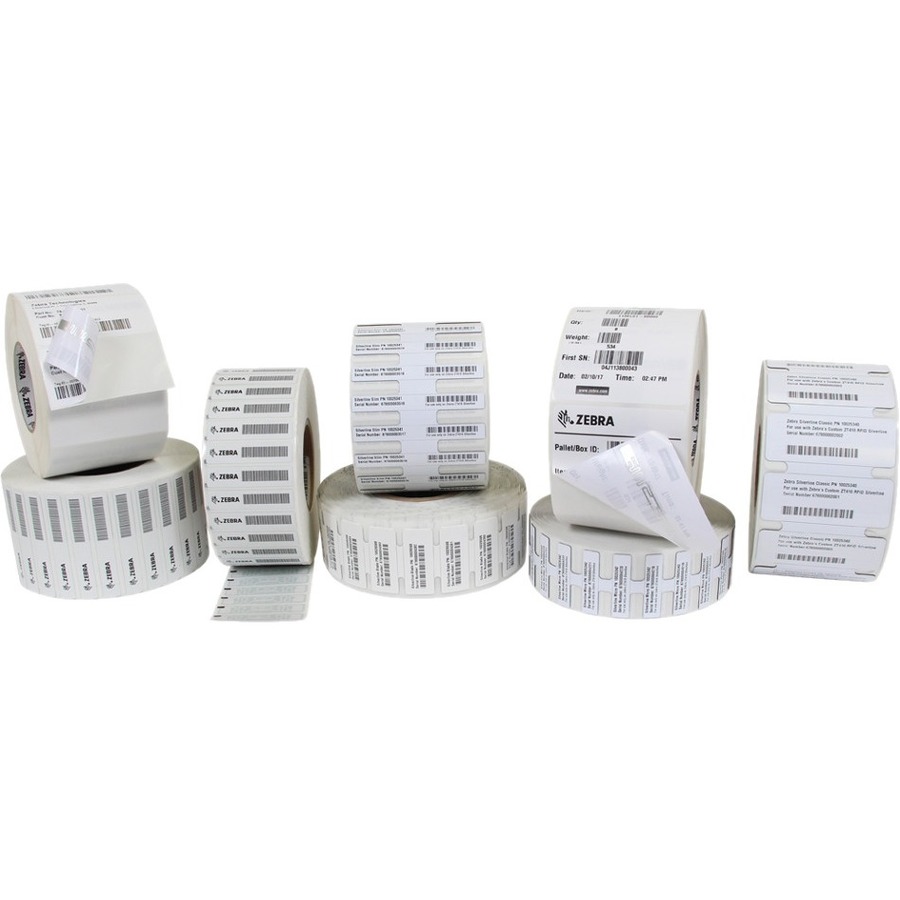

  RFID Labels, Zebra Z-Perform 1500T, Advanced, 4" x 6" (101.6mm x 152.4mm), Thermal Transfer, Permanent Adhesive, Not Perforated, Zebra ZBR4000 Inlay, 3" Core, 5" OD. 200 Labels/Roll, 2 Roll Per Case, Priced Per Case. Compatible With ZD621R/ZD500R/RXi4/ZT400R/ZT600R
Explore all Zebra ZBR4000 RFID Inlays
Add to Quote
Zebra 10026646 RFID Label
Zebra 10026646 RFID Label
Zebra 10026646 RFID Label
Zebra 10026646 RFID Label
Zebra 10026646 RFID Label Zebra 10026646 RFID Label Zebra 10026646 RFID Label

Full specifications (PDF)

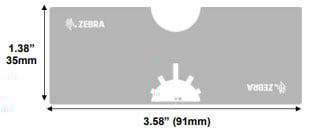

Zebra ZBR4000 RFID Inlay Model Overview

The Zebra ZBR4000 RFID tag is for general use in applications for transportation, logistics, product manufacturing, and healthcare. Its primary use is in boxes and pallets for product identification and asset tracking.

It has a very high sensitivity, offering reading ranges of over 20 meters in open spaces. It incorporates the NXP UCODE 8 chip with a 128-bit EPC memory and 96 bits of factory-locked TID (48 unique bits). The reading sensitivity is -23 dBm, and the writing sensitivity is -18 dBm. Its dimensions are 15 mm x 35 mm.

DETAILS
  • Advanced inlay
  • Optimized to be read from nearly any angle
  • Performs well when placed on or near challenging materials (i.e. pallets, freight)
  • Best in class read accuracy with overhead readers like Zebra ATR7000
  • Applications: Case / Pallet, Freight, Assets
  • Meets Auburn ARC Specs: A,B,C,D,F,G,I,K,L,M,N,Q,U

TECHNICAL INFORMATION
  • Chip: NXP UCODE 8
  • EPC memory: 128 bit
  • User memory: N/A
  • TID: 96 bit factory locked (48 bit unique)
  • Read Sensitivity: -23dBm
  • Write Sensitivity: -18dBm
  • UHF RFID, EPC Gen2v2, ISO 18000-63, RAIN RFID
  • Extreme high sensitivity: read range up to 20m in free space


Zebra 10026646 RFID Label Overview
Thermal transfer RFID labels - pair with Zebra's 6000 wax or 3200 wax/resin ribbon For use with Zebra's ZD500R, RXi4, ZT400R and ZT600R printers
Full specifications (PDF)
Product Information
Label Width:
4"
Label Length:
6"
Number of Labels per Roll:
200
Core Diameter:
3"
Adhesive Type:
Permanent
Shape:
Rectangle
Print Technology:
Thermal Transfer
Printable:
Yes
Physical Characteristics
Product Material:
Paper
Miscellaneous
Compatibility:
Zebra Printers:
  • ZD500R
  • RXi4
  • ZT400R
  • ZT600R
Item Numbers
UNSPSC: 55121600
The Zebra 10026646 RFID Label is also known as ZEB-10026646
