Zebra 10026646-R RFID Label
Part Number:
10026646-R
Model:
RFID Labels
Full specifications (PDF)
Zebra ZBR4000 RFID Inlay Model Overview
The Zebra ZBR4000 RFID tag is for general use in applications for transportation, logistics, product manufacturing, and healthcare. Its primary use is in boxes and pallets for product identification and asset tracking.

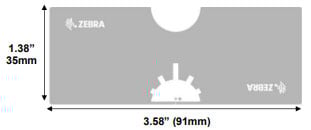

It has a very high sensitivity, offering reading ranges of over 20 meters in open spaces. It incorporates the NXP UCODE 8 chip with a 128-bit EPC memory and 96 bits of factory-locked TID (48 unique bits). The reading sensitivity is -23 dBm, and the writing sensitivity is -18 dBm. Its dimensions are 15 mm x 35 mm.
DETAILS
- Advanced inlay
- Optimized to be read from nearly any angle
- Performs well when placed on or near challenging materials (i.e. pallets, freight)
- Best in class read accuracy with overhead readers like Zebra ATR7000
- Applications: Case / Pallet, Freight, Assets
- Meets Auburn ARC Specs: A,B,C,D,F,G,I,K,L,M,N,Q,U
TECHNICAL INFORMATION
- Chip: NXP UCODE 8
- EPC memory: 128 bit
- User memory: N/A
- TID: 96 bit factory locked (48 bit unique)
- Read Sensitivity: -23dBm
- Write Sensitivity: -18dBm
- UHF RFID, EPC Gen2v2, ISO 18000-63, RAIN RFID
- Extreme high sensitivity: read range up to 20m in free space
Brand
Zebra
Model
Z-Perform 1500T
Inlay
ZBR4000
Labels Per Roll
200
Surface Type
Metals
Antenna/Chip
UCODE 8
Material
Paper
Width
4"
Length
6"
Color
White
Perforated
Non-perforated
Adhesive
Permanent
Core Inner Diameter
3 inches
Outer Diameter
5
