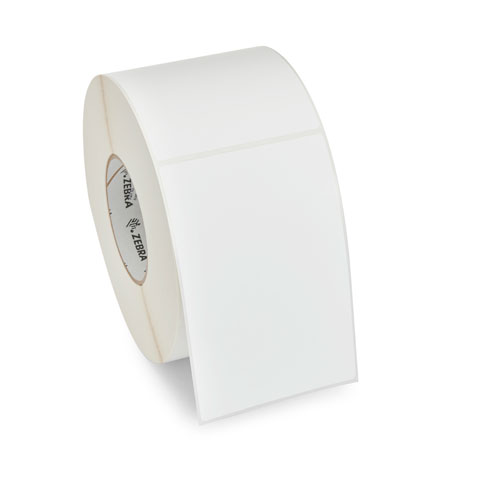

Zebra 10026641 RFID Label

Part Number: 10026641
Model: Z-Perform 1500T
Add to My Shopping List Add to Compare
Discontinued Need Assistance?
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Label Width
3 13/16"
Label Length
1 1/16"
Number of Labels per Roll
1000
Core Diameter
3"

Product Description:

  RFID Label, Zebra Z-Perform 1500T, RFID, Label, Paper, 97 x 27mm, Smartrac DogBone / UCODE 8, Thermal Transfer, Z-Perform 1500T, Coated, Permanent Adhesive, 76.2mm Core
Explore all Zebra DogBone RFID Inlays
Add to Quote
Zebra 10026641 RFID Label
Zebra 10026641 RFID Label
Zebra 10026641 RFID Label
Zebra 10026641 RFID Label
Zebra 10026641 RFID Label
Zebra 10026641 RFID Label Zebra 10026641 RFID Label Zebra 10026641 RFID Label Zebra 10026641 RFID Label

Full specifications (PDF)

Zebra DogBone RFID Inlay Model Overview

This DogBone inlay is a highly popular choice across various industries. The UHF RFID tag is commonly used in distribution centers, RFID-timed race events, supply chains, and on returnable transport items, among other applications. Renowned for its reliability and versatility, the DogBone RFID tag has achieved widespread adoption across numerous sectors.

DETAILS
• Advanced Inlay
• Optimized to be read from nearly any angle
• Performs well when placed on or near
challenging materials (i.e. pallets, freight)
• Pre-tested with Zebra printers and readers
• Applications: Case / Pallet, Freight, Assets

TECHNICAL INFORMATION
• Chip: NXP UCODE 8
o Extreme high sensitivity chip with read
ranges of up to 20m
o EPC memory: 128 bit
o User memory: N/A
o TID: 96 bit factory locked (48 bit unique)
o Read Sensitivity: -23dBm
o Write Sensitivity: -18dBm
o UHF RFID, EPC Gen2v2, ISO 18000-63,
RAIN RFID
• Extreme high sensitivity: read range up to 19m in
free space

Zebra 10026641 RFID Label Overview
Thermal transfer RFID labels - pair with Zebra's 6000 wax or 3200 wax/resin ribbon For use with Zebra's ZD500R, RXi4, ZT400R and ZT600R printers
Full specifications (PDF)
Product Information
Label Width:
3 13/16"
Label Length:
1 1/16"
Number of Labels per Roll:
1000
Core Diameter:
3"
Shape:
Rectangle
Print Technology:
Thermal Transfer
Physical Characteristics
Product Material:
Paper
Miscellaneous
Compatibility:
Zebra Printers:
  • ZD500R
  • RXi4
  • ZT400R
  • ZT600R
Item Numbers
UNSPSC: 55121600
The Zebra 10026641 RFID Label is also known as ZEB-10026641 or 10026641.
