Full specifications (PDF)
Print Technology:
Thermal Transfer

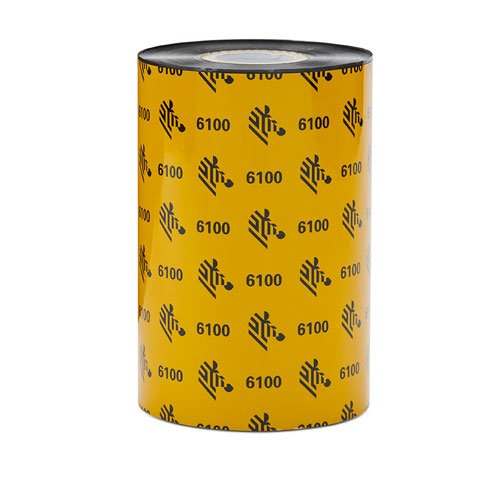

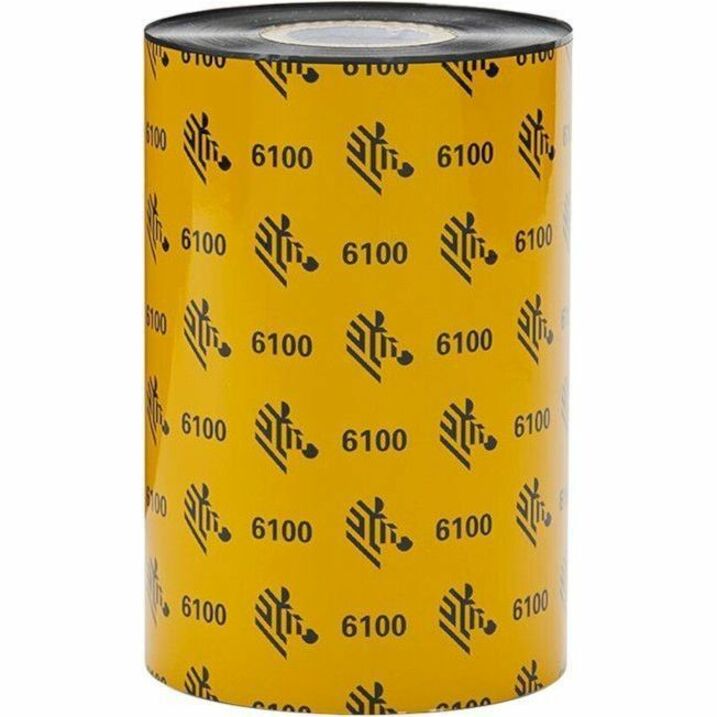

Zebra 06100ZD25707 Ribbon
Part Number:
06100ZD25707
Model:
6100 Wax/Resin
Zebra 6100 Wax/Resin Ribbon Model Overview
A standard wax/resin thermal transfer ribbon is a special ink formulation for use with Zebra thermal transfer printers. This ribbon provides outstanding print quality combined with chemical and solvent resistance. By providing smear and scratch resistance on Zebra coated paper and matte synthetic label stocks, this ribbon results in excellent staying power and durability in harsh environments.
UL/ cUL / CSA Certifications with the following materials:
- Z-Xtreme 4000T White and Silver
- Z-Xtreme 4000T High-Tack White and Silver
Recommended Storage Conditions: 72° F (22° C) at 50% RH
Shelf Life 1 year
SUGGESTED APPLICATIONS
• Labels exposed to solvents and chemicals
• Labels subject to abrasion or friction
• Outdoor labeling applications in extreme environments
• Chemical drum labeling applications
• Labels exposed to water, steam, alkali or acid solutions
Zebra 06100ZD25707 Ribbon Overview
A standard wax/resin formulation for use with Zebra thermal transfer printers. Provides outstanding barcode print quality. Chemical resistant when printed on Zebra paper and synthetic label stocks. Smear- and scratch-resistant, this ribbon offers excellent staying power and durability in harsh environments. UL recognized when used in conjunction with selected Zebra materials.
Technical Information
Physical Characteristics
Width:
2.3"
Miscellaneous
Device Supported:
Printer
Compatibility:
Zebra Thermal Transfer Printers
Brand Compatibility:
Zebra
Item Numbers
UNSPSC:
44103112
Frequently Asked Questions
What materials work best with the Zebra 6100 Wax/Resin ribbon?
The Zebra 6100 Wax/Resin ribbon is engineered to provide excellent print quality on coated paper and matte synthetic label stocks. This formulation delivers superior smear and scratch resistance on these materials, making it ideal for applications requiring durability in harsh industrial environments. We offer this ribbon for customers who need a balance of performance and cost-effectiveness across a wide range of labeling applications.
Is the Zebra 6100 Wax/Resin ribbon suitable for chemical and solvent exposure?
Yes, the Zebra 6100 Wax/Resin ribbon is specifically designed with chemical and solvent resistance, making it excellent for labels exposed to harsh conditions. It's recommended for applications including labels exposed to solvents and chemicals, chemical drum labeling, and labels exposed to water, steam, alkali or acid solutions. The ribbon's formulation provides outstanding staying power and durability in these demanding environments.
What are the specifications for the Zebra 06100ZD25707 ribbon core and dimensions?
The Zebra 06100ZD25707 ribbon features a 57mm x 74m (2.24" x 242') size with a standard 12mm (0.5") core. Available configurations of the Zebra 6100 Wax/Resin line also include larger options such as 60mm x 450m with a 25mm (1") core. Contact us today at barcodesinc.com to find the exact specifications and configurations that match your printer requirements.
What outdoor and extreme environment applications is this ribbon recommended for?
The Zebra 6100 Wax/Resin ribbon is engineered for outdoor labeling applications in extreme environments where labels face abrasion, friction, and exposure to harsh weather conditions. Its superior durability and resistance to smudging and scratching make it suitable for industrial applications requiring long-lasting label performance. We recommend this ribbon for any application where labels must maintain print quality and readability despite environmental stress.
How does the Zebra 6100 compare to other Zebra ribbon formulations?
The Zebra 6100 Wax/Resin offers a standard wax/resin formulation that balances performance and price, making it ideal for general industrial applications on coated paper and matte synthetics. For comparison, Zebra also offers the 3200 High-Performance Wax/Resin for enhanced durability, and resin-based options like the 5100 Premium Resin for gloss synthetics requiring maximum chemical resistance. Visit barcodesinc.com to explore all available ribbon options and find the best match for your specific application requirements.
What storage conditions and shelf life should I follow for the Zebra 6100 ribbon?
The Zebra 6100 Wax/Resin ribbon should be stored at 72°F (22°C) at 50% relative humidity for optimal performance. The ribbon maintains a shelf life of one year under these recommended storage conditions. Proper storage ensures consistent print quality and ribbon performance when you're ready to use it in your thermal transfer printer.
The Zebra 06100ZD25707 Ribbon is also known as
ZEB-06100ZD25707
or 06100ZD25707.
