A standard wax/resin thermal transfer ribbon is a special ink formulation for use with Zebra thermal transfer printers. This ribbon provides outstanding print quality combined with chemical and solvent resistance. By providing smear and scratch resistance on Zebra coated paper and matte synthetic label stocks, this ribbon results in excellent staying power and durability in harsh environments.
UL/ cUL / CSA Certifications with the following materials:
Z-Xtreme 4000T White and Silver
Z-Xtreme 4000T High-Tack White and Silver
Recommended Storage Conditions: 72° F (22° C) at 50% RH
Shelf Life 1 year
SUGGESTED APPLICATIONS
• Labels exposed to solvents and chemicals
• Labels subject to abrasion or friction
• Outdoor labeling applications in extreme environments
• Chemical drum labeling applications
• Labels exposed to water, steam, alkali or acid solutions

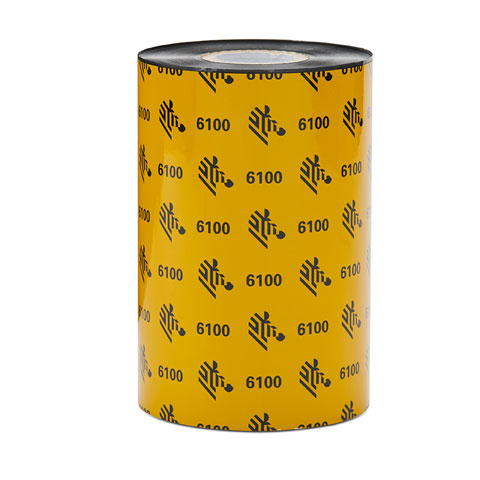

Zebra 06100BK06045 Ribbon Overview
6100 A high-performance wax/resin formulation for use with Zebra thermal transfer printers. Provides outstanding barcode print quality. Chemical resistant when printed on Zebra paper and synthetic label stocks. Smear-and scratch resistant, this ribbon offer excellent staying power and durability in harsh environments. UL pending on selected materials.
What is the Zebra 6100 Wax/Resin ribbon best used for?
The Zebra 6100 Wax/Resin ribbon is ideal for applications requiring a balance of performance and price in harsh industrial environments. It's particularly suited for labels exposed to solvents, chemicals, abrasion, friction, water, steam, and extreme outdoor conditions—making it excellent for chemical drum labeling, shipping and receiving, and inventory tracking in warehouses and logistics operations.
What label materials are compatible with the Zebra 6100 Wax/Resin ribbon?
The Zebra 6100 Wax/Resin ribbon provides excellent print quality on coated paper and matte synthetic label stocks. It's engineered to deliver superior durability and resistance to smudging and scratching across this wide range of materials, making it versatile for various industrial labeling needs.
How does the Zebra 6100 Wax/Resin ribbon resist damage in harsh environments?
This ribbon combines wax and resin formulations to provide outstanding chemical and solvent resistance along with smear and scratch resistance. The wax/resin blend delivers excellent staying power and durability when labels are exposed to harsh conditions including alkali or acid solutions, making it suitable for demanding warehouse and logistics applications.
What are the specifications for the Zebra 06100BK06045 ribbon configuration?
The standard configuration we offer is 60mm x 450m (2.36" x 1,476') with a 25mm (1") core, packaged 6 ribbons per box. This sizing is designed for standard thermal transfer printer compatibility and provides sufficient length for high-volume labeling operations in warehouse and distribution environments.
What certifications does the Zebra 6100 Wax/Resin ribbon hold?
The Zebra 6100 Wax/Resin ribbon carries UL, cUL, and CSA certifications, with specific approval for use on Zebra Z-Xtreme 4000T White and Silver label stocks in both standard and high-tack versions. These certifications ensure compliance with industrial safety and quality standards for demanding applications.
What are the proper storage conditions for the Zebra 6100 Wax/Resin ribbon?
We recommend storing this ribbon at 72°F (22°C) at 50% relative humidity with a shelf life of one year under these conditions. Proper storage ensures optimal print quality and ribbon performance when you're ready to deploy them in your warehouse or logistics operations.
The Zebra 06100BK06045 Ribbon is also known as
ZEB-06100BK06045
or 06100BK06045.
Full specifications (PDF)
