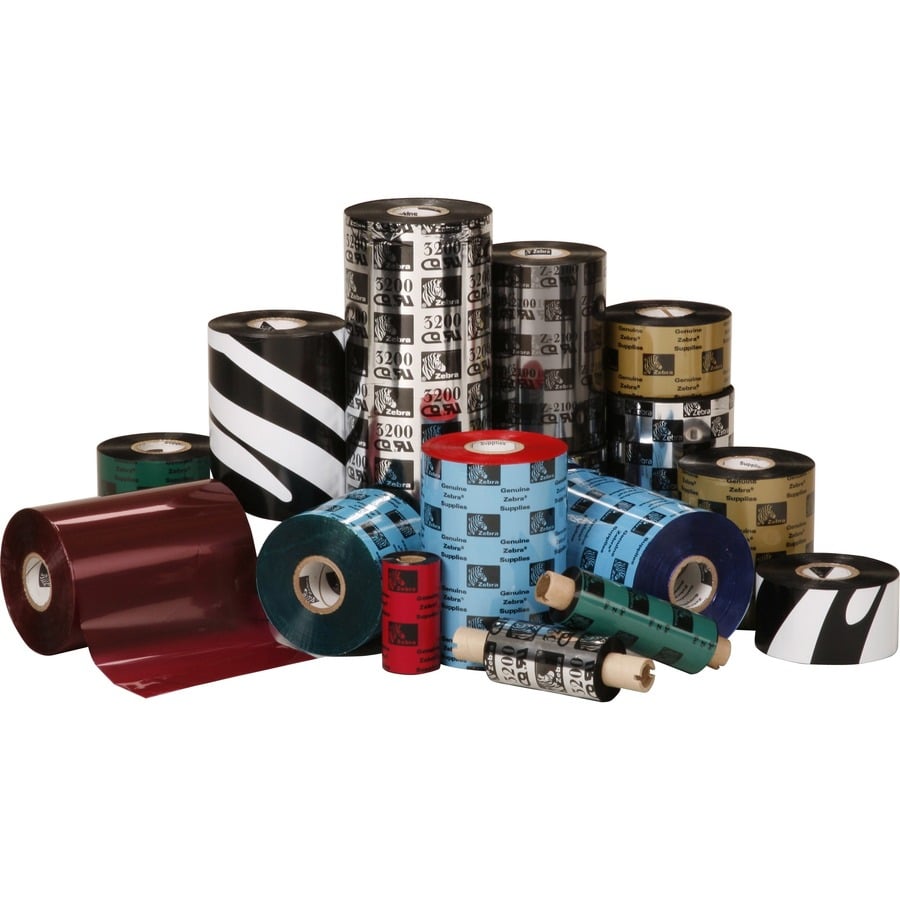

Zebra 06000BK15645 Ribbon
Zebra 6000 Wax Ribbon Model Overview
- Shelf and scan-pallet labels
- General purpose labeling
- Shipping and receiving
- Inventory tracking
- Warehousing
- Retail label / tags
| Attribute | Specification |
| Color | Black |
| Ink Formulation | Wax |
| Base Film | Polyester |
| Base Film Caliper | 4.5 microns |
| Total Caliper | 7.0 microns +/- 10% |
| Scanning Capabilities | IR and Visible Light |
A high-performance thermal transfer wax formulation that provides excellent print quality for normal and rotated barcodes on coated labels and tags. Its low printhead energy requirements for image tranfer make it the ideal choice for high-speed printing, up to 12 inches per second.
- S4M
- Z4M Plus
- Z6M Plus
- ZM400
- ZM600
- 105SL
- 105SL Plus
- 110XiIII Plus
- 110Xi4
- 140XiIII Plus
- 140Xi4
- 170XiIII Plus
- 170Xi4
- 220XiIII Plus
- 220Xi4
- ZT220
- ZT230
- ZT410
- ZT420
Frequently Asked Questions
What is the Zebra 6000 Wax ribbon best used for?
The Zebra 6000 Wax ribbon is ideal for inventory, shipping, and logistics applications where high-quality, durable barcodes are needed. It delivers superior print quality on both coated and uncoated labels with high-density blackness and excellent durability, making it perfect for shelf labels, scan-pallet labels, shipping and receiving, warehousing, and retail tags. We offer this ribbon as a cost-effective solution for high-speed printing needs up to 12 inches per second.
What are the specifications of the Zebra 06000BK15645 ribbon?
The Zebra 06000BK15645 is a thermal transfer wax ribbon measuring 156mm x 450m (6.14" x 1,476') with a 25mm (1") core. It features a 4.5 micron polyester base film with a total caliper of 7.0 microns, black wax ink formulation, and scanning capabilities for both IR and visible light. Each box contains 12 ribbons and is designed for print speeds up to 12 inches per second.
Can the Zebra 6000 Wax ribbon be used on uncoated paper labels?
The Zebra 6000 Wax ribbon is formulated as a standard wax ink for printing on coated paper stocks at high quality. While we recommend testing for use on non-coated paper stocks, the wax formulation provides good edge definition and smear resistance across a wide range of papers. Contact us today if you need guidance on specific label materials for your application.
How does the Zebra 6000 Wax ribbon compare to the Zebra 1600 Wax ribbon?
The Zebra 6000 Wax ribbon is designed for higher-speed printing applications, supporting speeds up to 12 inches per second compared to the Zebra 1600 Wax's 10 inches per second maximum. Both ribbons offer excellent quality on coated and uncoated papers with good smear and scratch resistance, but the 6000 series delivers superior print quality and higher-density blackness for demanding logistics and warehouse environments. Visit barcodesinc.com to compare available configurations and find the right ribbon for your printer.
What printer models are compatible with the Zebra 6000 Wax ribbon?
The Zebra 6000 Wax ribbon is compatible with Zebra thermal transfer printers that support standard 25mm (1") core ribbons. The ribbon's 156mm width and 450m length work with most mid-range to industrial Zebra label printers. Contact us today with your specific printer model, and our team can confirm compatibility and recommend the right ribbon configuration for your equipment.
What environmental conditions is the Zebra 6000 Wax ribbon suitable for?
The Zebra 6000 Wax ribbon is designed for thermal transfer printing in operating temperatures from 40°F to 104°F (5°C to 40°C) with humidity levels between 20-85% non-condensing. The wax formulation provides excellent durability and smear resistance, making it suitable for warehouse, shipping, and logistics environments where labels experience handling and environmental exposure. Available from us in bulk quantities of 12 ribbons per box for high-volume operations.
