A standard wax ink formulation for printing high-quality, durable bar codes on Zebra’s coated paper stocks at print speeds up to 12 inches per second. We recommend testing for use on non-coated paper stocks.
SUGGESTED APPLICATIONS
Shelf and scan-pallet labels
General purpose labeling
Shipping and receiving
Inventory tracking
Warehousing
Retail label / tags
TECHNICAL SPECIFICATIONS
Attribute
Specification
Color
Black
Ink Formulation
Wax
Base Film
Polyester
Base Film Caliper
4.5 microns
Total Caliper
7.0 microns +/- 10%
Scanning Capabilities
IR and Visible Light

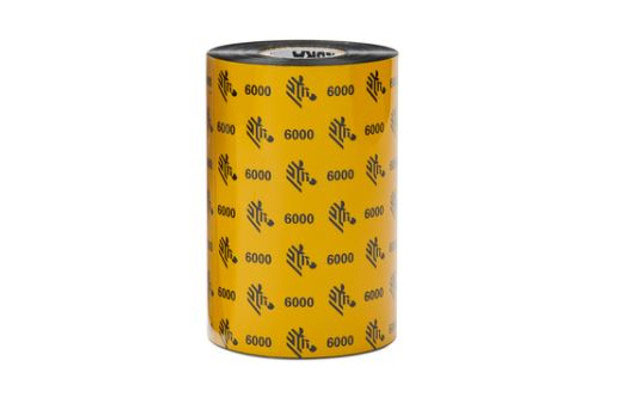

Zebra 06000BK08345 Ribbon Overview
6000 A high-performance thermal transfer wax formulation that provides excellent print quality for normal and rotated barcodes on coated labels and tags. Its low printhead energy requirements for image tranfer make it the ideal choice for high-speed printing, up to 12 inches per second.
What are the key specifications of the Zebra 6000 Wax ribbon?
The Zebra 6000 Wax ribbon features a polyester base film with a 4.5 micron ink formulation and 7.0 micron total caliper (±10%), delivering high-density black print quality. It supports print speeds up to 12 inches per second and is designed for both IR and visible light scanning capabilities, making it ideal for barcode applications in inventory, shipping, and logistics environments.
What label types work best with the Zebra 6000 Wax ribbon?
The Zebra 6000 Wax ribbon is formulated for superior print quality on coated paper stocks and can be used on uncoated papers with testing. It's recommended for shelf labels, scan-pallet labels, shipping and receiving tags, inventory tracking labels, warehousing applications, and retail labels where durability and barcode clarity are essential.
How does the Zebra 6000 Wax compare to the Zebra 1600 Wax ribbon?
The Zebra 6000 Wax ribbon offers higher print speeds (up to 12 inches per second) compared to the Zebra 1600 Wax (up to 10 inches per second), making it better suited for high-speed printing operations. The 6000 series delivers superior print quality and durability, while the 1600 is positioned as an economy option for general-purpose labeling needs.
What are the dimensions and packaging details for this ribbon?
The Zebra 06000BK08345 ribbon measures 83mm x 450m (3.27" x 1476') with a 25mm (1") core, and comes packaged 24 rolls per box. This configuration is designed for high-volume printing operations where consistent ribbon supply and easy changeover are important.
Is the Zebra 6000 Wax ribbon suitable for high-speed production environments?
Yes, the Zebra 6000 Wax ribbon is specifically engineered for high-speed printing needs, supporting speeds up to 12 inches per second while maintaining excellent print quality and barcode readability. Its wax formulation provides smear and scratch resistance, making it reliable for demanding warehouse and logistics applications.
What makes the Zebra 6000 Wax ribbon cost-effective for my operation?
The Zebra 6000 Wax ribbon offers a cost-effective solution by combining high-speed printing capability with excellent durability and print quality on both coated and uncoated labels. This reduces label waste from poor print quality and minimizes downtime, while the wax formulation operates at lower temperatures than many alternative ribbon types, helping reduce energy costs. Contact us today to discuss volume pricing and find the right ribbon configuration for your operation.
The Zebra 06000BK08345 Ribbon is also known as
ZEB-06000BK08345
or 06000BK08345.
Full specifications (PDF)
