A standard wax ink formulation for printing high-quality, durable bar codes on Zebra’s coated paper stocks at print speeds up to 12 inches per second. We recommend testing for use on non-coated paper stocks.
SUGGESTED APPLICATIONS
Shelf and scan-pallet labels
General purpose labeling
Shipping and receiving
Inventory tracking
Warehousing
Retail label / tags
TECHNICAL SPECIFICATIONS
Attribute
Specification
Color
Black
Ink Formulation
Wax
Base Film
Polyester
Base Film Caliper
4.5 microns
Total Caliper
7.0 microns +/- 10%
Scanning Capabilities
IR and Visible Light

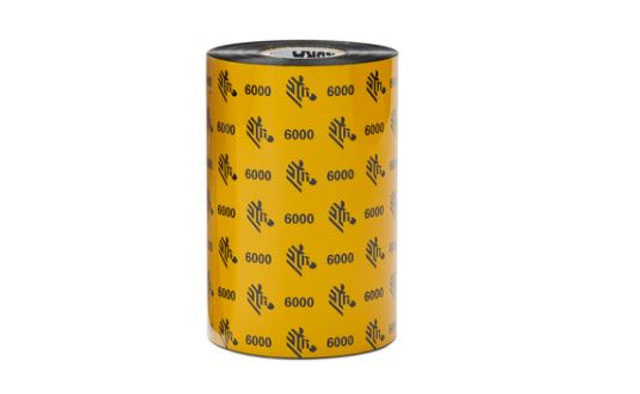

Zebra 06000BK06045 Ribbon Overview
6000 A high-performance thermal transfer wax formulation that provides excellent print quality for normal and rotated barcodes on coated labels and tags. Its low printhead energy requirements for image tranfer make it the ideal choice for high-speed printing, up to 12 inches per second.
The Zebra 6000 Wax ribbon is ideal for inventory, shipping, logistics, and general-purpose labeling applications including shelf labels, scan-pallet labels, and receiving operations. Its high-density blackness and excellent durability make it perfect for warehouse and retail environments where barcode quality and longevity are critical. We offer this ribbon as a cost-effective solution for high-speed printing needs up to 12 inches per second.
What are the specifications of the Zebra 06000BK06045 ribbon?
The Zebra 06000BK06045 is a thermal transfer ribbon with dimensions of 60mm x 450m (2.36" x 1476'), featuring a 25mm (1") core and packaged 24 per box. It uses a standard wax ink formulation with a 4.5 micron polyester base film and 7.0 micron total caliper. The ribbon supports both IR and visible light scanning capabilities for reliable barcode readability.
Can the Zebra 6000 Wax ribbon be used on uncoated paper?
The Zebra 6000 Wax ribbon is formulated as a standard wax ink for printing on Zebra's coated paper stocks with excellent results. However, we recommend testing this ribbon on non-coated paper stocks before full production deployment, as performance may vary depending on the specific label material used.
What is the difference between Zebra 6000 Wax and Zebra 6100 Wax/Resin ribbons?
The Zebra 6000 Wax ribbon is optimized for general-purpose labeling on coated and uncoated papers, while the Zebra 6100 Wax/Resin ribbon provides enhanced chemical and solvent resistance for harsh environments. If your labels will be exposed to solvents, chemicals, water, steam, or extreme conditions, the 6100 Wax/Resin formulation offers superior durability and staying power. Contact us today to determine which ribbon best fits your specific application requirements.
What print speeds does the Zebra 6000 Wax ribbon support?
The Zebra 6000 Wax ribbon delivers high-quality barcode printing at speeds up to 12 inches per second, making it suitable for high-speed production environments. This speed capability, combined with its excellent print quality and durability, makes it a reliable choice for busy warehouse and logistics operations. Visit barcodesinc.com to explore compatible Zebra thermal transfer printers for your operation.
How should the Zebra 6000 Wax ribbon be stored?
For optimal performance and shelf life, store Zebra thermal transfer ribbons at 72°F (22°C) at 50% relative humidity with a recommended shelf life of one year. Proper storage conditions help maintain the ribbon's ink formulation integrity and ensure consistent print quality when you're ready to use it. Contact us today if you need guidance on storage best practices or bulk ordering for your facility.
The Zebra 06000BK06045 Ribbon is also known as
ZEB-06000BK06045
or 06000BK06045.
