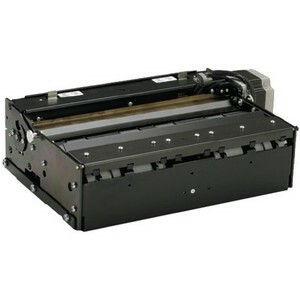

Zebra 01744-216 Receipt Printer


0.0

(No reviews)

Be the first to

Write a Review
Zebra TTP 8200 - Standard, 203 dpi, 216 mm, cutter and presenter. Interface cable and power supply sold separately.
Direct thermal receipt printing for A4 or letter size media

The Zebra TTP 8000 series kiosk printers offer 203 dpi resolution for full-format A4 or letter-size printouts of forms, bank statements, maps, or Web pages. The fast, compact and low-maintenance design makes these printers ideal for unattended environments. The pull detector and jam-preventing loop presenter provide trouble-free operation. The retract function keeps sensitive documents from being left behind outside the kiosk, and it saves media. If a printout is not taken from the printer, the output will be retracted, and the remaining information can be deleted from the queue, eliminating unwanted print jobs. The TTP 8200 is available in three configurations for flexible kiosk integration: standard, compact, and vertical, each equipped with standard USB and parallel interfaces. For additional configuration flexibility, the media can be mounted either behind or below the printer. For applications requiring crisp images, Zebra offers the TTP 8300 kiosk printer with 300 dpi resolution.

Technical Information

  • Maximum Mono Print Speed: 3.94 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 8.50"
  • Recommended Use: Receipt Print
  • Features: Cutter
  • Barcode Symbology Supported: Code 39

General Information

  • Product Type: Direct Thermal Printer
  • Product Series: TTP 8000
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: TTP 8200
  • Product Name: TTP 8200 Receipt Printer

Physical Characteristics

  • Form Factor: Desktop

Media Types & Handling

  • Maximum Label Width: 8.50"
  • Media Type:
    • Fanfold
    • Roll Paper
    • Receipt
  • Media Size:
    • A4
    • Letter
  • Media Thickness: 3.94 mil
  • Media Sensor:
    • Out Of Paper Sensor
    • Reflective Media Sensor
    • Paper Low Sensor
  • Label Core Size: 2"
  • Maximum Roll Diameter: 9.84"

Other

  • Platform Supported: PC

Full specifications (PDF)

Full specifications (PDF)

Brand Zebra
Model TTP 8000
Interface USB, Parallel
Cutter Option Auto-Cutter
Print Method Thermal
Print Width 8.5 inches
Print Speed 4.0 inches
Color Black
Form Factor Kiosk
Magstripe Option No Magstripe


Customer Review Summary

Recommended Accessories for Model: Zebra TTP 8000 Printer
Zebra (G01579-400)
Paper Low and Weekend Sensors with 400 mm cable
Ships in 3-5 Days
$34.00
+ Add to Quote
Zebra (90108)
TTP 8000 Accessory Kit Roll Holder Below - US plug. Includes: Roll Holder Below, includes Paper Low and Weekend Sensors, 250 mm dia max, Power supply 24V, 150W with On/Off switch, AC power cable - US plug, USB cable, 1.8 m (6 ft.)
Ships in 3-5 Days
$480.70
+ Add to Quote
Zebra (90107)
TTP 8000 Accessory Kit Roll Holder Behind - US plug. Includes: Roll Holder Behind, 216 mm, includes Paper Low Sensor, 150 mm dia max, Power supply 24V, 150W with On/Off switch, AC power cable - US plug, USB cable, 1.8 m (6 ft.)
Ships in 3-5 Days
$287.00
+ Add to Quote
Zebra (105154)
TTP8000 Roll Holder Below, 216 mm, includes Paper Low and Weekend Sensors, 250 mm diameter max (use with standard printers - 01744-216 and 01745-216)
Ships in 3-5 Days
$250.00
+ Add to Quote
Zebra (102775)
Paper Low sensor (for use with 01861-210 and 01861-216)
Ships in 3-5 Days
$33.60
+ Add to Quote
Protect Your Product
Zebra Service Contract - 2 year (Z1RS-TP82-2C0)
Select, Renewal, Advanced Exchange, TTP8200, TTP8300, 2 Years, Comprehensive
Ships in 3-5 Days
$301.70
+ Add to Quote
Zebra Service Contract - 1 year (Z1RS-TP82-1C0)
Select, Renewal, Advanced Exchange, TTP8200, TTP8300, 1 Years, Comprehensive
Ships in 3-5 Days
$164.60
+ Add to Quote
Zebra Service Contract - 2 year (Z1RF-TP82-2C0)
Essential, Renewal, NBD TAT, NA MX only, TTP8200, TTP8300, 2 Years, Comprehensive
Ships in 3-5 Days
$283.40
+ Add to Quote
Zebra Service Contract - 1 year (Z1RF-TP82-1C0)
Essential, Renewal, NBD TAT, NA MX only, TTP8200, TTP8300, 1 Years, Comprehensive
Ships in 3-5 Days
$155.40
+ Add to Quote
Zebra Service Contract - 2 year (Z1RE-TP82-2C0)
Essential, Renewal, 3 Day TAT NA, MX, 5 DAY TAT ROW, TTP8200, TTP8300, 2 Years, Comprehensive
Ships in 3-5 Days
$246.90
+ Add to Quote

The Zebra 01744-216 is also known as ZEB-01744-216 or 01744216 .
