Zebra FS80 Fixed Barcode Scanner
Zebra FS80 – Precision Scanning. Maximum Efficiency.
Zebra FS80 -

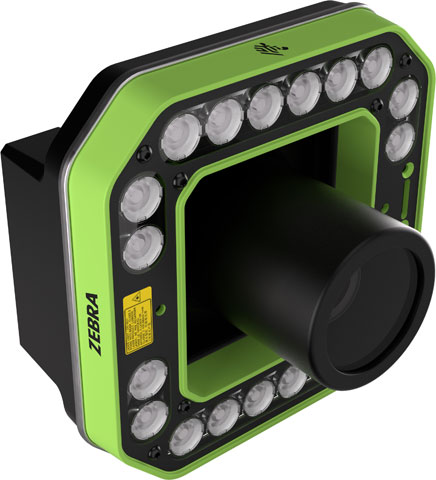

The Zebra FS80 is a high-performance fixed industrial scanner designed to handle the toughest track-and-trace challenges. With multiple sensor options up to 16MP, advanced lighting, and AI-powered OCR, it delivers lightning-fast, accurate barcode reading—even on high-speed production lines. Powered by Aurora Focus™, it simplifies setup, reduces downtime, and ensures seamless integration into any industrial automation system. Whether you need precision, speed, or scalability, the FS80 is built to keep your operations moving efficiently.
Full specifications (PDF)
Price Match Guarantee
Found a better price? We'll match it within 60 days of your purchase.
for Qty Discount
Add to Quote
Starting at:
$4,070.00
Get help from a Barcoding Expert!
Accessories For Zebra FS80 Fixed Barcode Scanner
Zebra FS80 Fixed Barcode Scanner Options
-
Zebra FS80-CM0507Z00W Fixed Barcode Scanner
Fixed Barcode Scanner, Zebra FS80, C-Mount Fixed Industrial Scanner: 5 MP, Standard 2D Barcode Decoder, USB and Industrial Protocols, Lens Not Included, Worldwide$4,125.00 -
Zebra FS80-CM0507H00W Fixed Barcode Scanner
Fixed Barcode Scanner, Zebra FS80, C-Mount Fixed Industrial Scanner: 5 MP, Standard 2D Barcode Decoder W/ DL OCR, USB and Industrial Protocols, Lens Not Included, Worldwide$5,096.25 -
Zebra FS80-CM0907Z00W Fixed Barcode Scanner
Fixed Barcode Scanner, Zebra FS80, C-Mount Fixed Industrial Scanner: 9 MP, Standard 2D Barcode Decoder, USB and Industrial Protocols, Lens Not Included, Worldwide$5,100.00 -
Zebra FS80-CM0507D00W Fixed Barcode Scanner
Fixed Barcode Scanner, Zebra FS80, C-Mount Fixed Industrial Scanner: 5 MP, DPM W/ Fast 2D Barcode Decoder, USB and Industrial Protocols, Lens Not Included, Worldwide$5,100.00 -
Zebra FS80-CM0907H00W Fixed Barcode Scanner
Fixed Barcode Scanner, Zebra FS80, C-Mount Fixed Industrial Scanner: 9 MP, Standard 2D Barcode Decoder W/ DL OCR, USB and Industrial Protocols, Lens Not Included, Worldwide$6,071.25 -
Zebra FS80-CM0507C00W Fixed Barcode Scanner
Fixed Barcode Scanner, Zebra FS80, C-Mount Fixed Industrial Scanner: 5 MP, DPM W/ Fast 2D Barcode Decoder W/ DL OCR, USB and Industrial Protocols, Lens Not Included, Worldwide$6,071.25 -
Zebra FS80-CM0907D00W Fixed Barcode Scanner
Fixed Barcode Scanner, Zebra FS80, C-Mount Fixed Industrial Scanner: 9 MP, DPM W/ Fast 2D Barcode Decoder, USB and Industrial Protocols, Lens Not Included, Worldwide$6,075.00 -
Zebra FS80-CM1207Z00W Fixed Barcode Scanner
Fixed Barcode Scanner, Zebra FS80, C-Mount Fixed Industrial Scanner: 12 MP, Standard 2D Barcode Decoder, USB and Industrial Protocols, Lens Not Included, Worldwide$6,375.00 -
Zebra FS80-CM0907C00W Fixed Barcode Scanner
Fixed Barcode Scanner, Zebra FS80, C-Mount Fixed Industrial Scanner: 9 MP, DPM W/ Fast 2D Barcode Decoder W/ DL OCR, USB and Industrial Protocols, Lens Not Included, Worldwide$7,046.25 -
Zebra FS80-CM1207H00W Fixed Barcode Scanner
Fixed Barcode Scanner, Zebra FS80, C-Mount Fixed Industrial Scanner: 12 MP, Standard 2D Barcode Decoder W/ DL OCR, USB and Industrial Protocols, Lens Not Included, Worldwide$7,346.25 -
Zebra FS80-CM1207D00W Fixed Barcode Scanner
Fixed Barcode Scanner, Zebra FS80, C-Mount Fixed Industrial Scanner: 12 MP, DPM W/ Fast 2D Barcode Decoder, USB and Industrial Protocols, Lens Not Included, Worldwide$7,350.00 -
Zebra FS80-CM1607Z00W Fixed Barcode Scanner
Fixed Barcode Scanner, Zebra FS80, C-Mount Fixed Industrial Scanner: 16 MP, Standard 2D Barcode Decoder, USB and Industrial Protocols, Lens Not Included, Worldwide$7,650.00 -
Zebra FS80-CM1207C00W Fixed Barcode Scanner
Fixed Barcode Scanner, Zebra FS80, C-Mount Fixed Industrial Scanner: 12 MP, DPM W/ Fast 2D Barcode Decoder W/ DL OCR, USB and Industrial Protocols, Lens Not Included, Worldwide$8,321.25 -
Zebra FS80-CM1607H00W Fixed Barcode Scanner
Fixed Barcode Scanner, Zebra FS80, C-Mount Fixed Industrial Scanner: 16 MP, Standard 2D Barcode Decoder W/ DL OCR, USB and Industrial Protocols, Lens Not Included, Worldwide$8,621.25 -
Zebra FS80-CM1607D00W Fixed Barcode Scanner
Fixed Barcode Scanner, Zebra FS80, C-Mount Fixed Industrial Scanner: 16 MP, DPM W/ Fast 2D Barcode Decoder, USB and Industrial Protocols, Lens Not Included, Worldwide$8,625.00
Zebra FS80 Fixed Barcode Scanner Model Overview
The FS80 is a high-performance fixed industrial scanner designed for track-and-trace applications in industries requiring high speed, precision, and power.
Key Features:
- Multiple Sensor Options: Available in 5MP, 9MP, 12MP, and 16MP resolutions.
- High-Performance Imaging: Capable of reading barcodes on fast-moving objects at a distance.
- Advanced Illumination & Lens Selection:
- High-powered illumination for various lighting conditions.
- Multiple lenses for optimized field of view (FOV) and depth of field (DOF).
- Smart Processing:
- Uses Intel Atom multi-core processors for faster barcode decoding.
- Can support single-camera and multi-camera configurations.
- Simplified Deployment & Management:
- Reduces the need for multiple conventional scanners.
- Managed via Aurora Focus™ software, allowing easy configuration and monitoring.
- Future Features (Software Update Required):
- Leader & Follower network support
- JavaScript support
- Expanded communication protocols (Ethernet/IP, Modbus, Profinet)

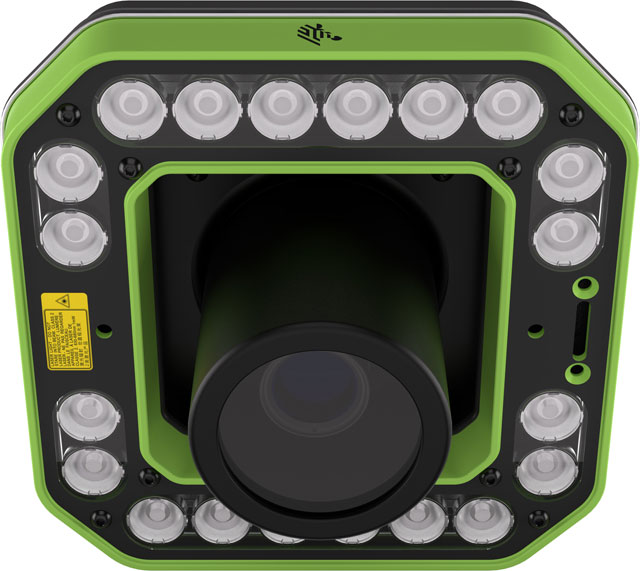

Zebra Integrated Multifunction Light (ZIML)
A high-efficiency illumination system designed for Zebra's industrial scanning solutions.
- Available in Standard & Premium models.
- Features 360-degree status LED indicators and configurable built-in speaker (Premium model only).
- Dual laser aimer for accurate camera positioning (Premium model only).
- Multiple light colors: White, Red, and Infrared.
- Adjustable lens angles (20, 40, 60, 80 degrees) for varied applications.
Software & Compatibility
- Powered by Aurora Focus™ (Version 9.0 or newer).
- Deep Learning OCR (factory-installed or software upgrade).
- Anomaly detection not currently supported.
