Zebra AN520 RFID Antenna

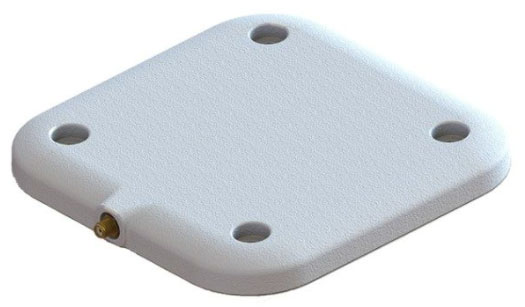

Zebra AN520  -  The Zebra AN520 RFID Antenna may be used in a range of indoor and outdoor applications when a small form factor is required. The AN520 RFID Antenna has a sleek and discreet exterior shell that can be integrated into any business while still being durable enough for outdoor industrial situations. The AN520 comes with a flush mount that may be used in a variety of settings.
Full specifications (PDF)

Price Match Guarantee

Found a better price? We'll match it within 60 days of your purchase.

Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Starting at:
$275.21
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

Zebra AN520 RFID Antenna
Zebra AN520 RFID Antenna
Accessories For Zebra AN520 RFID Antenna

Zebra AN520 RFID Antenna Options

Full specifications (PDF)

Zebra AN520 RFID Antenna Model Overview

Zebra's AN510 Ultra-Rugged, Low Profile Antenna is engineered to excel in diverse environments, ranging from outdoor settings to warehouse operations. With an IP67 rating, it withstands the rigors of harsh weather while delivering seamless performance. Its sleek design ensures it blends seamlessly into customer-facing areas, making it ideal for outdoor shopping, receiving dock doors, and more. Easy to install with versatile mounting options, the AN510 guarantees reliable communication with UHF RFID tags when paired with Zebra's Fixed RFID Readers, ensuring accuracy and efficiency in your RFID solutions.


Key features:
  • IP67 Rated: Suitable for rugged and extreme weather applications.
  • Compact Design: Low profile of 14 mm thick for discreet installation.
  • Versatile Mounting Options: Flush mount or VESA mount compatible.
  • Wide Operating Temperature Range: -20° to +55°C (-4° to +131°F).
  • High Gain: 8.5 dBic for superior read performance.

Specifications:
  • Dimensions: 250 mm x 250 mm x 14 mm (9.85 in. x 9.85 in. x 0.55 in.)
  • Polarization: Right-hand circular
  • Connector: SMA female
  • Weight: 1.6 lbs (0.75 kg)
  • Max Power: 3 Watts
  • VSWR: 1.3:1
  • Operating Temperature: -20° to +55°C (-4° to +131°F)
  • Storage Temperature: -30° to +65°C (-22° to +149°F)
  • Frequency Ranges: EU: 865-868 MHz, US: 902-928 MHz
  • IP Sealing: IP67
