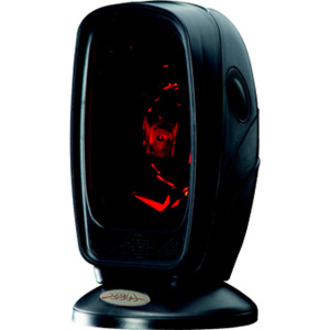

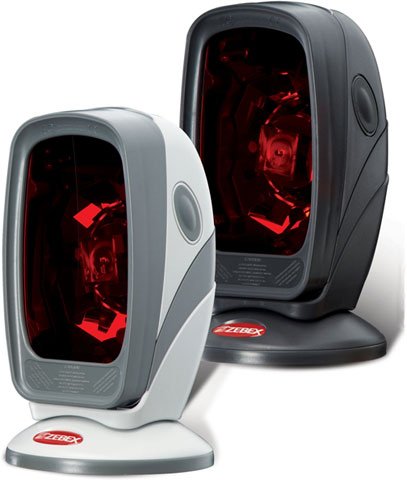

ZBA Z-6070 – Barcode Scanner

Experience unrivaled scanning performance with the Z-6070 Series 709 Dual-Laser Omnidirectional Scanner. With cutting-edge dual-laser technology, this scanner achieves an astounding 32-line scan pattern and an incredible 2,400 scans per second, ensuring lightning-fast and accurate barcode reads. Its versatile design allows for hands-free scanning while transforming seamlessly into a handheld device for oversized items. Featuring ZEBEX's advanced Z-SCAN technology, it effortlessly decodes 1D barcodes in real-time, improving efficiency and productivity across various applications, from point-of-sale systems to inventory management.

Key Features

• Dual-laser technology: Unprecedented 32-line scan pattern and 2,400 scans per second.
• Z-SCAN technology: Real-time hardware decoding for quick barcode recognition.
• Large scan field: 45° scan angle for enhanced productivity.
• Single-line scanning capability: Avoids reading incorrect barcodes.
• Barcode stitching: Rebuilds damaged barcodes for improved first-pass reads.
• Instant automatic wake-up: Conserves power with auto-sleep mode.
• Rugged scan window: Durable for protection against drops.
• Easy configuration: Simple setup and upgrade options.

Specifications

• Operational:
  • Light Source: Dual 650 nm visible laser diodes
  • Depth of Field: 0-216 mm
  • Width of Field: 45 mm x 2 @ contact, 218 mm @ 216 mm depth
  • Number of Scan Lines: 32
  • Scan Rate: 2,400 scans per second
  • Scan Pattern: 8 directions
  • Minimum Bar Width: 5 mil
  • Print Contrast: 90% PCS
  • Indicators: Two-color LED (green & red)
  • Beeper Operation: Programmable tone and beep time
  • System Interfaces: Keyboard, RS-232C, USB 1.1, wand
• Physical:
  • Dimensions: 181.5 mm (H) x 89.5 mm (D) x 85.0 mm (W)
  • Weight: 245 g (stand excluded)
  • Cable: Standard 2 m straight
  • Tilt: 8° forward; 6° backward
• Power:
  • Input Voltage: 5 VDC ±10%
  • Power Consumption: 1.35 Watts
  • Operating Current: 270 mA
• Regulatory:
  • Laser Class: CDRH Class IIa; IEC 60825-1: Class I
  • EMC: CE & FCC DOC compliance
• Environmental:
  • Operating Temperature: 0°C to 40°C
  • Storage Temperature: -20°C to 60°C
  • Humidity: 5%-90% RH (non-condensing)
  • Light Levels: Max. 4,000 LUX (fluorescent)
  • Shock: Designed to withstand 1m drops

Featuring the world's first dual laser technology, the Z-6070 presentation scanners represent the pinnacle of scanning performance. The first of its kind, the Z-6070 series utilizes two laser diodes that effectively double the scan lines, broaden scan angles and intensify scan pattern across the scan field. The result is the most powerful presentation scanner on the market today, boasting a 32-line scan pattern and a scan rate of an unprecedented 24,00 scans per second. ZEBEX proprietary Z-SCAN hardware decoding technology adds to an already impressive unit, enabling instant recognition and decoding of barcodes in real-time.
