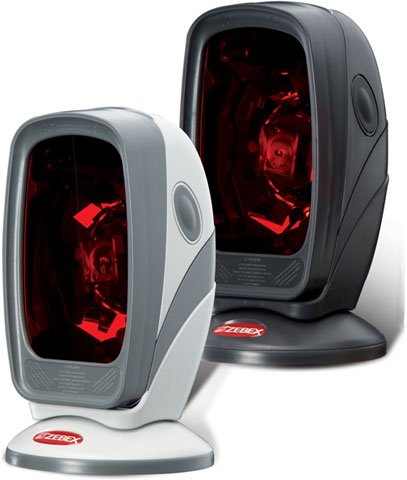

ZBA Z-6070 – Barcode Scanner

Experience unrivaled scanning performance with the Z-6070 Series 709 Dual-Laser Omnidirectional Scanner. With cutting-edge dual-laser technology, this scanner achieves an astounding 32-line scan pattern and an incredible 2,400 scans per second, ensuring lightning-fast and accurate barcode reads. Its versatile design allows for hands-free scanning while transforming seamlessly into a handheld device for oversized items. Featuring ZEBEX's advanced Z-SCAN technology, it effortlessly decodes 1D barcodes in real-time, improving efficiency and productivity across various applications, from point-of-sale systems to inventory management.

Key Features

• Dual-laser technology: Unprecedented 32-line scan pattern and 2,400 scans per second.
• Z-SCAN technology: Real-time hardware decoding for quick barcode recognition.
• Large scan field: 45° scan angle for enhanced productivity.
• Single-line scanning capability: Avoids reading incorrect barcodes.
• Barcode stitching: Rebuilds damaged barcodes for improved first-pass reads.
• Instant automatic wake-up: Conserves power with auto-sleep mode.
• Rugged scan window: Durable for protection against drops.
• Easy configuration: Simple setup and upgrade options.

Specifications

• Operational:
  • Light Source: Dual 650 nm visible laser diodes
  • Depth of Field: 0-216 mm
  • Width of Field: 45 mm x 2 @ contact, 218 mm @ 216 mm depth
  • Number of Scan Lines: 32
  • Scan Rate: 2,400 scans per second
  • Scan Pattern: 8 directions
  • Minimum Bar Width: 5 mil
  • Print Contrast: 90% PCS
  • Indicators: Two-color LED (green & red)
  • Beeper Operation: Programmable tone and beep time
  • System Interfaces: Keyboard, RS-232C, USB 1.1, wand
• Physical:
  • Dimensions: 181.5 mm (H) x 89.5 mm (D) x 85.0 mm (W)
  • Weight: 245 g (stand excluded)
  • Cable: Standard 2 m straight
  • Tilt: 8° forward; 6° backward
• Power:
  • Input Voltage: 5 VDC ±10%
  • Power Consumption: 1.35 Watts
  • Operating Current: 270 mA
• Regulatory:
  • Laser Class: CDRH Class IIa; IEC 60825-1: Class I
  • EMC: CE & FCC DOC compliance
• Environmental:
  • Operating Temperature: 0°C to 40°C
  • Storage Temperature: -20°C to 60°C
  • Humidity: 5%-90% RH (non-condensing)
  • Light Levels: Max. 4,000 LUX (fluorescent)
  • Shock: Designed to withstand 1m drops
