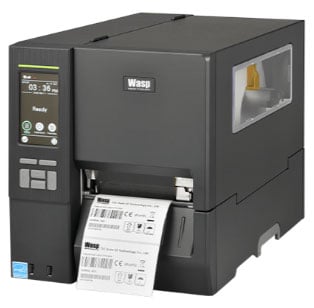

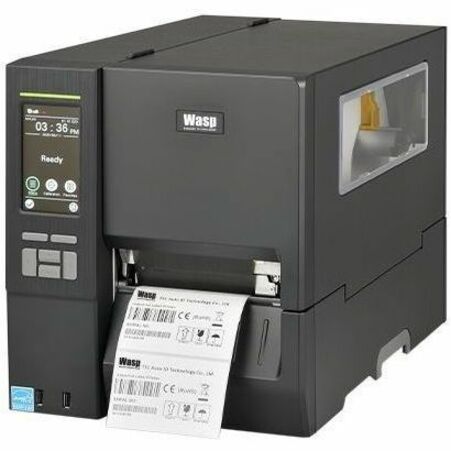

Wasp WPL614Plus – Barcode Label Printer

Part Number: 633809009341
Model: WPL614Plus
3-year Premium Plus ($154.00)
No, stay at premium support package
Add to My Shopping List Add to Compare
$1,604.91
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Recommended Use
Label Print
Print Color Capability
Monochrome
Maximum Mono Print Speed
14 in/s
Maximum Print Resolution (dpi)
203

Product Description:

  Barcode Label Printers, Wasp WPL614Plus, USB 2.0/RS-232 Serial/Internal Ethernet (10/100 Mbps)/USB Host, 256 MB SDRAM/512 MB Flash, 14 ips Max Print Speed, 4.09" Max Print Width, 1" Core, 203 dpi
Explore all Wasp WPL614Plus Barcode Label Printers
Add to Quote
Wasp 633809009341 Barcode Label Printer
Wasp 633809009341 Barcode Label Printer
Wasp 633809009341 Barcode Label Printer
Wasp 633809009341 Barcode Label Printer Wasp 633809009341 Barcode Label Printer Wasp 633809009341 Barcode Label Printer
Full specifications (PDF)

Wasp WPL614Plus Barcode Label Printer Model Overview

The WPL614Plus Barcode Label Printer is an industrial-grade printer engineered for exceptional durability and high-volume printing demands. With its ability to deliver near real-time information, this printer ensures your tracking processes are seamless and efficient. Designed for versatility, it supports a variety of media sensor settings and boasts dynamic remote management capabilities. Featuring reliable connectivity options, including Wi-Fi and Bluetooth, the WPL614Plus allows for smooth integration into your existing systems.


Key Features
  • Near real-time information for proactive decision making
  • Selectable media sensor settings for flexible usage
  • Dynamic remote printer management capabilities
  • GPIO support for common applicators and emulations
  • Wi-Fi & Bluetooth connectivity (802.11 a/b/g/n/ac)
  • Media near end sensor detection for timely alerts
  • Easy printhead & platen roller replacement for maintenance

Specifications
  • Resolution: 203 DPI (Upgradeable to 300 and 600 DPI)
  • Printing Method: Thermal Transfer & Direct Thermal
  • Max Print Speed: 14 IPS (356 mm/s)
  • Max Print Width: 4.09 in (104 mm)
  • Max Print Length: 1,000 in (25,400 mm)
  • Dimensions: 10.87 in (W) x 12.83 in (H) x 19.76 in (D)
  • Weight: 34.61 lbs. (15.70 kg)
  • Core Diameter: 1 in for ribbons (600 m long)
  • Processor: 32-bit RISC CPU with 512 MB Flash memory
  • Interface: USB 2.0, RS-232, Ethernet (10/100 Mbps)
  • Power: AC 100-240V, 4-2A, 50-60Hz
  • Operating Temperature: 32-104°F, 25-85% non-condensing
  • Storage Temperature: -40-140°F, 10-90% non-condensing
  • Warranty: 2-Year Limited (optional extended)
  • Included: Quick start guide, USB cable, Power cord
Wasp 633809009341 Barcode Label Printer Overview
WPL614Plus Industrial Barcode Printer The Wasp WPL614Plus industrial barcode printer features a user-friendly design built for long-lasting durability in high-volume print applications. The rugged WPL614Plus boasts print speeds of up to 14 inches per second at 203 DPI resolution and a processor/memory supported by 256 MB of SDRAM, and 512 MB of Flash memory. Not only is the WPL614Plus heavy-duty, but its easy-to-use and configure as well due to its direct thermal and thermal transfer printing capabilities, a 6-button color LCD resistive touch screen, and our new premium print head technology which alerts users in advance of when a replacement is needed. The WPL614Plus includes ZPL, EPL, DPL and WPL emulation to ensure application compatibility and flexibility. The printer is capable of seamless connectivity as its supported by both Apple-certified MFi Bluetooth 5.0 or 802.11 a/b/g/n/ac Wi-Fi with Bluetooth 4.2 combo module that turns the barcode label printer into a connected network. The Wasp WPL614Plus includes a 2-year manufacturers warranty covering material defects.
Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
14 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Length:
83.33 ft
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • 1D
  • Code 39
  • Code 93
  • Code 128 UCC
  • Codabar
  • Interleaved 2 of 5
  • EAN 128
  • UPC-A
  • UPC-E
  • EAN and UPC 2(5) Digits Add-On
  • MSI
  • Plessey
  • POSTNET
  • RSS Stacked
  • GS1 DataBar
  • Code 11
  • China Post
  • 2D
  • PDF-417
  • Maxi Code
  • Data Matrix
  • QR Code
  • AZTEC
Application/Usage:
  • Industrial
  • Manufacturing
  • Transportation & Logistic
  • Warehouse
  • Retail
Features:
  • Rugged
  • Durable
  • Easy to Use
Mobile Device Printing:
Yes
Wireless Print Technology:
Apple MFi Certified
Number of Users:
5
Connectivity Technology:
Wired & Wireless
Fonts Included:
  • 8 alpha-numeric bitmap fonts
  • Monotype Imaging true type font engine with one CG Triumvirate Bold Condensed scalable font
Duplex Printing:
Yes
Print Technology:
Direct Thermal /Thermal Transfer
Memory
Standard Memory:
256 MB
Flash Memory:
512 MB
Interfaces/Ports
USB:
Yes
USB Standard:
USB 2.0
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Bluetooth:
Yes
Bluetooth Version:
  • 4.2
  • 5.0
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11a/b/g/n/ac
Display & Graphics
Display Screen:
Yes
Screen Size:
4.3"
Display Screen Type:
LCD
Touchscreen:
Yes
Media Types & Handling
Media Type:
  • Die-cut Label
  • Black Mark
  • Fanfold
  • Notch
  • Tag
  • Perforated Paper
Media Sensor:
  • Multi-position Transmissive/Gap Sensor
  • Moveable Reflective/Black Mark Sensor
  • Head Open Sensor
  • Ribbon Encode Sensor
Fonts & Emulation
Language Emulation:
  • WPL
  • EPL
  • ZPL
  • ZPL II
  • DPL
Power Description
Power Source:
AC
Frequency:
  • 50 Hz
  • 60 Hz
Environmental Conditions
Operating Temperature:
32°F (0°C) - 104°F (40°C)
Storage Temperature:
-40°F (-40°C) - 140°F (60°C)
Physical Characteristics
Form Factor:
Desktop
Height:
12.8"
Width:
10.9"
Depth:
19.8"
Weight (Approximate):
34.61 lb
Miscellaneous
Package Contents:
  • WPL614Plus Industrial Barcode Printer
  • Quick Start guide
  • USB Cable
  • Power Cord
Cables Included:
  • RS-232
  • USB
  • AC
Energy Star:
Yes
Environmental Compliance:
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0633809009341
UPC: 633809009341
EAN: 0633809009341
UNSPSC: 43212108
