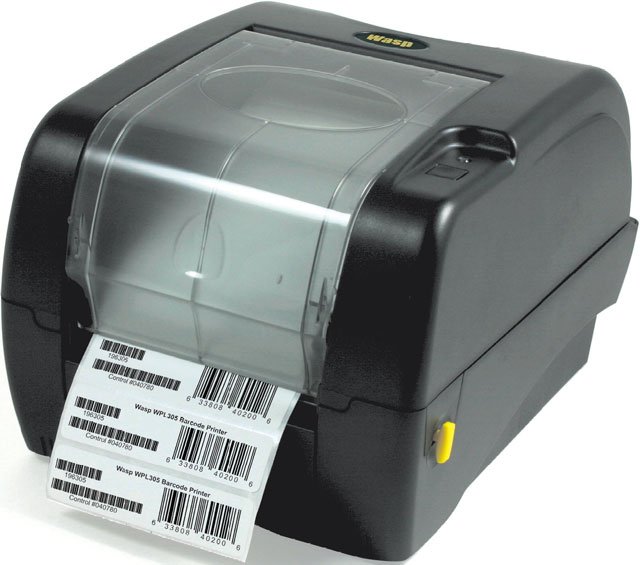

Wasp WPL305 – Barcode Label Printer – 203 dpi

Part Number: 633808402013
Model: WPL305
$759.00
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Desktop
Interface Options
Parallel, Serial (RS-232), USB
Print Resolution
203 dpi
Max Print Width
4 inch

Product Description:

  Barcode Label Printers, Wasp WPL305, Thermal Transfer, USB/RS-232 Serial/Centronics Parallel, 203 dpi, 7 ips, 4.25" Max Print Width, Desktop, Cutter, 8 MB SDRAM/4 MB Flash memory with SD expansion slot, Power Cable, Line Cord, USB Cable, Label Spindle Kit (Yellow Ribbon Rewind Spindle), WPL, ZPL, EPL emulation

Wasp WPL305 Barcode Label Printer Model Overview

The Wasp WPL305 Barcode Printer is designed for efficiency and versatility, making it an essential tool for any retail, medical, or office environment. With printing speeds of up to 5 inches per second and a crisp 203 dpi resolution, this desktop thermal printer ensures high-quality barcodes and labels with minimum downtime. Its compact design features easy media loading and multiple connectivity options, enabling seamless integration into any PC or notebook setup. Optional enhancements like a peel and present function and an additional cutter facilitate a variety of practical applications, ensuring this printer meets diverse printing needs.
Key Features
  • Thermal Transfer or Direct Thermal Printing
  • Print Speed: Up to 5 inches per second
  • Print Resolution: 203 dpi
  • Standard Memory: 2MB DRAM, 1MB Flash
  • Connectivity: Parallel, RS232 serial, & USB
  • Optional Enhancements: Peel and present, label cutter

Specifications
  • Printing Method: Direct Thermal and Thermal Transfer
  • Maximum Print Width: 4.25 inches (108mm)
  • Maximum Print Length: 39 inches (990mm)
  • Operation Temperature: 40°F to 104°F (5°C to 40°C)
  • Storage Temperature: 14°F to 140°F (-10°C to 60°C)
  • Dimensions: 12.4" L x 8.4" W x 7.4" H (314mm x 213mm x 188mm)
  • Net Weight: 7 lbs (3 kg)
  • Media Diameter (Max): 5" OD (127mm) with 1" core
  • Bar code Symbologies: Various including Code 39, Code 128, and 2D Barcode PDF-417
Wasp 633808402013 Barcode Label Printer Overview
WPL305 Desktop Barcode Printer The Wasp WPL305 is a compact, powerful desktop barcode printer designed to meet your light- to medium-duty barcode printing requirements. Its durable construction, speed, and dual printing technologies make the WPL305 a leader in its class and one of the most popular printers in the Wasp line. Perfect for printing 4x6 shipping labels . The WPL305 offers both direct thermal and thermal transfer printing in one printer, reducing the need for additional printers for different printing processes. With print speeds up to 5" inches per second at 203 dpi resolution, the WPL305 is a cost effective way to print barcode labels of all types, including shipping labels, stock labels, asset tags, medical labels, and location labels. Print speed is supported by 8 MB of SDRAM, 4 MB of FLASH memory and multiple connectivity options including parallel, USB, and RS232. ZPL, EPL, and WPL emulation are also included to ensure application compatibility. The WPL305 includes a 2-year manufacturer's warranty covering material defects. If you would like to upgrade this coverage, WaspProtect extended service plans cover accidental breakage and can provide coverage beyond the original warranty. Part Numbers: 633808402006, 633808402020, 633808402013
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
5 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.25"
Application/Usage:
Desktop
Print Technology:
Direct Thermal /Thermal Transfer
Memory
Standard Memory:
8 MB
Memory Technology:
SDRAM
Flash Memory:
4 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Cutter
Cutter:
Yes
Cutting Method:
Automatic
Media Types & Handling
Media Type:
Label
Media Size:
  • Custom Size - 4.40" x 984 ft
  • 4.40"
Media Sensor:
Reflective Media Sensor
Maximum Roll Diameter:
5"
Maximum Label Width:
4.40"
Maximum Label Length:
39"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
  • WPL
  • EPL
  • ZPL
Software
Operating System Supported:
  • Windows 8
  • Windows 7
  • Windows Vista
  • Windows XP (SP3)
  • Windows 2000
  • Windows Server 2012
  • Windows Server 2008
  • Windows Server 2003
Power Description
Power Source:
AC Supply
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
7.4"
Width:
8.4"
Weight (Approximate):
11.02 lb
Miscellaneous
Additional Information:
  • Compact Design
  • Easy Media Supplies loading
  • Font Rotations: 0, 90, 180, 270 degrees

Sensors:

  • Label Gap
  • Black Line
  • Head Open
  • Reflective (position adjustable)
Platform Supported:
PC
Certifications & Standards:
  • CE
  • FCC
  • TUV
  • UL
Country of Origin:
Taiwan
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0132017651248, 0633808402013
UPC: 132017651248, 633808402013
EAN: 0132017651248, 0633808402013
UNSPSC: 43212108
