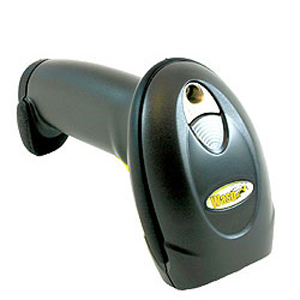

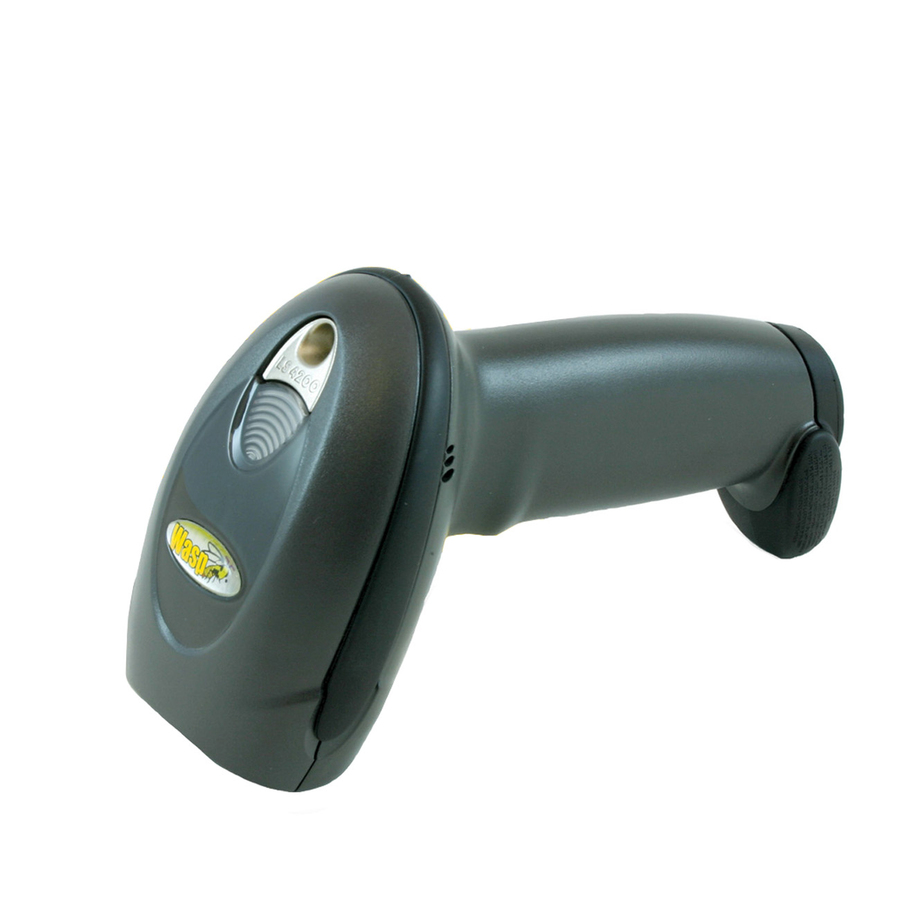

Wasp 633808121259 Barcode Scanner

Wasp 633808929602 Barcode Scanner A newer version of this item is available.
It is replaced by the Wasp 633808929602 Barcode Scanner.
Wasp WLS9500 - Laser 1D Barcode Scanner USB kit, includes scanner and USB cable.
Discontinued See Replacement
Add to Quote
Wasp WLS9500 Barcode Scanner Model Overview
The Wasp WLS9500 laser barcode scanner makes it simple to add barcode data to spreadsheets, word processing documents or databases. Just connect the WLS9500 to your PC by keyboard wedge (PS/2) or USB, and you're ready to begin scanning barcodes. The WLS9500 features a laser scan engine, for rapid, error-free data entry and a scan distance of up to 29" from the barcode. Easily read all common one-dimensional (1D) barcodes, including damaged symbols or stacked RSS barcodes. The WLS9500 offers high motion tolerance and a rastering scan pattern, making the scanner easy to use, even for beginners. Fast scan rate and aggressive decoding capabilities ensure that employees are able to scan items quickly, and spend less time keying in data. Designed to deliver superior performance in demanding environments, the WLS9500 is ideal for office, healthcare, and warehouse use. Pair the WLS9500 with the optional hands-free stand for rapid checkout in retail environments. The WLS9500 is built to provide a low total cost of ownership, featuring durable construction and the ability to withstand multiple 6' drops to concrete.
Wasp 633808121259 Barcode Scanner Overview

The Wasp WLS9500 handheld laser barcode scanner sets the standard in speed, performance and precision. Designed to provide reliable and rigorous use in office, retail, pharmaceutical, and warehouse applications, its durable design and ergonomic characteristics make it ideal for even harsh environments.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:
  • Codabar
  • Code 39
  • Code 39 Full ASCII
  • Code 11
  • Code 32
  • Code 93
  • Code 128(including UCC/EAN 128)
  • EAN/JAN-8 (plus supplements)
  • EAN/JAN-13 (plus supplements)
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • ISBN
  • Matrix 25
  • MSI/PLESSEY
  • UPC-A (plus supplements)
  • UPC-E (plus supplements)
  • China Postal Code
  • RSS-14
  • Telepen
Light Source:
Laser
Maximum Scan Resolution:
20 mil
Depth of Field:
  • 0" - 29"
Scan Pattern:
Linear
Cable Type Included:
USB
Interfaces/Ports
Host Interface:
USB
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Form Factor:
Handheld
Height:
6.7"
Width:
2.7"
Depth:
3.7"
Weight (Approximate):
6.40 oz
Miscellaneous
Package Contents:
  • WLS9500 Bar Code Reader
  • USB Cable
Additional Information:

USB Cable separate

Platform Supported:
PC
Certifications & Standards:

EMI/RFI:

  • FCC Part 15 Class B
  • ICES-003 Class B
  • European Union EMC Directive
  • Australian SMA
  • RoHS/WEEE

Electrical safety:

  • UL 1950
  • CSA C22.2 No. 950
  • EN60950/IEC950

Laser Classification:

  • CDRH Class II
  • IEC Class 2
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • WEEE
Item Numbers
GTIN: 0633808121259
UPC: 633808121259
EAN: 0633808121259
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Wasp 633808121259 Barcode Scanner is also known as 633808121259
