VMP LCD-1CB Accessory

Part Number: LCD-1CB
Model: Parts
Add to My Shopping List Add to Compare
$80.13

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Device Supported
Flat Panel Display
Maximum Load Capacity
25 lb
Minimum Screen Size Supported
10"
Maximum Screen Size Supported
23"

Product Description:

  LCD-1C Universal LCD Monitor Ceiling Mount (Black)
Explore all VMP Parts Accessories
Add to Quote
VMP LCD-1CB Accessory
VMP LCD-1CB Accessory
VMP LCD-1CB Accessory
VMP LCD-1CB Accessory VMP LCD-1CB Accessory VMP LCD-1CB Accessory

VMP Parts Accessory Model Overview

Products and parts from VMP.
VMP LCD-1CB Accessory Overview

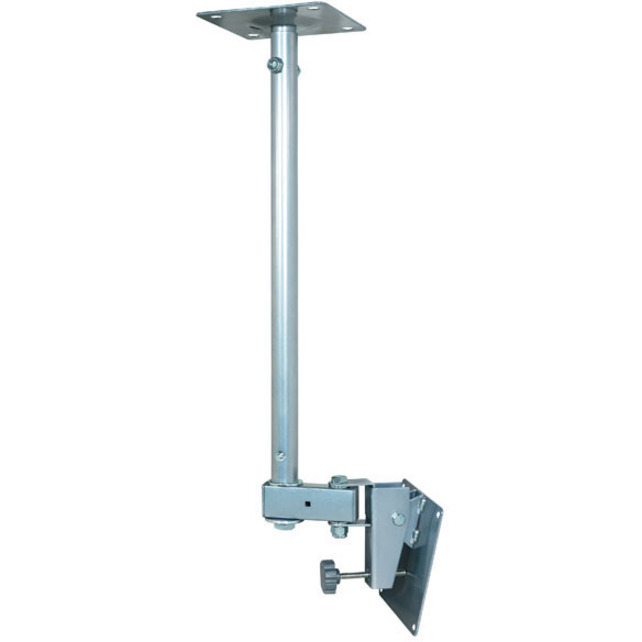

The LCD-1C is a versatile ceiling mount that can handle most flat panels 10" to 23". The LCD-1C allows perfect flat panel placement using adjustable mast extension, monitor rotation and tilt.

Product Information
Device Supported:
Flat Panel Display
Maximum Load Capacity:
25 lb
Minimum Screen Size Supported:
10"
Maximum Screen Size Supported:
23"
Physical Characteristics
Product Color:
Black
Mounting Pattern:
  • 75 x 75
  • 100 x 100
Height:
31.50"
Width:
4.50"
Length:
6.70"
Weight (Approximate):
3.10 lb
Miscellaneous
Package Contents:
  • Clip Based Cable Management System
  • 1 x Ceiling Plate
  • 1 x Extension Tube
  • 1 x Support Tube
  • 1 x Swivel Bracket
  • 1 x Mounting Plate
  • 1 x (M6 x P1.0) Nylon Nut
  • 1 x (3/8"-16UNC) Nylon Nut
  • 1 x (M6 x P1.0 x L35) Screw
  • 1 x (M12 x P1.75 x L65) Screw
  • 2 x (1/2" x 32mm) Washer
  • 1 x (1/4"- 20UNC x 50mm) Adjusting Screw
  • 2 x Cable Clips
  • 2 x End Plug
  • 2 x (3/8" x 19 x T1.6) Washer
  • 1 x (3/8"- 16UNC x L2") Screw
  • 1 x (1/4"- 20UNC x L3/8") Brake Screw
  • 1 x (5/16"- 18UNC x L1-1/2") Screw
  • 1 x (5/16"- 18UNC) Nylon Nut
  • 1 x M3 Allen Key
  • 4 x (M4 x P0.7 x L12) Screw
  • 4 x (M5 x P0.8 x L12) Screw
  • 4 x (5/16" x L2.5") Lag Screw
  • 4 x (8.3 x 19 x T1.6) Washer
Additional Information:
  • Mast telescopes 17" - 27" from the Ceiling
  • Rotates 240º at the Flat Panel
Compatibility:

LCD Monitor

Item Numbers
GTIN: 0673853013321
UPC: 673853013321
EAN: 0673853013321
UNSPSC: 31162313
The VMP LCD-1CB Accessory is also known as VMP-LCD1CB
