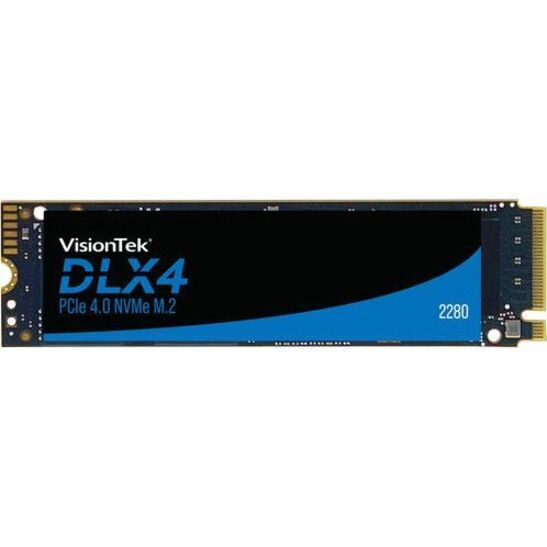

VisionTek 901564 Drive

VisionTek - Storage Enclosers, VisionTek, DLX4 512 GB Solid State Drive, M.2 2280 Internal, PCI Express NVMe (PCI Express NVMe 4.0 x4), Desktop PC Device Supported, 250 TB TBW, 4725 MB
  • SLC caching accelerates burst performance
  • 3D NAND
  • PCIe Gen4 x4
  • Global wear leveling
  • StaticDataRefresh technology ensures data integrity
  • Data shaping increases endurance
  • Intelligent garbage collection routines for advanced free space management
  • NVMe Deallocate function support (NVMe equivalent of TRIM command)
  • Host memory Buffer (HMB) support (OS dependent)
  • S.M.A.R.T. (Self-Monitoring, Analysis, and Reporting Technology) support
Read More
$85.78
Add to Quote
VisionTek Parts Computer Accessories Model Overview
Parts and accessories from VisionTek.
VisionTek 901564 Drive Overview

The VisionTek DLX4 M.2 NVMe SSD is designed to bring ultra-fast, reliable storage to PC users. With the shift from the hard disk drive to the solid state drive the VisionTek DLX4 M.2's provide a drop-in replacement option for the hard disk drive (HDD) for M.2 NVMe compatible systems. It delivers superior reliability, durability, performance and power efficiency - keeping your system working reliably in the toughest of conditions.

Conforming to the industry standard NVMe connector specification, these SSDs integrate easily into compatible infrastructures. The VisionTek DLX4 Pro M.2's provide high bandwidth and IOPS while efficiently managing write amplification. Employing M.2 NVMe SSDs in a compatible system enables faster boot times, quicker application load times, lower power consumption, and enhanced reliability.

Speed / Performance

Start your system in seconds, load files almost instantly, and accelerate the most demanding applications with VisionTek solid state drives. With the advancements in SSD technology, you can open a program and have it load immediately. Unlike a mechanical hard drive, an SSD has no moving parts ensuring faster performance, longer device life and more secure data.

Easy to Install

A solid state hard drive is easy to install, in just a few minutes time you can upgrade your internal system storage. No need to pay someone else, the installation of an SSD is quick and easy! Consult your system manufacturers documentation for system specific installation instructions.

Technical Information
Storage Capacity:
512 GB
Encryption Standard:
256-bit AES
Drive Performance
Maximum Read Transfer Rate:
4725 MB/s
Maximum Write Transfer Rate:
2525 MB/s
Random 4KB Read:
195000IOPS
Random 4KB Write:
289000IOPS
Endurance (TBW):
250 TB
Network & Communication
Wireless LAN:
No
Interfaces/Ports
Drive Interface:
PCI Express NVMe
Drive Interface Standard:
PCI Express NVMe 4.0 x4
Physical Characteristics
Drive Type:
Internal
Form Factor:
M.2 2280
Width:
0.9"
Length:
3.1"
Weight (Approximate):
0.25 oz
Miscellaneous
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Device Supported:
Desktop PC
Country of Origin:
Mexico
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN: 0810078051626
UPC: 810078051626
EAN: 0810078051626
UNSPSC: 43201830
