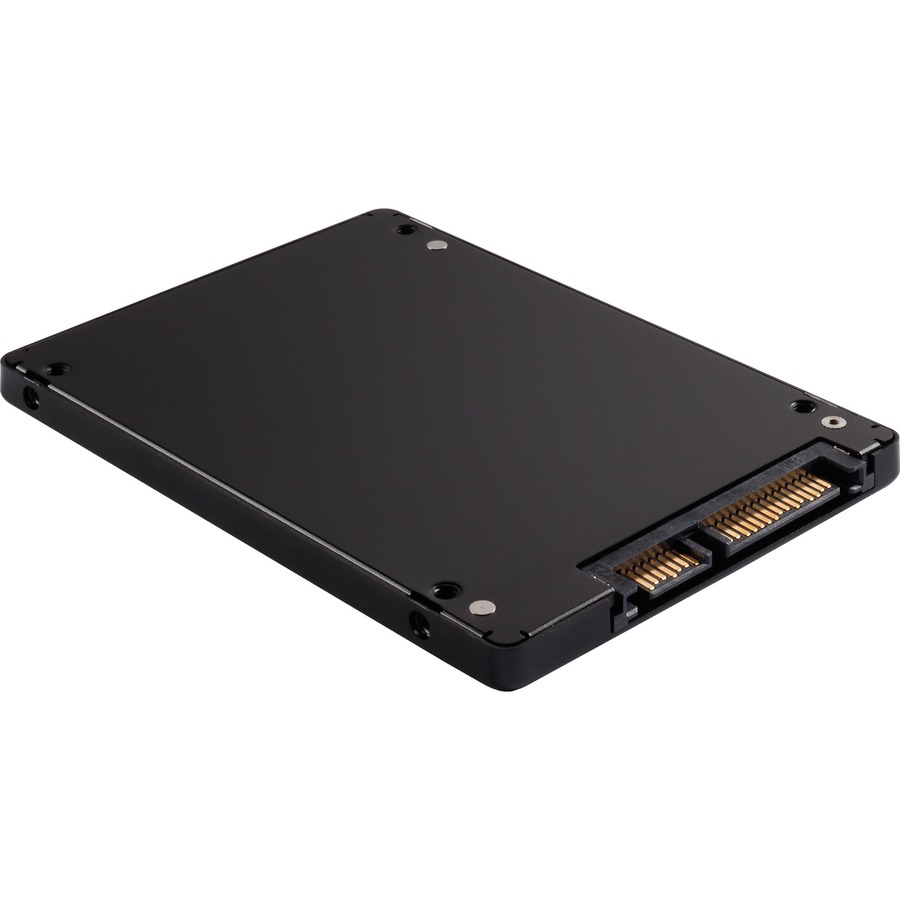

VisionTek 901298 Drive

VisionTek - Storage Enclosers, VisionTek, PRO ECS 250 GB Solid State Drive, 2.5" Internal, SATA (SATA

Is power and energy-efficient to ensure maximum reliability
Makes frequent file access and retrieval easy and convenient
With a capacity of 250 GB, you have large storage space for all your documents and data
The high-read speed of 565 MB/s maximizes system performance and saves time while you are doing complex tasks
With the high-write speed of 520 MB/s, get a quick response when updating or transferring files
Have data stored faster with SATA/600 interface that optimizes burst performance
2.5" form factor for added reliability and dependability

Need a different version? See all VisionTek Parts Computer Accessories

$104.37

Chat Now for Qty Discount

Add to Quote

Overview

VisionTek Parts Computer Accessories Model Overview

Parts and accessories from VisionTek.

VisionTek 901298 Drive Overview

The VisionTek PRO ECS Series 2.5" 7mm SSD, out Enterprise line, is designed to bring ultra-fast, reliable storage to PC users. With the shift from the hard disk drive to the solid state drive our PRO ECS Series SSDs are a drop-in replacement option for a hard disk drive (HDD). It delivers superior reliability, durability, power efficiency and performance - keeps your system working reliably in the toughest of conditions.

Conforming to the industry standard SATA connector specification, these SSDs integrate easily into existing storage infrastructures. The VisionTek PRO ECS Series SSDs provide high bandwidth and IOPS while efficiently managing write amplification. Employing SSD technology in a system enables faster boot times, quicker application load times, lower power consumption, and enhanced reliability.

FEATURES

Silicon Motion SM2258 controller
SLC caching accelerates burst performance
StaticDataRefresh technology ensures data integrity
Intelligent garbage collection routines for advanced free space management
TRIM command support (OS dependent)
S.M.A.R.T. (Self-Monitoring, Analysis, and Reporting Technology) support
LDPC hard and soft decode
Internal flash RAID-like parity scheme provides an additional layer of error correction
SATA 3.1 Compliant SATA 6Gb/s - backwards compatible with SATA 3Gb/s and 1.5Gb/s
ATA8-ACS3 command set compliant
Industry-standard 512-byte sector support
Temperature sensor
Native Command Queuing (NCQ) support with 32 command queue depth
Hot plug-capable
RoHS-compliant package
DRAM support - 16-bit wide interface

Detailed Specs

Technical Information

Storage Capacity:

250 GB

Drive Performance

Maximum Read Transfer Rate:

565 MB/s

Maximum Write Transfer Rate:

520 MB/s

Network & Communication

Wireless LAN:

Interfaces/Ports

Drive Interface:

SATA

Drive Interface Standard:

SATA/600

Physical Characteristics

Drive Type:

Internal

Form Factor:

2.5"

Hot Pluggable:

Yes

Height:

0.3"

Miscellaneous

Environmentally Friendly:

Yes

Environmental Certification:

RoHS

Country of Origin:

Mexico

Warranty

Limited Warranty:

3 Year

Item Numbers

GTIN: 0784090039415

UPC: 784090039415

EAN: 0784090039415

UNSPSC: 43201830
