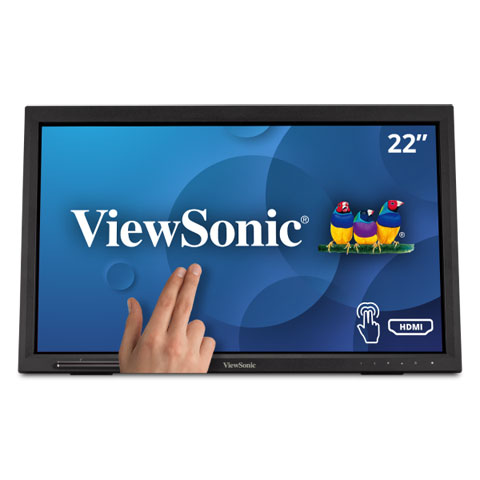

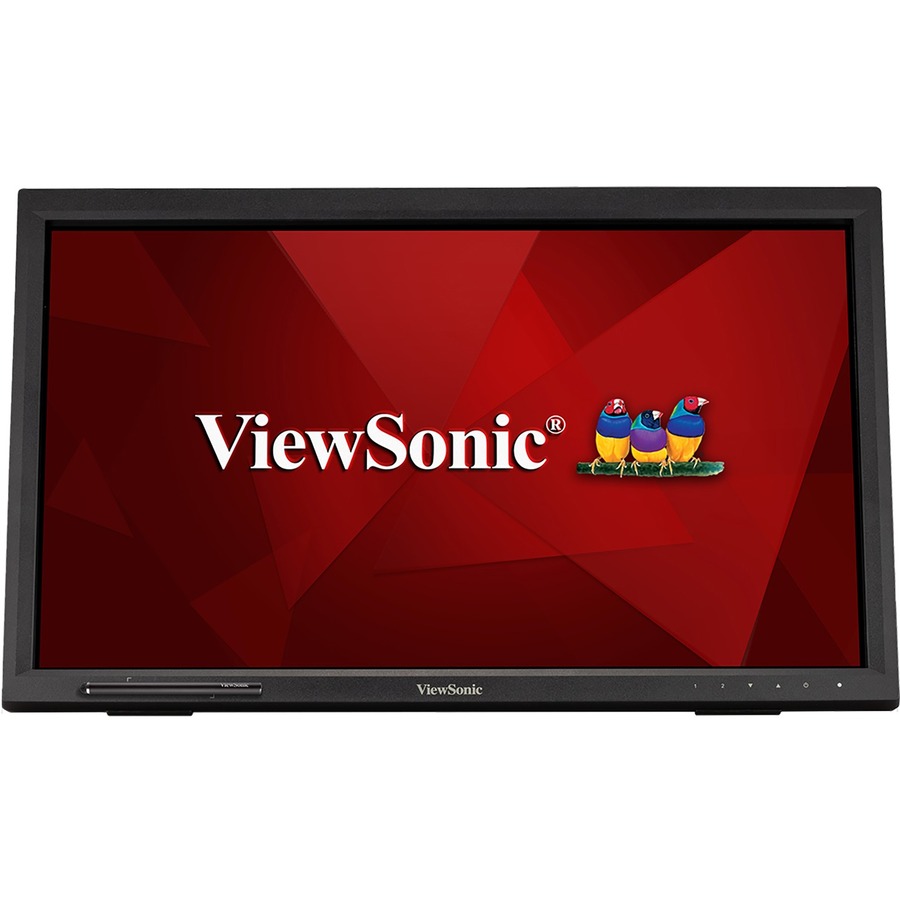

ViewSonic TD2223 Monitor

Part Number: TD2223
Model: Monitors
to get Free Ground Shipping on your order.
Add to My Shopping List Add to Compare
$395.00
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Screen Size Class
22"
Viewable Screen Size
22"
Screen Mode
Full HD
Panel Technology
Twisted nematic (TN)

Product Description:

  Monitors, ViewSonic TD2223, 22" IR 10-point Touch Display, 1920x1080 Full HD resolution.
Explore all ViewSonic Monitors Monitors
Add to Quote
ViewSonic TD2223 Monitor
ViewSonic TD2223 Monitor
ViewSonic TD2223 Monitor
ViewSonic TD2223 Monitor
ViewSonic TD2223 Monitor
ViewSonic TD2223 Monitor
ViewSonic TD2223 Monitor ViewSonic TD2223 Monitor ViewSonic TD2223 Monitor ViewSonic TD2223 Monitor ViewSonic TD2223 Monitor ViewSonic TD2223 Monitor
Full specifications (PDF)

ViewSonic Monitors Monitor Model Overview

ViewSonic helps the world perceive the difference between the ordinary and the inspiring with a 30-year history of inventing award-winning products and services. ViewSonic provides the broadest range of cutting-edge display solutions for business, pleasure, and education. Thanks to some of the greatest panel technologies, astounding resolutions, and remarkable color accuracy, ViewSonic monitors provide spectacular visuals. To improve comfort and productivity, tilt, pivot, and swivel the chair. Users receive an optimal fit for their individual apps, surroundings, and personal demands thanks to variable height, screen angle, and other settings. Curved, ultra-wide, or a combination of the two. ViewSonic displays are available in a variety of sizes and forms, all of which are designed to help people work smarter, quicker, and more efficiently, regardless of the workflow.
ViewSonic TD2223 Monitor Overview

Great for public kiosks, POS displays, and other retail and commercial applications, the ViewSonic® TD2223 is a 22" touch display with 10-point IR touch technology that lets users pinch, zoom and swipe for fast and intuitive navigation. With Full HD 1920x1080 resolution, 1000:1 static contrast ratio and 7H screen hardness, the TD2223 delivers sharp and bright images combined with durability for high-traffic applications. Flexible connectivity options include HDMI, VGA, DVI, and a USB hub to connect your peripherals and accessories. VESA-mount compatibility offers additional convenience and flexibility for 3rd party stands and mounts. What's more, ViewSonic's exclusive ViewMode feature provides intuitive presets that deliver optimized screen performance in different applications. In addition, Flicker-Free technology and a Blue Light Filter help to eliminate eyestrain from extended viewing periods for improved productivity. Whether in retail or deployed in a high-traffic commercial setting, its scratch-resistant surface stands up to heavy use and safeguards its high quality touch experience. Combine this display with ViewSonic's Android and Windows media players for a perfect kiosk solution.

Full specifications (PDF)
Technical Information
Screen Size Class:
22"
Viewable Screen Size:
22"
Screen Mode:
Full HD
Panel Technology:
Twisted nematic (TN)
Response Time:
5 ms GTG
Aspect Ratio:
16:9
Horizontal Viewing Angle:
170°
Vertical Viewing Angle:
160°
Backlight Technology:
LED
Features:
  • Anti-glare
  • 7H Surface Hardness
  • Security Lock
  • On-screen Display (OSD)
  • Scratch Resistant
Horizontal Frequency:
24 kHz to 82 kHz
Vertical Frequency:
50 Hz to 75 Hz
Stand Adjustments:
Tilt
Curved Screen:
No
Video
Maximum Resolution:
1920 x 1080
Standard Refresh Rate:
75 Hz
Color Supported:
16.7 Million Colors
Native Contrast Ratio:
1,000:1
Brightness:
250 Nit
Audio
Speakers:
Yes
Touchscreen Information
Touchscreen Type:
Infrared
Multi-touch Screen:
Yes
Number of Simultaneous Touchpoints:
10
Interfaces/Ports
DVI:
Yes
HDMI:
Yes
USB:
Yes
VGA:
Yes
Number of HDMI Inputs:
1
Number of USB Ports:
3
Built-in Devices
Built-in Devices:
USB Hub
Power Description
Operating Power Consumption:
19 W
Physical Characteristics
VESA Mount Compatible:
Yes
VESA Mount Standard:
100 x 100
Color:
Black
Height:
12.5"
Width:
20.5"
Depth:
2.4"
Height with Stand:
13.10"
Width with Stand:
20.50"
Depth with Stand:
4"
Weight (Approximate):
8.60 lb
Weight with Stand (Approximate):
9.90 lb
Miscellaneous
Package Contents:
  • TD2223 - 22" Display, 1920 x 1080 Resolution
  • Power Cable
  • USB Type C cable
  • USB Type B Uplink Cable
  • Quick Start Guide
Platform Supported:
  • PC
  • Mac
Energy Star:
Yes
Environmentally Friendly:
Yes
Environmental Certification:
  • cTUVus
  • EPEAT Silver
Country of Origin:
China
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0766907008647
UPC: 766907008647
EAN: 0766907008647
UNSPSC: 43211903
