Full specifications (PDF)
Projection Method:
- Front
- Ceiling

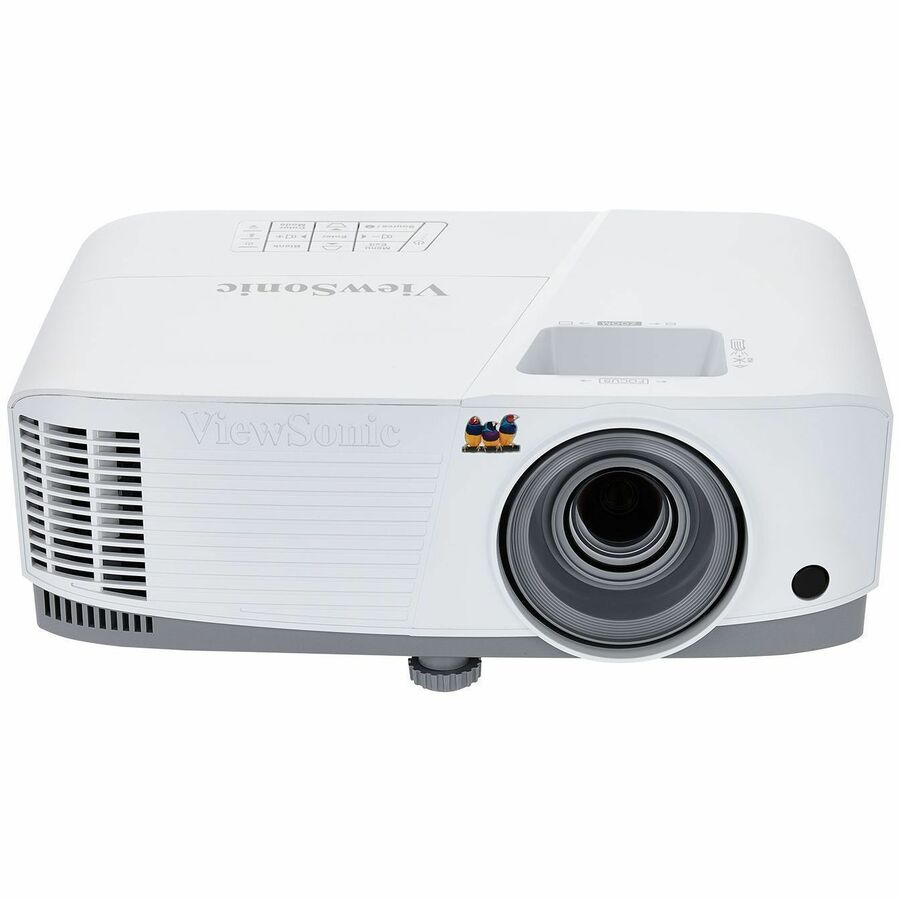

ViewSonic PA504W Projector
Part Number:
PA504W
Model:
Projectors
ViewSonic Projectors Projector Model Overview
The ViewSonic comprehensive line of projection solutions shine bright in any context, whether you require out-of-the-box interactive projection for the classroom or conference room, ProAV power for bigger installations, or the finest in 1080p and 4K home cinema projectors. ViewSonic 4K home theater projectors provide beautiful Ultra HD resolution and outstanding cinematic color - all at an affordable price - for a fantastic movie experience from the comfort of your own home. The current generation of solid-state LED and laser projectors produce vibrant colors and have a light source life of 30,000 hours or more. Integrated smart Wi-Fi networking allows you to stream and binge from your favorite video sources, while voice control is available via Amazon Alexa and Google Assistant.
ViewSonic PA504W Projector Overview
Upgrade your projector setup with the ViewSonic®PA504W high-brightness projector. Featuring a versatile 1.21 - 1.57 throw ratio, this projector can be easily installed onto most existing projector mounts. Plus, with 4,000 ANSI lumens of brightness, audiences can enjoy stunning clarity - even in environments with strong ambient lighting. A Texas instruments .65" DMD chip delivers a high native contrast ratio to make images clearer and more compelling. Each PA504W projector features a sealed optical engine that reduces maintenance as well as state-of-the-art DLP® technology that enables users to enjoy consistent colors and enhanced clarity over an extended period. Connect your projector to Crestron, AMX, PJ Link, ATEN, Extron or other LAN control systems for streamlined device management. Dual HDMI ports enable users to easily switch between content sources. Add an optional ViewSonic WPD-700 Wireless Screen Casting Kit to the projector's USB-A port to make casting content both faster and cable-free.
Technical Information
Display & Graphics
Native Resolution:
1280 x 800
Maximum Resolution:
1920 x 1080
Native Aspect Ratio:
16:10
Graphic Mode:
WXGA
Projection Lens
Minimum Focal Length:
16.88 mm
Maximum Focal Length:
21.88 mm
Minimum Diagonal Image Size:
30"
Maximum Diagonal Image Size:
25 ft
Optical Zoom:
1.3x
Minimum Projection Distance:
30.71"
Maximum Projection Distance:
33.27 ft
Lamp
Number of Lamps:
1
Lamp Type:
UHP
Lamp Power:
200 W
Normal Mode Lamp Life:
20000 Hour
Economy Mode Lamp Life:
30000 Hour
Standard Mode Brightness:
4000 lm
Color Supported:
1.07 Billion Colors
Throw Ratio:
1.21 to 1.57102.76")
Contrast Ratio:
22,000:1
Minimum Vertical Sync:
23 Hz
Maximum Vertical Sync:
120 Hz
Video
Video Signal Format:
- NTSC
- PAL
- SECAM
Video Signal Standard:
HDTV
Output Scan Format:
1080p
Audio
Speaker Included:
Yes
Network & Communication
Wireless LAN:
Yes
Interfaces/Ports
HDMI:
Yes
USB:
Yes
Network (RJ-45):
Yes
Power Description
Operating Power Consumption:
280 W
Physical Characteristics
Product Color:
White
Color Family:
White
Form Factor:
- Wall Mountable
- Ceiling Mountable
Height:
4.3"
Width:
11.6"
Depth:
8.6"
Weight (Approximate):
5.14 lb
Miscellaneous
Application/Usage:
- Education
- Business
- Presentation
- Meeting
- Class Room
Package Contents:
- Projector
- Power Cable
- Remote Control
- Quick Start Guide
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
China
TAA Compliant:
No
Warranty
Limited Warranty:
3 Year
Additional Warranty Information:
Three-year limited warranty on parts and labor, 1-year limited warranty on lamp, 1st year free Express Exchange® service**
Item Numbers
GTIN:
0766907026306
UPC:
766907026306
EAN:
0766907026306
UNSPSC:
45111609
