Full specifications (PDF)
Video Wall Compatible:
Yes
ViewSonic LD135-151 Digital Signage Display
Part Number:
LD135-151
Model:
Digital Displays
ViewSonic Digital Displays Digital Signage Display Model Overview
ViewSonic digital displays provide with everything you need for brilliant digital signage right out of the box, including elegant thin-bezel designs, outstanding resolutions, and simple installation. The process of physical deployment, content generation, and message transmission could not be simpler. For public, retail, and transit contexts, ViewSonic commercial displays create almost seamless, high-impact video walls. These displays deliver clear, colorful pictures with exceptional sound and multimedia performance, thanks to Full HD and 4K Ultra HD resolutions, high brightness, broad viewing angles, and twin stereo speakers.

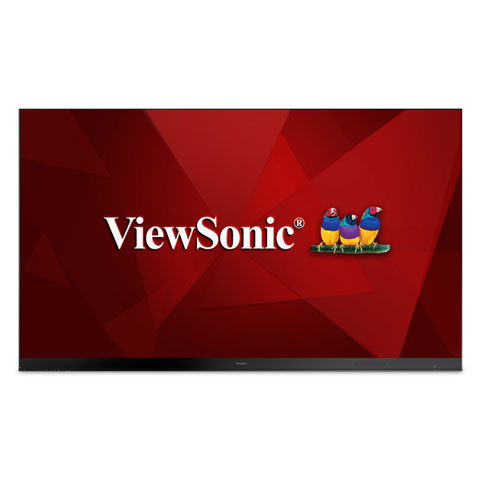

ViewSonic LD135-151 Digital Signage Display Overview
The ViewSonic® LD135-151 is a premium all-in-one direct view LED commercial display. With a huge 135" screen size, the LD135-151 is built to impress as a centerpiece in any conference room, boardroom, or lobby. Along with its immense screen size, this display delivers stunning visuals with Full HD resolution, 1.5mm fine pixel pitch, 600-nit high brightness, 4,440Hz ultra-fast refresh rate, and 120% Rec.709 wide color gamut. Integrated ViewBoard® Cast screen sharing software* (along with optional ViewSonic vCastSender app), enables both on-site and online attendees to participate in video conferences and simultaneously share content. Equipped with twin dual-core processors, 4GB RAM, and 32GB of internal memory, the LD135-151 can play multimedia from internal storage or a USB flash drive 24 hours a day, seven days a week. And with remote configuration and content management system support, the ViewSonic LD135-151 is also suitable for a wide array of diverse signage applications.
*Chrome, Android, Windows, Mac OS, and iOS compliant
Technical Information
Memory
Standard Memory:
4 GB
Display & Graphics
Viewable Screen Size:
11.25 ft
Display Screen Type:
LCD
Display Resolution:
1920 x 1080
Pixel Pitch:
61.4 mil
Backlight Technology:
Direct View LED
Video
Scan Format:
1080p
Brightness:
600 Nit
Color Gamut:
120% BT.709
Network & Communication
Ethernet:
Yes
Wireless LAN:
Yes
Interfaces/Ports
USB:
Yes
HDMI:
Yes
Serial:
Yes
Number of USB 2.0 Ports:
3
Number of USB 3.0 Ports:
1
Number of HDMI Inputs:
2
Number of HDMI Outputs:
2
Software
Operating System:
Android 8.0 Oreo
Power Description
Input Voltage:
120 V AC
Physical Characteristics
Height:
71.1"
Width:
118.9"
Depth:
1.4"
Weight (Approximate):
297.62 lb
Miscellaneous
Package Contents:
- Premium LD135-151 Digital Signage Display
- Power Cord
- Remote Control
- QSG
- 1 x Wall-Mount
- 1 x Maintenance Tool (LD-MK-001)
- Spare Modules (LED PCB x 2)
Certifications & Standards:
cTUVus
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
China
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN:
0766907008784
UPC:
766907008784
EAN:
0766907008784
UNSPSC:
43211902
