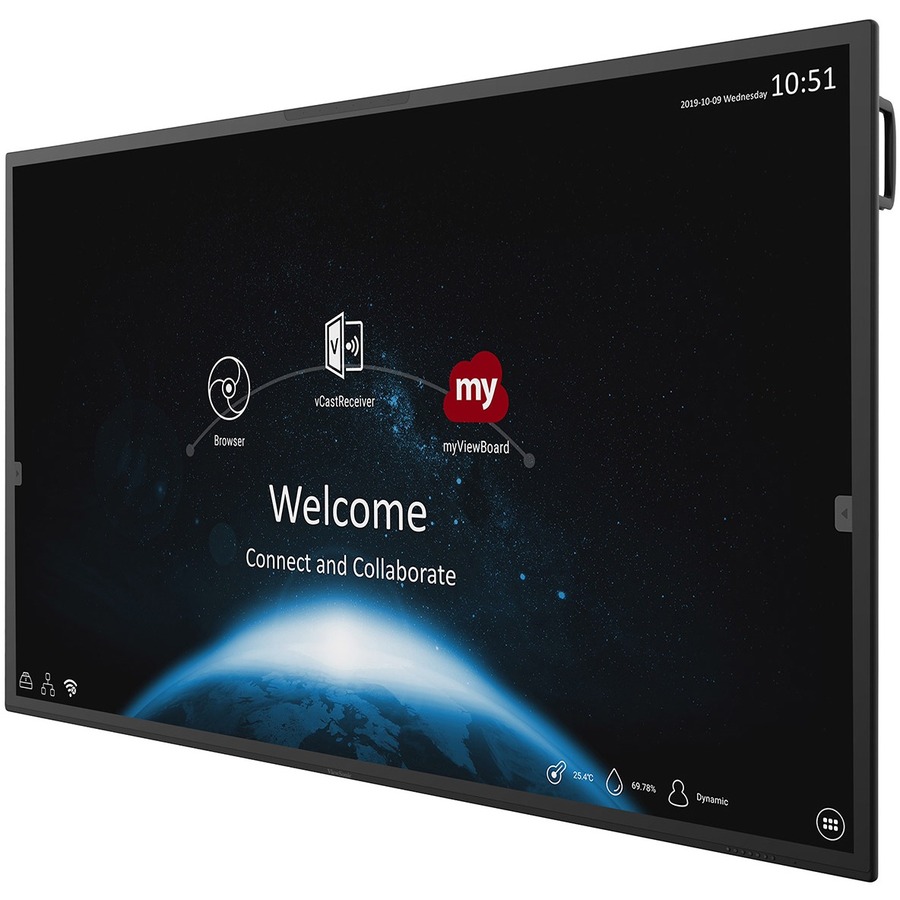

ViewSonic IFP8670 Touchscreen

Part Number: IFP8670
Model: ViewBoard Interactive

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Screen Size
85.6"
Display Screen Type
LCD
Backlight Technology
LED
Screen Mode
4K UHD

Product Description:

  Touchscreens, ViewSonic IFP8670, 86" ViewBoard 4K Interactive Flat Panel with PCAP Technology,3840 x 2160 resolution.

ViewSonic ViewBoard Interactive Touchscreen Model Overview

ViewSonic ViewBoard interactive flat panel displays are the best choice for the ultimate digital whiteboard solution. ViewBoard displays make presentations, brainstorming, and decision-making easier with content sharing and interactive touch at your fingertips. An extraordinarily natural and responsive handwriting experience is provided by the very accurate interactive screen. Multiple users may concurrently write or draw on the massive ViewBoard panel using their fingers, styluses, or both. Over wireless or cable networks, ViewBoard Cast software allows content from mobile devices to be streamed to a ViewSonic display.
ViewSonic IFP8670 Touchscreen Overview

MICROSOFT-CERTIFIED WINDOWS COLLABORATION DISPLAY

Certified by, and created in partnership with Microsoft, this Windows Collaboration Display is the ultimate digital whiteboard for your Microsoft workspace. A Skype-certified microphone array and camera deliver a top-notch Microsoft Teams experience.

HIGH-PERFORMANCE 4K TOUCHSCREEN

Perfect for heavy usage in classrooms or meeting rooms, this display features an optically bonded tempered glass screen for enhanced durability and clarity. 20-point PCAP (projected capacitive) touch technology delivers an ultra-smooth and natural handwriting experience, while 4K Ultra HD resolution provides incredibly vivid and lifelike images.

SLEEK AND SLIM DESIGN

Sleek, slim, and less than an inch thick, this premium display looks as good as it performs. An edge-to-edge glass screen and bezel-less design enhance interactivity and viewing.

CONVENIENT USB TYPE-C

Meetings and presentations start fast with single cable USB Type-C connectivity. Users can simply walk into a room, plug in their device, and immediately begin sharing info on the ViewBoard display. In addition to fast data, audio, and video transfer, USB Type-C also provides quick 60W charging and touch pass-through over a single cable.

IMPROVED COLLABORATION AND PRODUCTIVITY

This display is equipped with the latest collaboration technologies to boost productivity. A 4K Ultra HD conference camera and integrated microphone array delivers stunning resolution, as well as clear speech and sound during video conferences. An included active pen provides multi-level pressure sensitivity for an accurate and natural writing experience.

SMARTER MEETING ROOMS

An integrated Azure IoT sensor hub connects this display to the Azure Digital Twins cloud platform. This allows you to measure environmental data, room user habits, and more, to increase efficiency and productivity.

OPTIONAL SLOT-IN PC

Based on your specific collaboration needs, you can choose an optional ViewSonic slot-in PC to provide additional computing power and advanced features. Options include Intel Core i5 and i7 processors, as well as Windows 10 Pro and Zoom Room systems.

MYVIEWBOARD™ ANNOTATION SOFTWARE

myViewBoard digital whiteboarding software combines enterprise-level security with cloud-based portability and annotation tools to enhance the way your team connects and collaborates. Convenient features include secure single sign-on to your favorite cloud drives, easy conversion of common office files, QR code sharing, and much more.

VIEWBOARD CAST CONTENT SHARING SOFTWARE

ViewBoard Cast™ enables content to be streamed from mobile devices onto the display over wireless or cable networks. Multiple users can simultaneously annotate content (such as documents, cloud files, multimedia, etc.) on their devices in real time, and then stream and share that content onto the ViewSonic large format display.

IMMERSIVE STEREO SOUND

Designed with dual 10W stereo speakers and a 15W subwoofer, this display combines incredible room-filling sound with amazing screen performance for an immersive multimedia experience.

Display & Graphics
Screen Size:
85.6"
Display Screen Type:
LCD
Backlight Technology:
LED
Screen Mode:
4K UHD
Screen Resolution:
3840 x 2160
Scan Format:
2160p
Aspect Ratio:
16:9
Response Time:
8 ms
Contrast Ratio:
  • 1,200:1
  • 5,000:1
Brightness:
350 Nit
Horizontal Viewing Angle:
178°
Vertical Viewing Angle:
178°
Touchscreen Information
Touchscreen:
Yes
Multi-touch Screen:
Yes
Number of Touch Points:
20
Touchscreen Technology:
Projected Capacitive
Processor & Chipset
Processor Manufacturer:
ARM
Processor Type:
Cortex A73
Processor Speed:
1.20 GHz
Processor Core:
Quad-core (4 Core)
Memory
Standard Memory:
4 GB
Audio
Speakers:
Yes
Microphone:
Yes
RMS Output Power:
35 W
Camera
Webcam:
Yes
Network & Communication
Ethernet:
Yes
Interfaces/Ports
HDMI:
Yes
Number of HDMI Inputs:
1
Number of HDMI Outputs:
1
Total Number of USB Ports:
5
Number of USB 3.0 Ports:
2
USB:
Yes
Number of Network (RJ-45) Ports:
1
Network (RJ-45):
Yes
DisplayPort:
Yes
Serial:
Yes
Power Description
Input Voltage:
  • 120 V AC
  • 230 V AC
Power Consumption:
600 W
Physical Characteristics
VESA Mount Compatible:
Yes
VESA Mount Standard:
800 x 600
Height:
45.1"
Width:
77.2"
Depth:
3.3"
Weight (Approximate):
160.94 lb
Miscellaneous
Package Contents:
  • ViewBoard IFP8670 Collaboration Display
  • IoT Sensor
  • Camera
  • 2 x ActivePen
  • Pen Charger
  • Power Cable
  • HDMI Cable
  • USB Cable
  • Remote Control with Batteries
  • Camera Plate
  • 8 x M8 Screw
  • Quick Start Guide
Energy Star:
Yes
Environmentally Friendly:
Yes
Environmental Certification:
  • WEEE
  • ErP
  • RoHS
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0766907001990
UPC: 766907001990
EAN: 0766907001990
UNSPSC: 45111902
