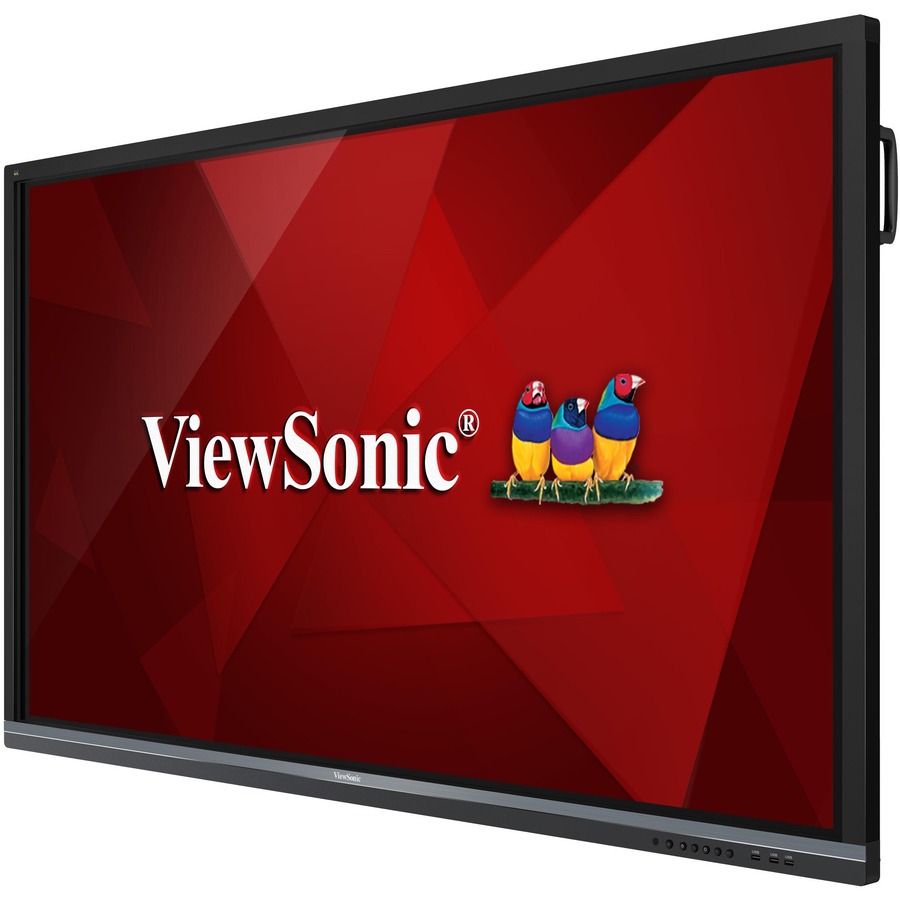

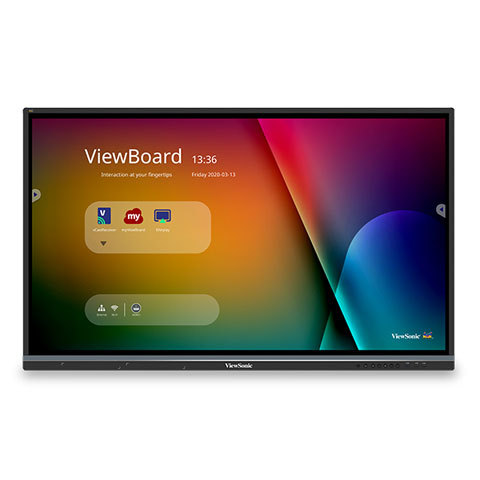

ViewSonic IFP8650 Touchscreen

Part Number: IFP8650
Model: ViewBoard Interactive
to get Free Ground Shipping on your order.
Add to My Shopping List Add to Compare
$5,434.91
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Screen Size
86"
Display Screen Type
LCD
Backlight Technology
LED
Screen Mode
4K UHD

Product Description:

  Touchscreens, ViewSonic IFP8650, 86iewBoard 4K Ultra HD Interactive Flat Panel
Explore all ViewSonic ViewBoard Interactive Touchscreens
Add to Quote
ViewSonic IFP8650 Touchscreen
ViewSonic IFP8650 Touchscreen
ViewSonic IFP8650 Touchscreen ViewSonic IFP8650 Touchscreen
Full specifications (PDF)

ViewSonic ViewBoard Interactive Touchscreen Model Overview

ViewSonic ViewBoard interactive flat panel displays are the best choice for the ultimate digital whiteboard solution. ViewBoard displays make presentations, brainstorming, and decision-making easier with content sharing and interactive touch at your fingertips. An extraordinarily natural and responsive handwriting experience is provided by the very accurate interactive screen. Multiple users may concurrently write or draw on the massive ViewBoard panel using their fingers, styluses, or both. Over wireless or cable networks, ViewBoard Cast software allows content from mobile devices to be streamed to a ViewSonic display.
ViewSonic IFP8650 Touchscreen Overview
Featuring 4K Ultra HD resolution and an immersive 20-point touch screen, the ViewSonic® ViewBoard® IFP8650 delivers incredible collaborative capabilities for large conference rooms, classrooms, and even ballrooms. With astonishing 20-point simultaneous touch capabilities and pre-installed ViewSonic vBoard® annotation software, this 86" interactive flat panel lets multiple users write or draw on the screen with their fingers and styluses. With a built-in quad-core processor, as well as versatile connectivity options including multiple HDMI, VGA, RS232, RJ45, and USB ports, this display provides powerful computing for annotation and multimedia playback without the need for a PC. This Energy Star certified display delivers optional slot-in PC capability for more computing-intensive interactive applications. The IFP8650 features a VESA-compatible design and can be placed on a wall mount, or on an optional trolley cart for flexible installation.

Full specifications (PDF)
Display & Graphics
Screen Size:
86"
Display Screen Type:
LCD
Backlight Technology:
LED
Screen Mode:
4K UHD
Screen Resolution:
3840 x 2160
Scan Format:
2160p
Aspect Ratio:
16:9
Response Time:
8 ms
Contrast Ratio:
1,200:1
Brightness:
350 Nit
Horizontal Viewing Angle:
178°
Vertical Viewing Angle:
178°
Tempered Glass:
Yes
Touchscreen Information
Touchscreen:
Yes
Multi-touch Screen:
Yes
Number of Touch Points:
20
Touchscreen Technology:
Infrared (IrDA)
Processor & Chipset
Processor Manufacturer:
ARM
Processor Type:
Cortex A53
Processor Speed:
1.20 GHz
Processor Core:
Quad-core (4 Core)
Memory
Standard Memory:
2 GB
Audio
Speakers:
Yes
Number of Speakers:
2
RMS Output Power:
32 W
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Wireless LAN:
Yes
Interfaces/Ports
HDMI:
Yes
Number of HDMI Inputs:
3
Number of HDMI Outputs:
1
Total Number of USB Ports:
8
Number of USB 2.0 Ports:
3
Number of USB 3.0 Ports:
3
USB:
Yes
Number of Network (RJ-45) Ports:
1
Network (RJ-45):
Yes
Audio Line In:
Yes
Audio Line Out:
Yes
Number of VGA Ports:
1
VGA:
Yes
Composite Video:
Yes
DisplayPort:
Yes
S/PDIF Out:
Yes
Software
Operating System Platform:
Android
Operating System:
Android 5.1 Lollipop
Software Included:
vBoard Software
Power Description
Input Voltage:
  • 120 V AC
  • 230 V AC
Power Consumption:
500 W
Physical Characteristics
Color:
Black
VESA Mount Compatible:
Yes
VESA Mount Standard:
800 x 600
Height:
46.7"
Width:
78.3"
Depth:
3.9"
Weight (Approximate):
171.96 lb
Miscellaneous
Package Contents:
  • ViewBoard IFP8650 Collaboration Display
  • VGA cable (5 meters)
  • 4 x Power cable (3 meters)
  • Remote control
  • USB cable for touch control (5 meters)
  • Audio cable (5 meters)
  • AV cable
  • 3 x Touching pen
  • ViewSonic CD-ROM Wizard
  • Quick Start Guide
  • RS232 adapter
  • Camera plate
Environmentally Friendly:
Yes
Environmental Certification:
  • cTUVus
  • RoHS
  • ErP
  • WEEE
Country of Origin:
China
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0766907900415
UPC: 766907900415
EAN: 0766907900415
UNSPSC: 45111902
